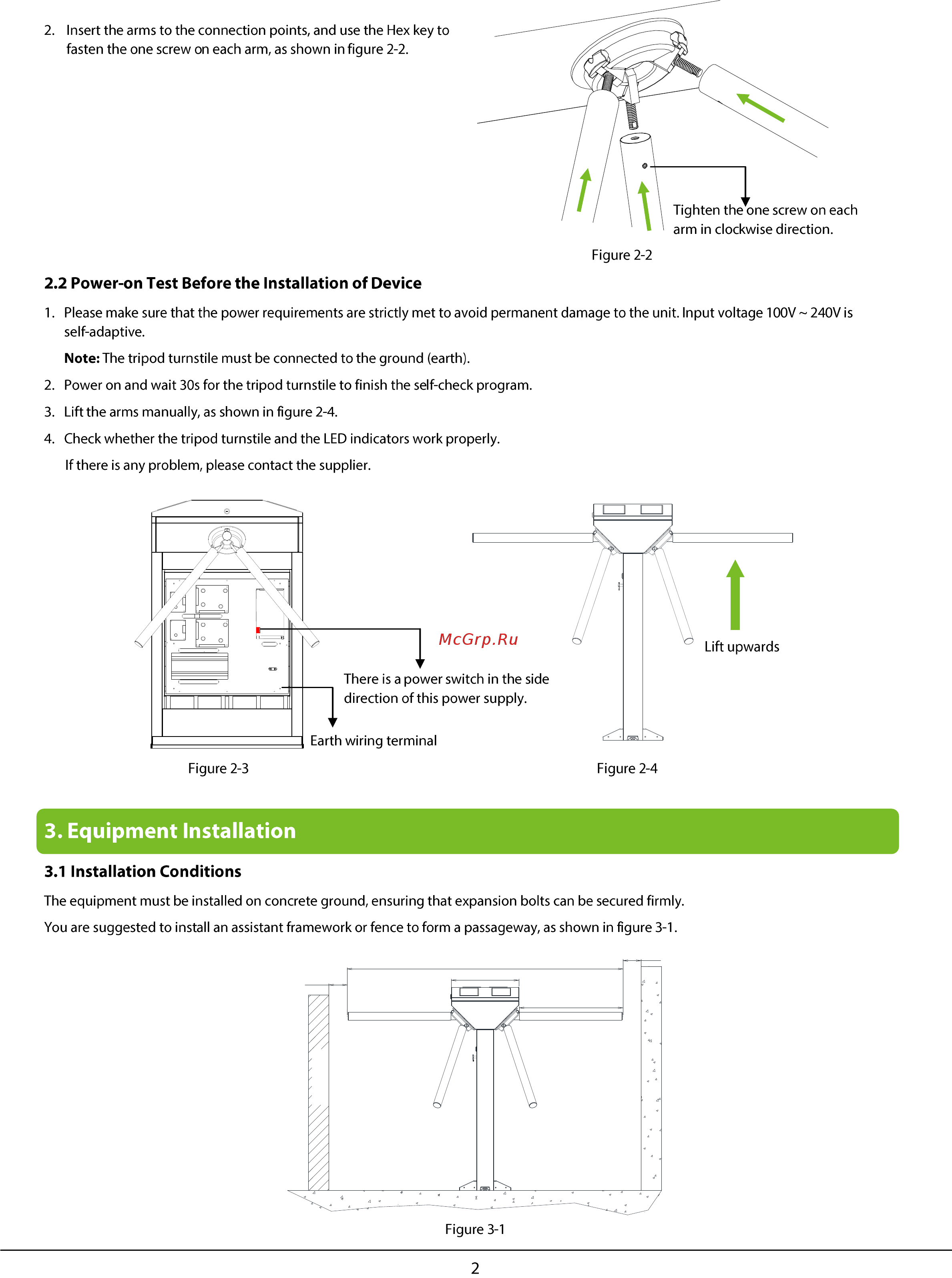

2 Insert the arms to the connection points and use the Hex key to fasten the one screw on each arm as shown in figure 2 2 2 2 Power on Test Before the Installation of Device 1 Please make sure that the power requirements are strictly met to avoid permanent damage to the unit Input voltage 100V 240V is self adaptive Note The tripod turnstile must be connected to the ground earth 2 Power on and wait 30s for the tripod turnstile to finish the self check program 3 Lift the arms manually as shown in figure 2 4 4 Check whether the tripod turnstile and the LED indicators work properly If there is any problem please contact the supplier 3 Equipment Installation 3 1 Installation Conditions The equipment must be installed on concrete ground ensuring that expansion bolts can be secured firmly You are suggested to install an assistant framework or fence to form a passageway as shown in figureS 1 Figure 3 1 2
