Zanussi FCS825C [19/48] 800 mm

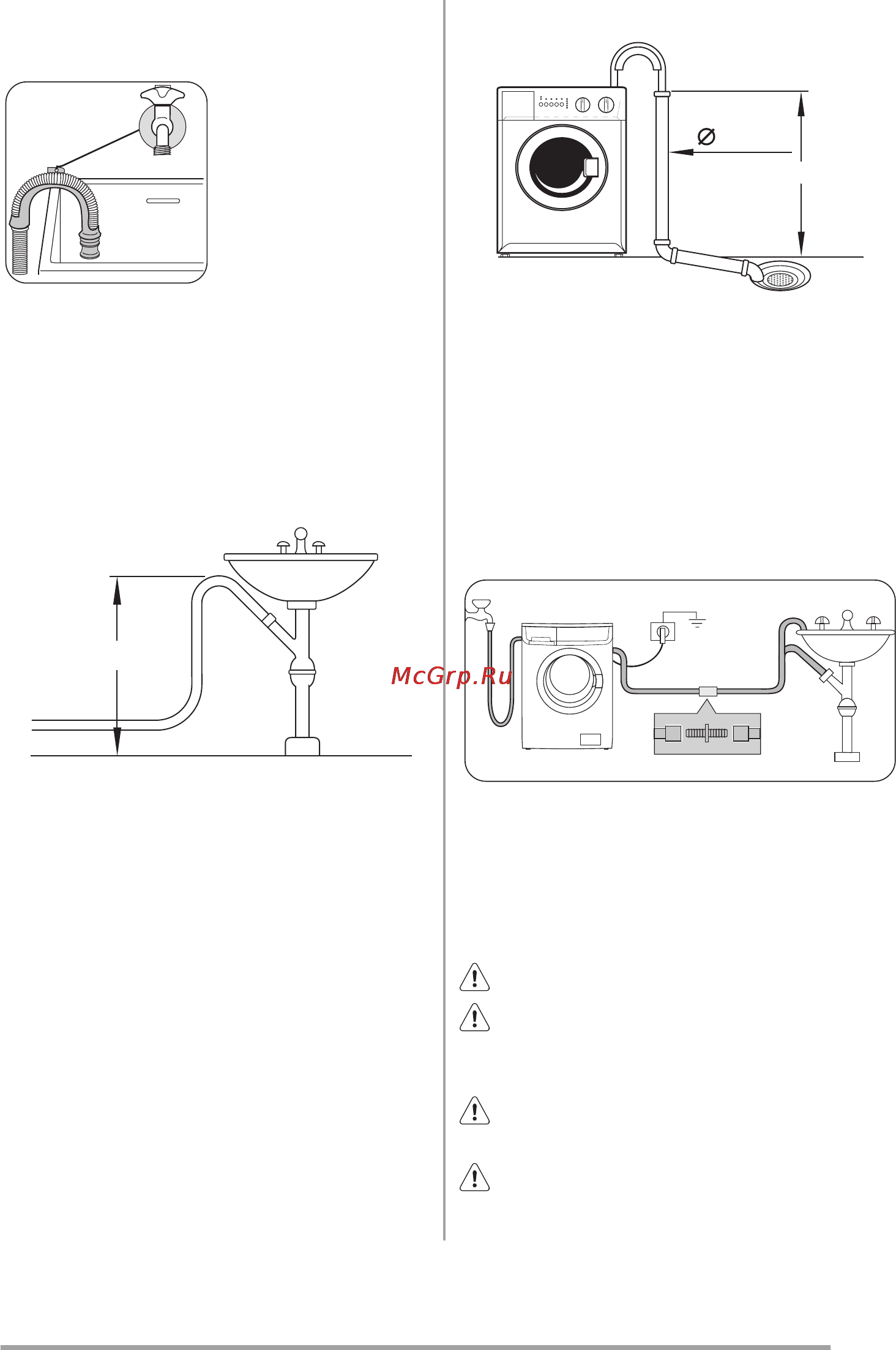

Hooked over the edge of a sink using the plastic hose

guide supplied with the machine.

In this case, make sure the end cannot come unhooked

when the machine is emptying. This could be done by ty-

ing it to the tap with a piece of string or attaching it to the

wall.

In a sink drain pipe with a trap.

650-800 mm

The drain hose can be connected directly into the pipe

(e.g. beneath a washtub or sink), above the water trap. The

drain hose must be arranged so that some part of it’s

length is routed up to a level corresponding to the top

edge of the tub and fixed in place there.

Directly into a drain pipe at a height of not less than 65

cm and not more than 80 cm.

Their must be an air gap around and below the end of

drain hose. This means that the internal diameter of the

standpipe must be larger than the outer diameter of the

hose.

650-800 mm

40 mm

The hose must not be sticked into the standpipe more

than 50 mm and it has to be fixed in this position. The

drain hose must not be kinked.

The drain hose can be extended up to total 3,5 m. For the

extension piece use a hose with an internal diameter at

least as large as that of the machine's own hose. Use a

suitable hose connector.

Information on the electrical connection is given on the

rating plate on the inner edge of the appliance door.

Check that your domestic electrical installation can take

the maximum load required, also taking into account any

other appliances in use.

Caution! Connect the machine to an earthed socket.

Caution! The manufacturer does not accept any

responsibility for damage or injury through failure

to comply with the above safety precaution.

Caution! The power supply cable must be easily

accessible after installing the machine.

Caution! Should the appliance power supply cable

need to be replaced, this must be carried out by a

Service Centre.
