17
H. / Threading mechanism
REF.NO CODE Q'TY NAME OF PARTS RM
1 SA2362001 1 THREAD GUIDE
2 S45563001 1
THREAD GUIDE TENSION STUD
3 144504001 2 THREAD GUIDE DISC
4 SA2358101 1
PRE-TENSION SPRING B
5 SA6167002 1 THREAD TENSION NUT
6 SB1595001 1
SPOOL PIN
7 SB3530001 1
A
RM THREAD GUIDE
8 014680632 1
SET SCREW SOCKET SM4.37-40X6
9 150551020 1
TENSION RELEASE PIN
10 SA8178001 1
TENSION RELEASE STUD
11 SB2042001 1
A
RM THREAD GUIDE
R
12 060670612 1
SCREW BIND SM3.57-40X6
13 S58910002 1
THREAD TAKE-UP COVE
R
14 062680812 1 SCREW PAN SM4.37-40X8
15 SB3798001 1
THREAD GUIDE D
<For -3, -3A>
16+ SB5460101 1
THREAD TENSION BRACKET ASS
Y
17+ 104525101 1
TENSION SPRING
<For -5>
16+ SB5462101 1
THREAD TENSION BRACKET ASS
Y
17+ S04632101 1
TENSION SPRING
18 S56254001 1
THREAD TENTION BRACKE
T
19 100402004 1
SET SCREW SM3.57
20 114294001 1
O-RING
21 116922101 1
TENSION STUD
22 145446021 2 DISC TENSION
23 159805001 1 TENSION DISC PRESSE
R
24 SB4266001 1
WASHE
R
25 SB4265001 1 TENSION NUT
26 S02620401 1
THREAD TAKE-UP SPRING
27 S55976001 1
SET SCREW, SM5.95
28 SB1597001 1 FACE PLATE THREAD GUIDE
29 060670612 1
SCREW BIND SM3.57-40X6
18

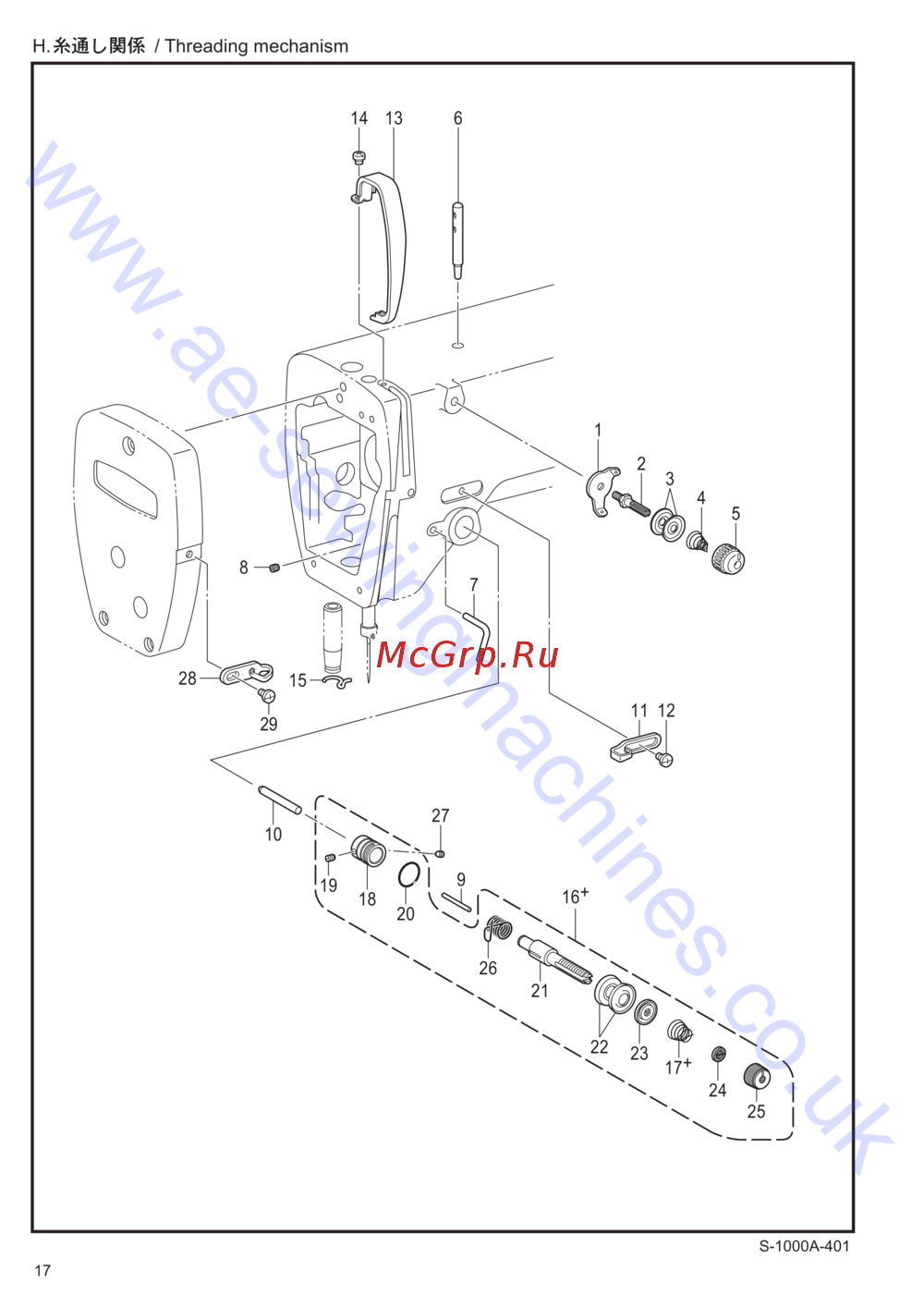

H. / Threading mechanism
17
S-1000A-401
14
3
4
2
1
5
1
3 6
22
21
23
17
+
24
25
2
6
20
18
19
9
2
7
10
1
5
8
1
6
+
11
7
12
29
28
www.ae-sewingmachines.co.uk
