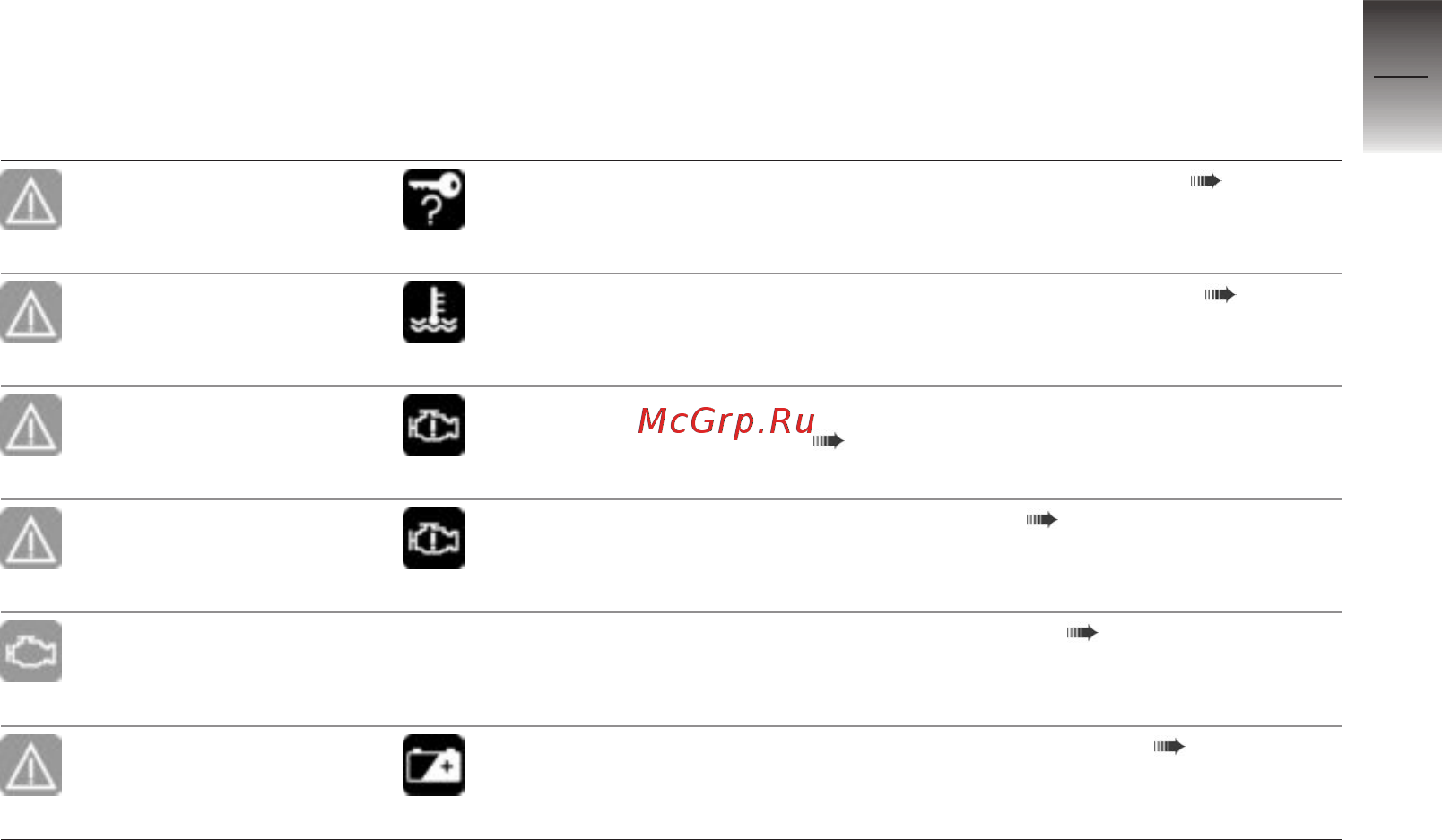

Warnings, overview
Telltale and warning
lights
Warning symbols in the
display
Meaning
General warning
light lights up.
Key symbol
appears on the
display.
Electronic immobiliser active ( 26)
General warning
light flashes.
Temperature sym-
bol appears on the
display.
Coolant temperature too high ( 26)
General warning
light lights up.
Engine symbol
appears on the
display.
Engine in emergency-operation mode
( 26)
General warning
light flashes.
Engine symbol
appears on the
display.
Engine warning ( 27)
The malfunction
indicator lamp lights
up.
Emissions warning ( 27)
General warning
light lights up.
Battery symbol
appears on the
display.
Vehicle voltage is too low ( 27)
3
23
z
Status indicators
