Linksys WPC54GX [20/51] Profiles

Chapter 5: Using the Wireless Network Monitor

Profiles

Wireless-G Notebook Adapter with SRX

Profiles

The Profiles screen lets you save different configuration profiles for different network setups. The table on the left

displays a list of infrastructure and ad-hoc networks available for connection. This table shows the network’s

profile name and the wireless network’s SSID, as set in the connection profile. On the right, the selected profile’s

wireless mode, transfer rate, channel setting, encryption method, and authentication method are displayed.

Profile - The name of the profile.

SSID - The SSID or unique name of the wireless network.

Arrows - Click the arrows up or down to move the profile’s priority order.

Profile Information

For the profile selected, the following are listed:

Wireless Mode - The mode of the wireless network currently in use.

Transfer Rate - The Adapter is set to Auto mode, so it will dynamically shift to the fastest data transfer rate

possible at any given time.

Channel - The channel to which the wireless network devices are set.

Security - The status of the wireless security feature.

Authentication - The authentication setting for the network.

Connect - To connect using a specific profile, select the profile, and click the Connect button.

New - Click the New button to create a new profile. See the next section, “Creating a New Profile,” for details.

Edit - Select a profile, and click the Edit button to change an existing profile.

Import - Click the Import button to import a profile that has been saved in another location. Select the

appropriate file, and click the Open button.

Export - Select the profile you want to save in a different location, and click the Export button. Direct Windows to

the appropriate folder, and click the Save button. To export more than one profile, you will have to export them

one at a time.

Delete - Click the Delete button to delete a profile. The default profile cannot be deleted.

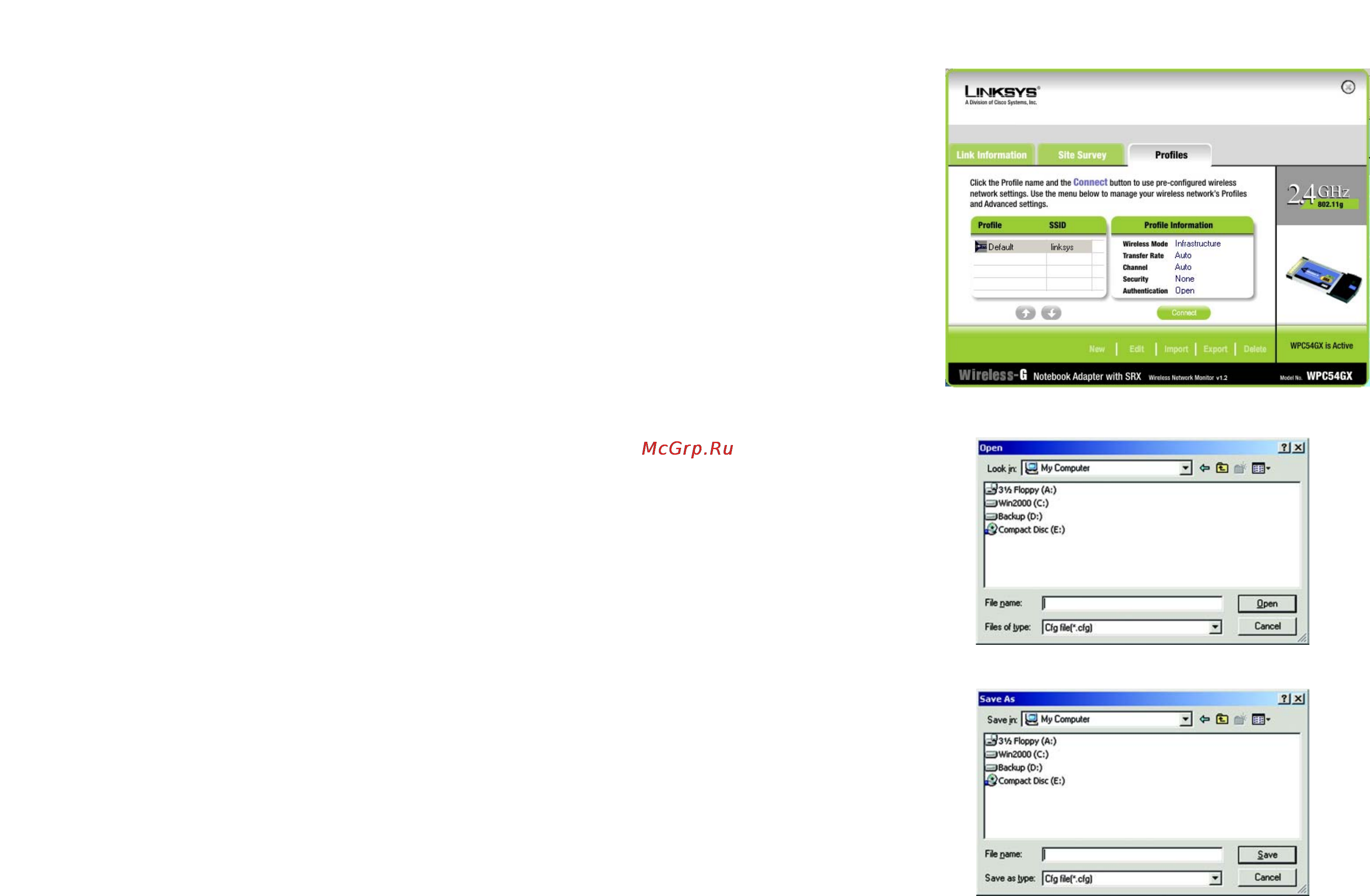

Figure 5-5: Profiles

Figure 5-6: Importing a Profile

Figure 5-7: Exporting a Profile
