Linksys E2000 Chapter 1: Product Overview

Advanced Wireless-N Router

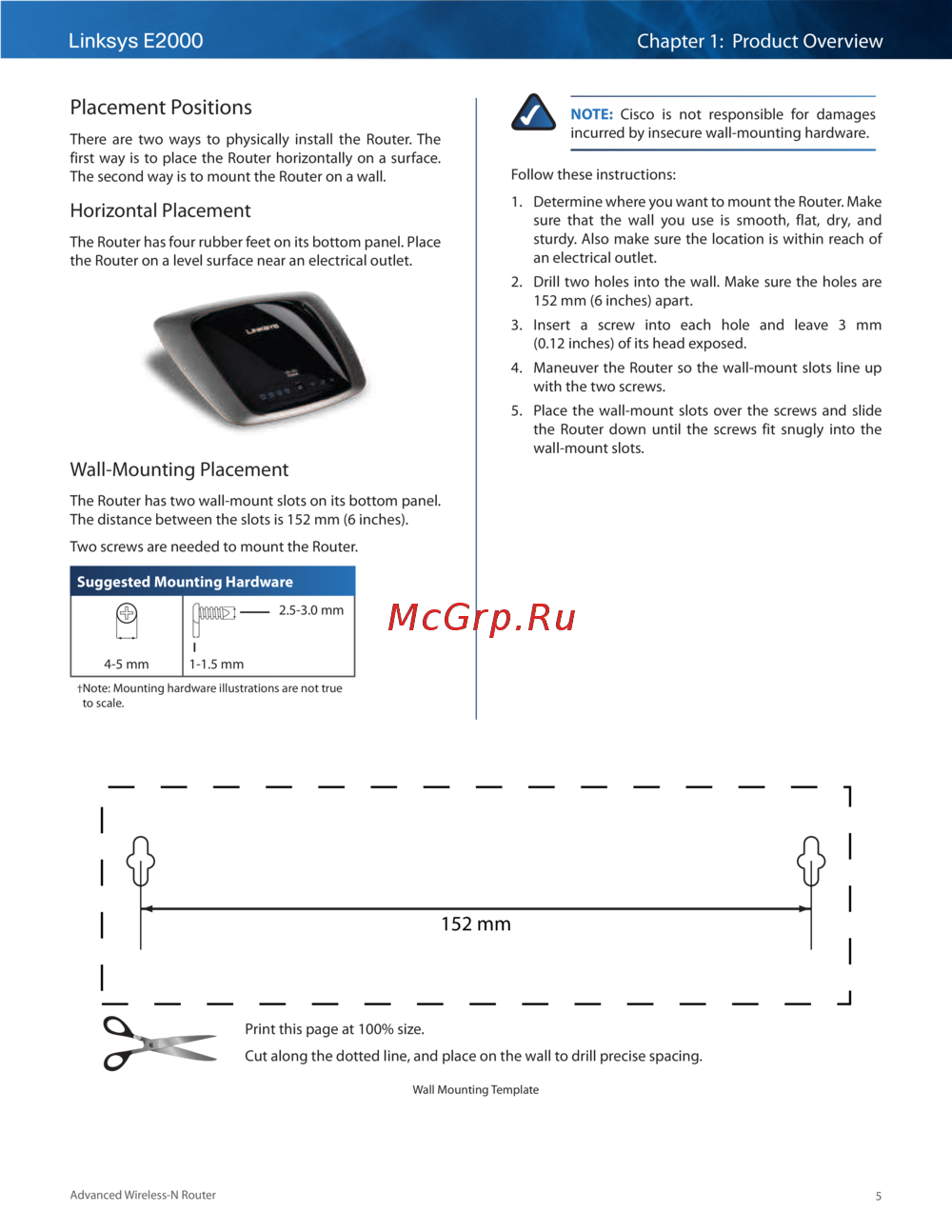

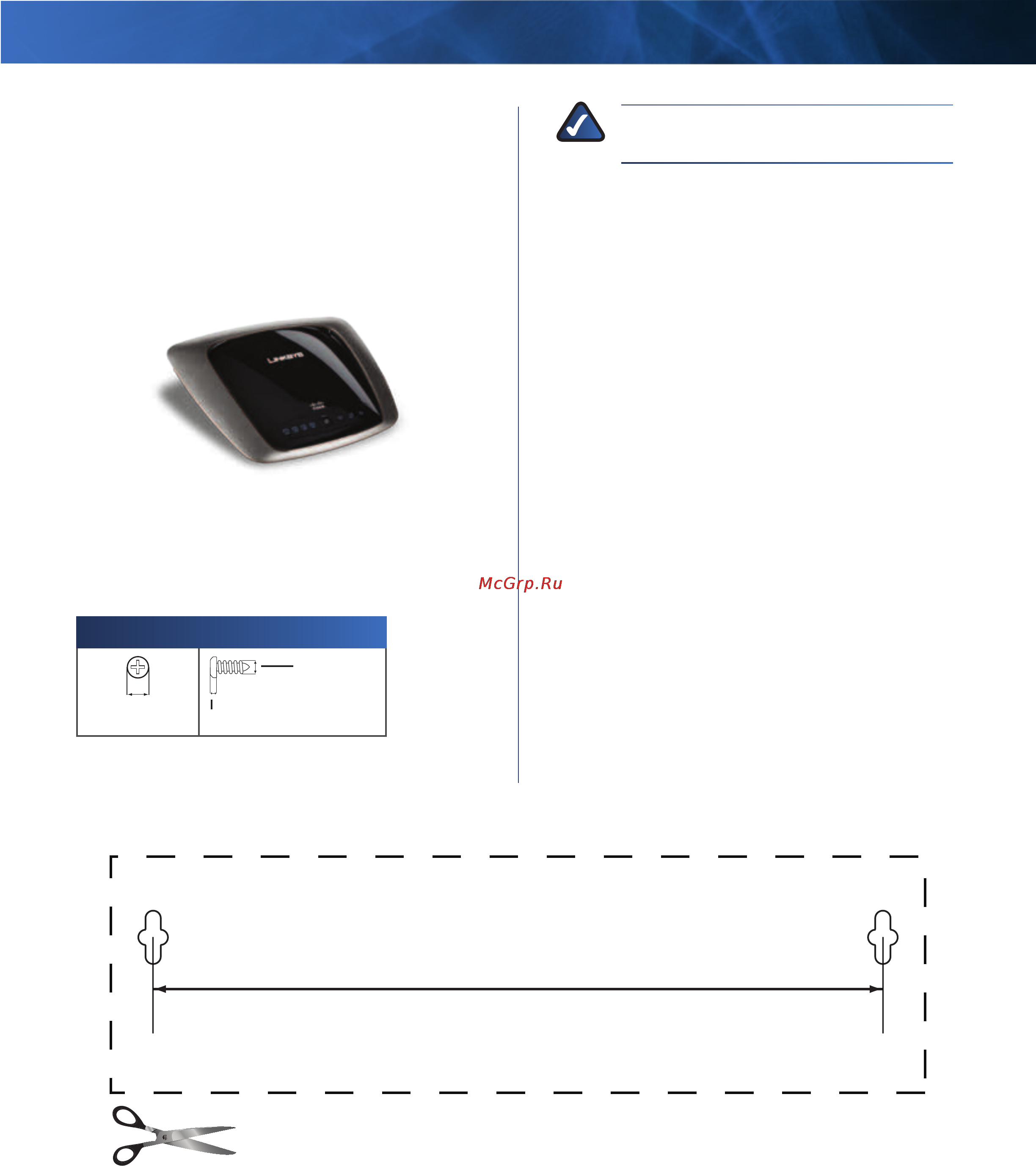

Placement Positions

There are two ways to physically install the Router. The

first way is to place the Router horizontally on a surface.

The second way is to mount the Router on a wall.

Horizontal Placement

The Router has four rubber feet on its bottom panel. Place

the Router on a level surface near an electrical outlet.

Wall-Mounting Placement

The Router has two wall-mount slots on its bottom panel.

The distance between the slots is 152 mm (6 inches).

Two screws are needed to mount the Router.

Suggested Mounting Hardware

2.5-3.0 mm

4-5 mm 1-1.5 mm

†Note: Mounting hardware illustrations are not true

to scale.

NOTE: Cisco is not responsible for damages

incurred by insecure wall-mounting hardware.

Follow these instructions:

1. Determine where you want to mount the Router. Make

sure that the wall you use is smooth, flat, dry, and

sturdy. Also make sure the location is within reach of

an electrical outlet.

2. Drill two holes into the wall. Make sure the holes are

152 mm (6 inches) apart.

3. Insert a screw into each hole and leave 3 mm

(0.12 inches) of its head exposed.

4. Maneuver the Router so the wall-mount slots line up

with the two screws.

5. Place the wall-mount slots over the screws and slide

the Router down until the screws fit snugly into the

wall-mount slots.

152 mm

Wall Mounting Template

Print this page at 100% size.

Cut along the dotted line, and place on the wall to drill precise spacing.
