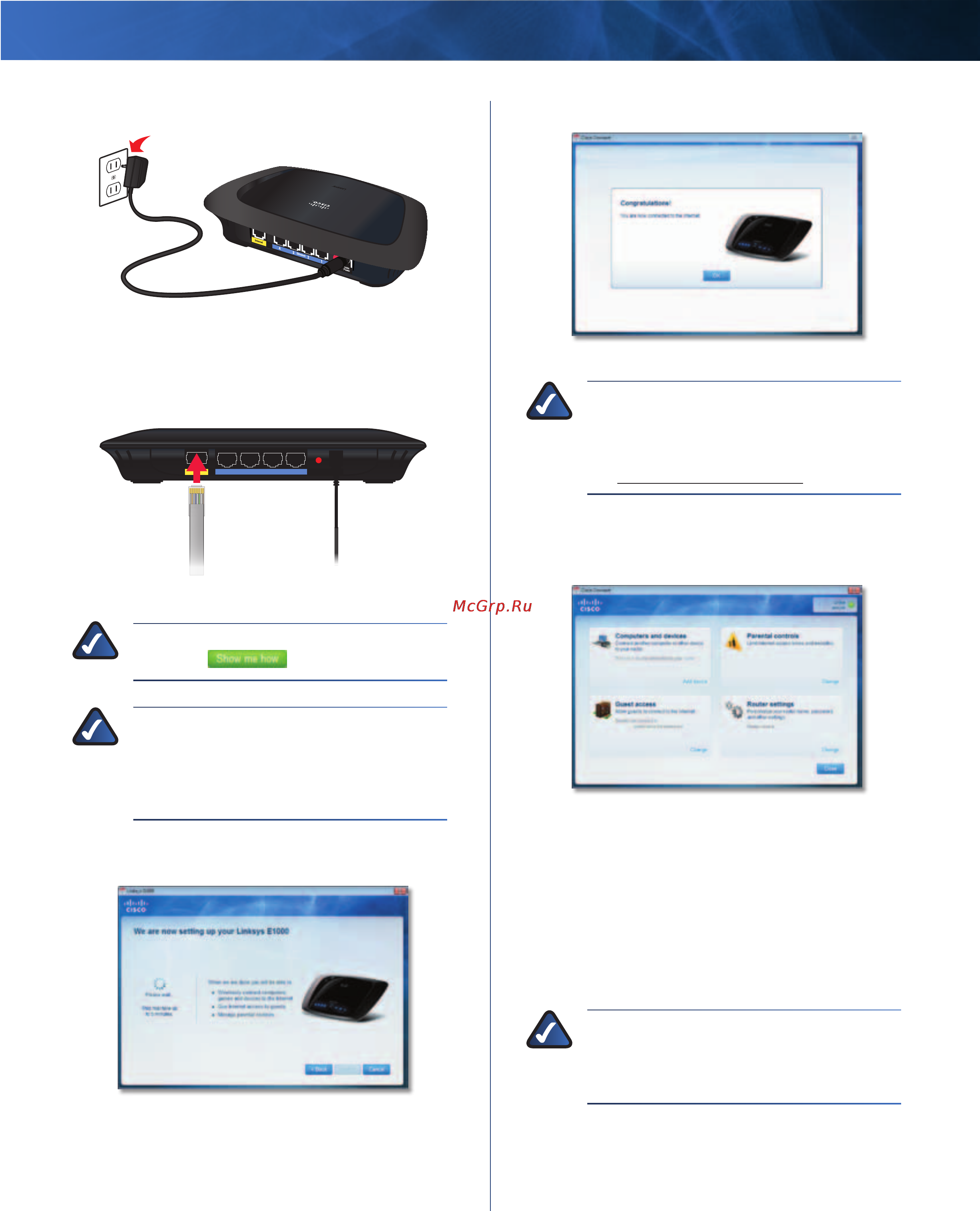

Linksys E1000 Chapter 2: Cisco Connect
4
Wireless-N Router
b. Plug the power adapter into an electrical outlet.
Connect to Electrical Outlet
c. Unplug the existing Ethernet cable from your
computer and plug it into the yellow port labeled
Internet on the back of the Router. Click Next.
Internet Ethernet4 3 2 1 Reset
Power
12VDC
Connect Ethernet Cable
NOTE: You can view detailed connection steps
by clicking in the setup software.
NOTE: If the setup software detects multiple
routers, then select the serial number of your
Router. The serial number is located on the
left side of the product label, which is on the
bottom of the Router.
5. Please wait while the setup software is setting up the
Router.
Please Wait
6. The installation is complete. Click OK.
Installation is Complete
NOTE: If you have any problems during the
installation process, refer to the Frequently
Asked Questions in the setup software, or use a
computer with an active Internet connection to
visit www.linksys.com/suppor t.
Main Menu
When Cisco Connect starts up, the main menu appears:
Main Menu
Status information is displayed in the upper right corner:
• online secure
Your local network is secure, and your Internet
connection is available.
• offline secure
Your local network is secure; however, your Internet
connection is not available. To repair your Internet
connection, follow the on-screen instructions.
NOTE: A group of computers or other devices
connected to a router is a local network.
The router allows the networked devices to
communicate with each other.
