Linksys WRT54G3G [18/165] The router s 3g umts slot

Chapter 3: Getting to Know the Wireless-G Router for 3G/UMTS Broadband

The Router’s 3G/UMTS Slot

Wireless-G Router for 3G/UMTS Broadband

The Router’s 3G/UMTS Slot

The Router’s 3G/UMTS slot is located on the Router’s top panel.

3G/UMTS Slot Insert the Vodafone Mobile Connect HSDPA/3G/UMTS data card (available separately) into this

slot if the Router will connect to a HSDPA/3G/UMTS or GPRS service.

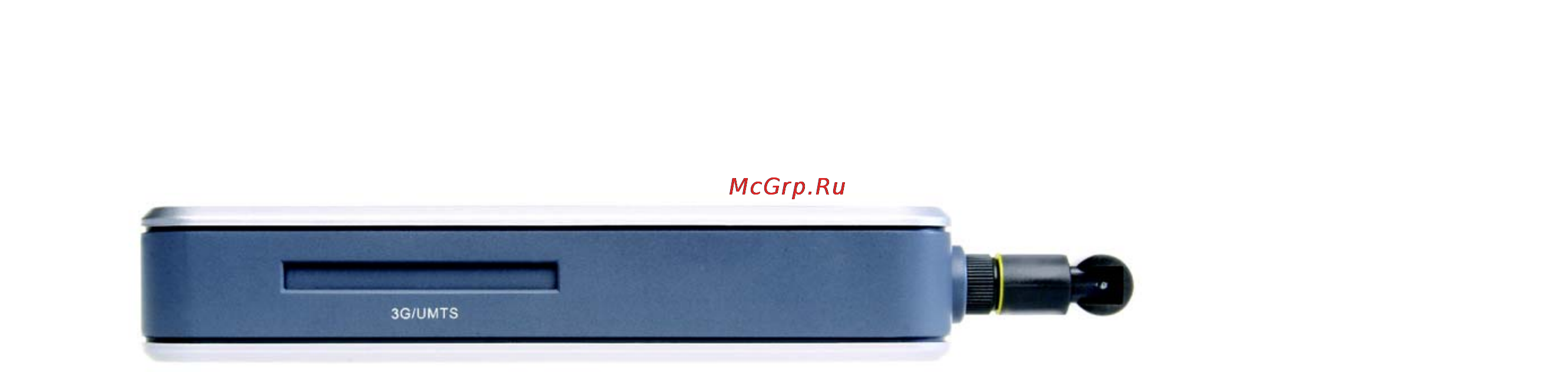

Figure 3-4: The Router’s 3G/UMTS Data Card Slot
