Chapter 4: Connecting the Wireless-G Router for 3G/UMTS Broadband
Hardware Installation for Use of the HSDPA/3G/UMTS or GPRS Service
Wireless-G Router for 3G/UMTS Broadband
4. Connect your network PCs or Ethernet devices to the Router’s numbered ports using standard Ethernet
network cabling.
5. Connect the power adapter to the Router's Power port, and plug the other end into an electrical outlet. Only
use the power adapter supplied with the Router. Use of a different adapter may result in product damage.
Proceed to the section at the end of this chapter, “Placement Options.”

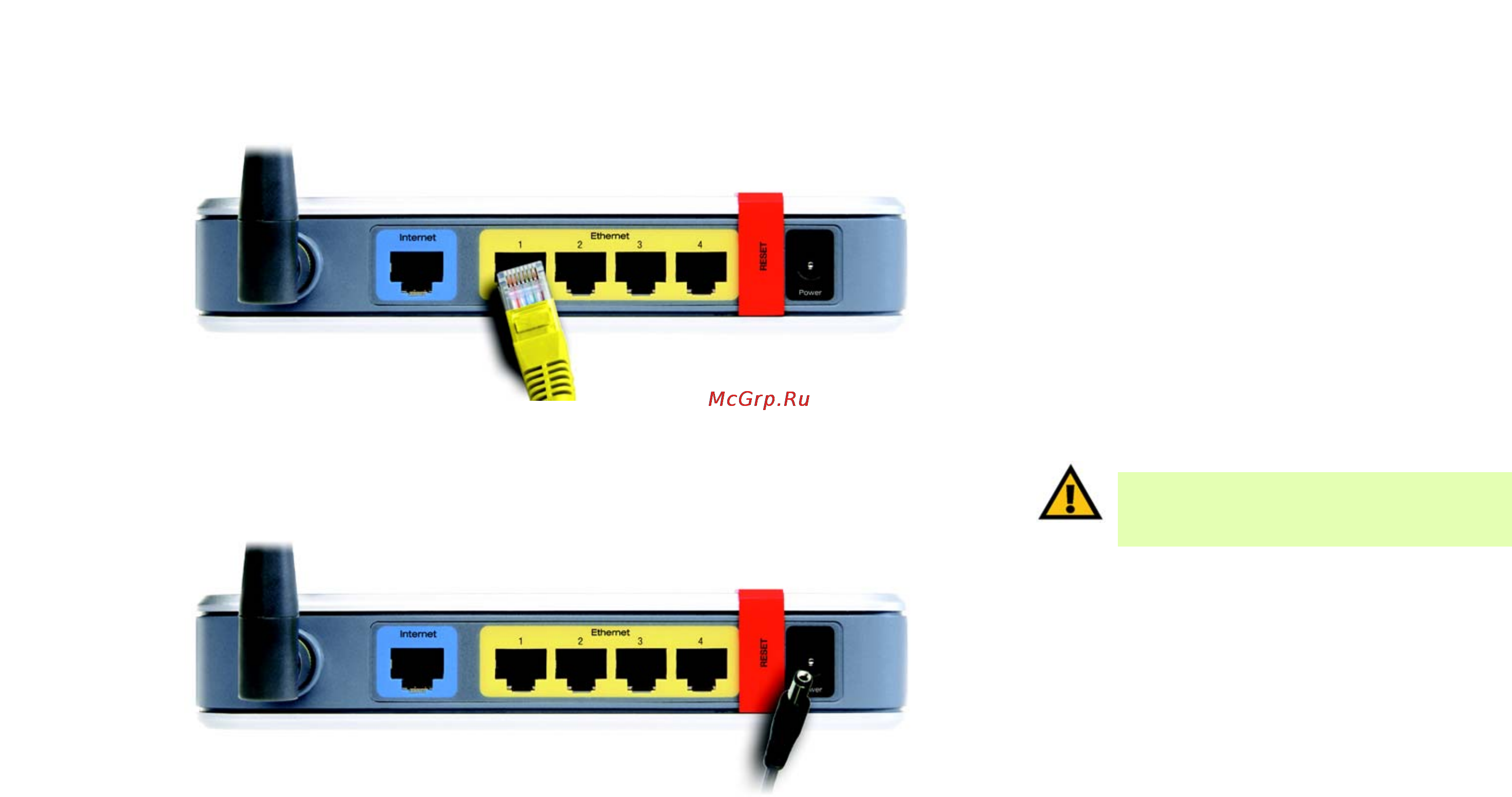

Figure 4-1: Connect Your Computer
Figure 4-2: Connect the Power
IMPORTANT: Make sure you use the power
adapter that is supplied with the Router. Use of a
different power adapter could damage the Router.
