19
Chapter 5: Setting up the Wireless-G Router for HSDPA/3G/UMTS or GPRS Service
Using the Setup Wizard
Wireless-G Router for 3G/UMTS Broadband
4. Click the 3G/UMTS or GPRS radio button to configure the Router for HSDPA/3G/UMTS or GPRS service.
5. Make sure the Router is powered off. Then follow the instructions provided by Vodafone to insert your
Vodafone SIM card into your Vodafone Mobile Connect HSDPA/3G/UMTS Card.
6. Insert your Vodafone Mobile Connect HSDPA/3G/UMTS Card into the Router’s 3G/UMTS slot on the top panel of
the Router. Then click the Next button.

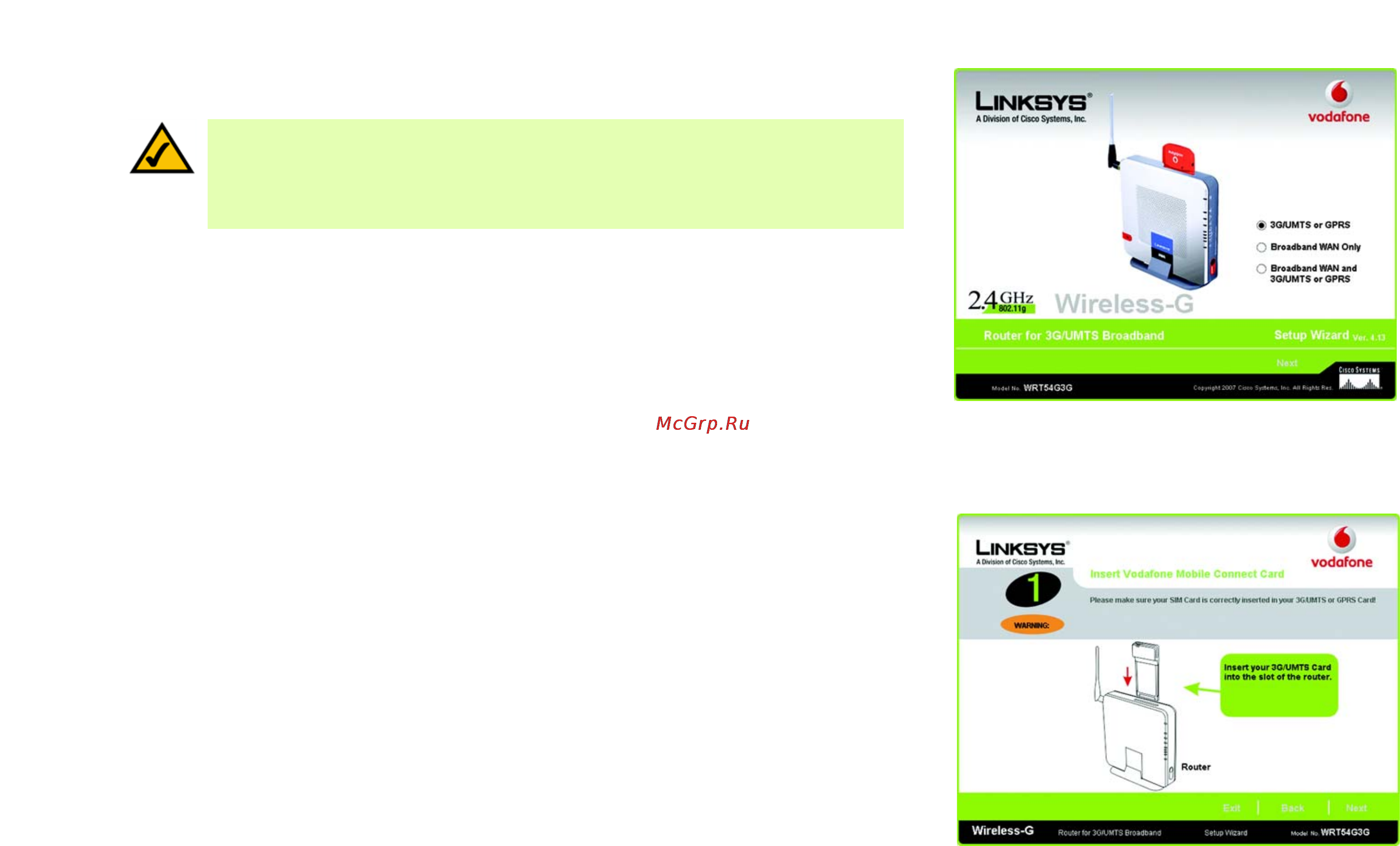

Figure 5-3: Select Service Screen
Figure 5-4: Insert Vodafone Mobile Connect Card Screen
NOTE: If you click the Broadband WAN Only radio button to configure the Router for broadband
WAN service only, go to “Chapter 6: Setting up the Wireless-G Router for Broadband WAN
Service Only.” If you click the Broadband WAN and 3G/UMTS or GPRS radio button to
configure the Router for broadband WAN and HSDPA/3G/UMTS or GPRS service, go to “Chapter
7: Setting up the Wireless-G Router for Broadband WAN and HSDPA/3G/UMTS or GPRS Service.”
