30
Chapter 6: Setting up the Wireless-G Router for Broadband WAN Service Only
Using the Setup Wizard
Wireless-G Router for 3G/UMTS Broadband
5. Make sure the Router is powered off.
6. Disconnect the Ethernet network cable from your computer. (This is the cable that connects the computer to
your modem.) Then click the Next button.
7. Connect the cable from the modem to the Internet port on the Router. (This is the same cable that you just
disconnected from your computer.) Click the Next button.

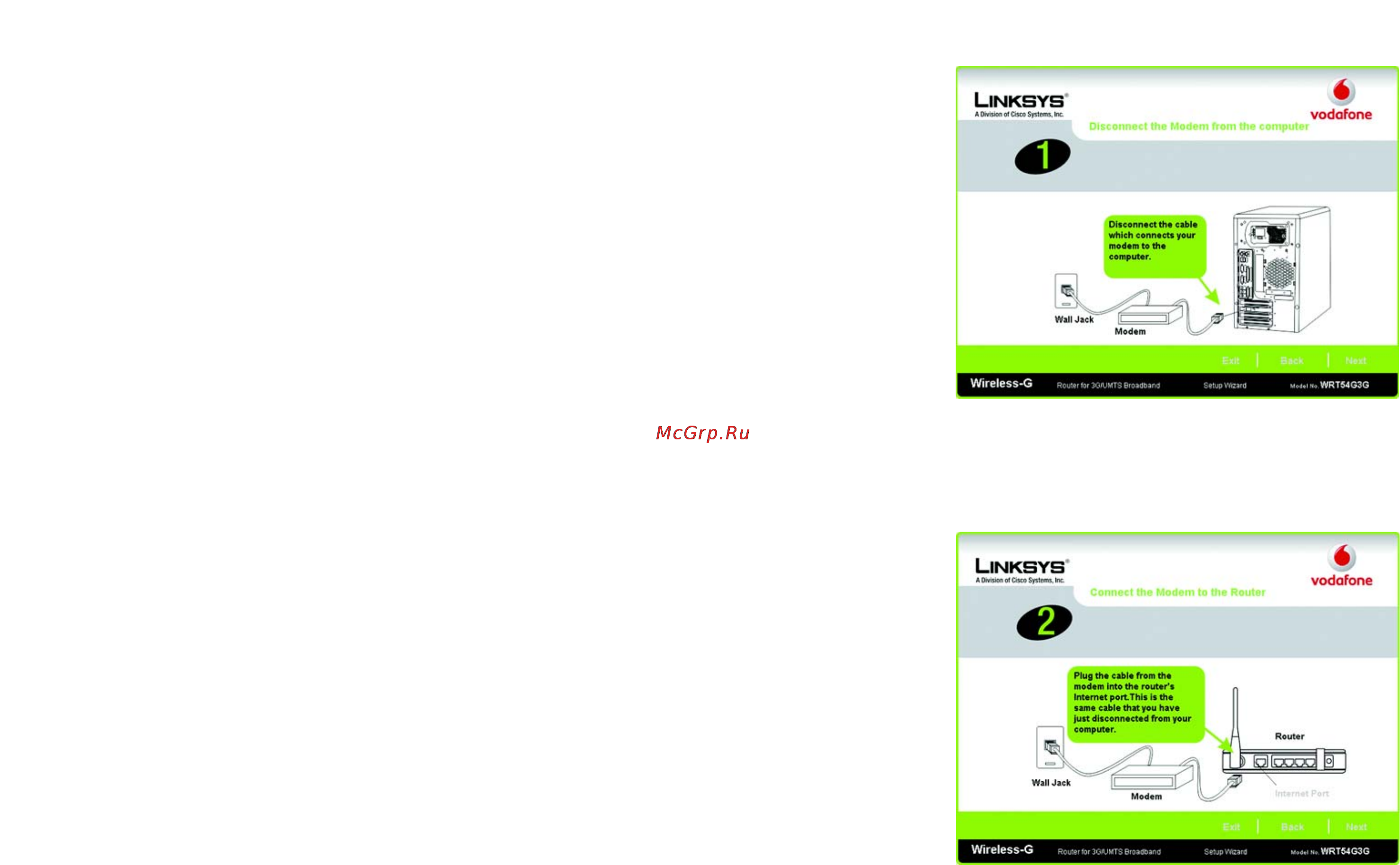

Figure 6-4: Disconnect the Modem from the Computer
Screen
Figure 6-5: Connect the Modem to the Router Screen
