Chapter 6: Setting up the Wireless-G Router for Broadband WAN Service Only

Using the Setup Wizard

Wireless-G Router for 3G/UMTS Broadband

18. The Congratulations screen will appear. Click the Online Registration button to register the Router, or click

the Exit button to exit the Setup Wizard.

Congratulations! The installation of the Wireless-G Router for 3G/UMTS Broadband is complete.

If you want to make advanced configuration changes, proceed to “Chapter 8: Configuring the Wireless-G

Router for 3G/UMTS Broadband.”

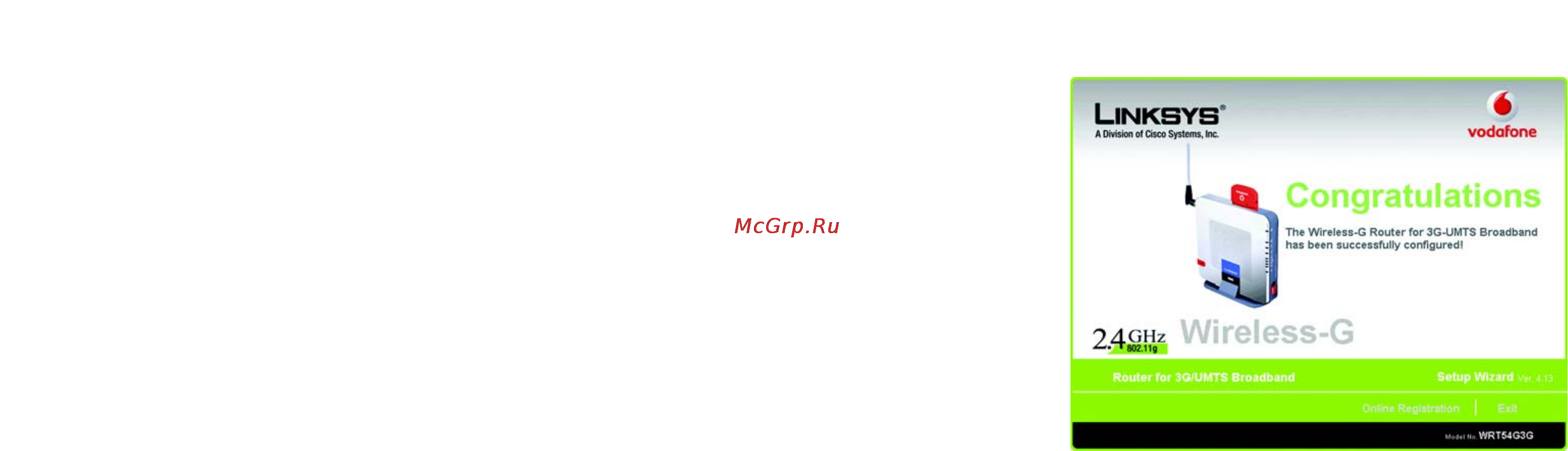

Figure 6-22: Congratulations Screen
