Chapter 7: Setting up the Wireless-G Router for Broadband WAN and HSDPA/3G/UMTS or

GPRS Service

Wireless-G Router for 3G/UMTS Broadband

7. Disconnect the Ethernet network cable from your computer. (This is the cable that connects the computer to

your modem.) Then click the Next button.

8. Connect the cable from the modem to the Internet port on the Router. (This is the same cable that you just

disconnected from your computer.) Click the Next button.

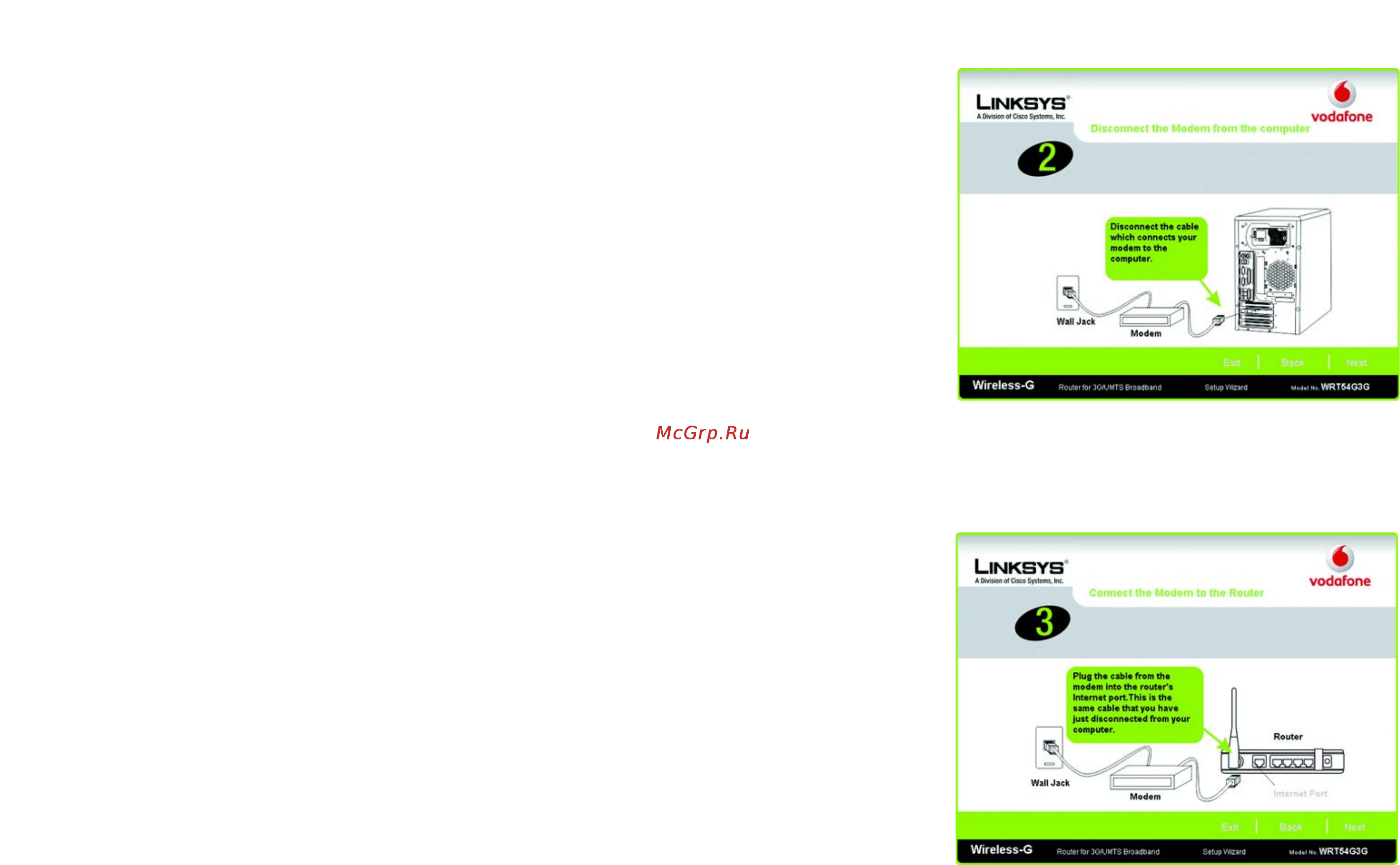

Figure 7-5: Disconnect the Modem from the Computer

Screen

Figure 7-6: Connect the Modem to the Router Screen
