4
AUDIO
IN
OUT
VIDEO
VIDEO
AUDIO

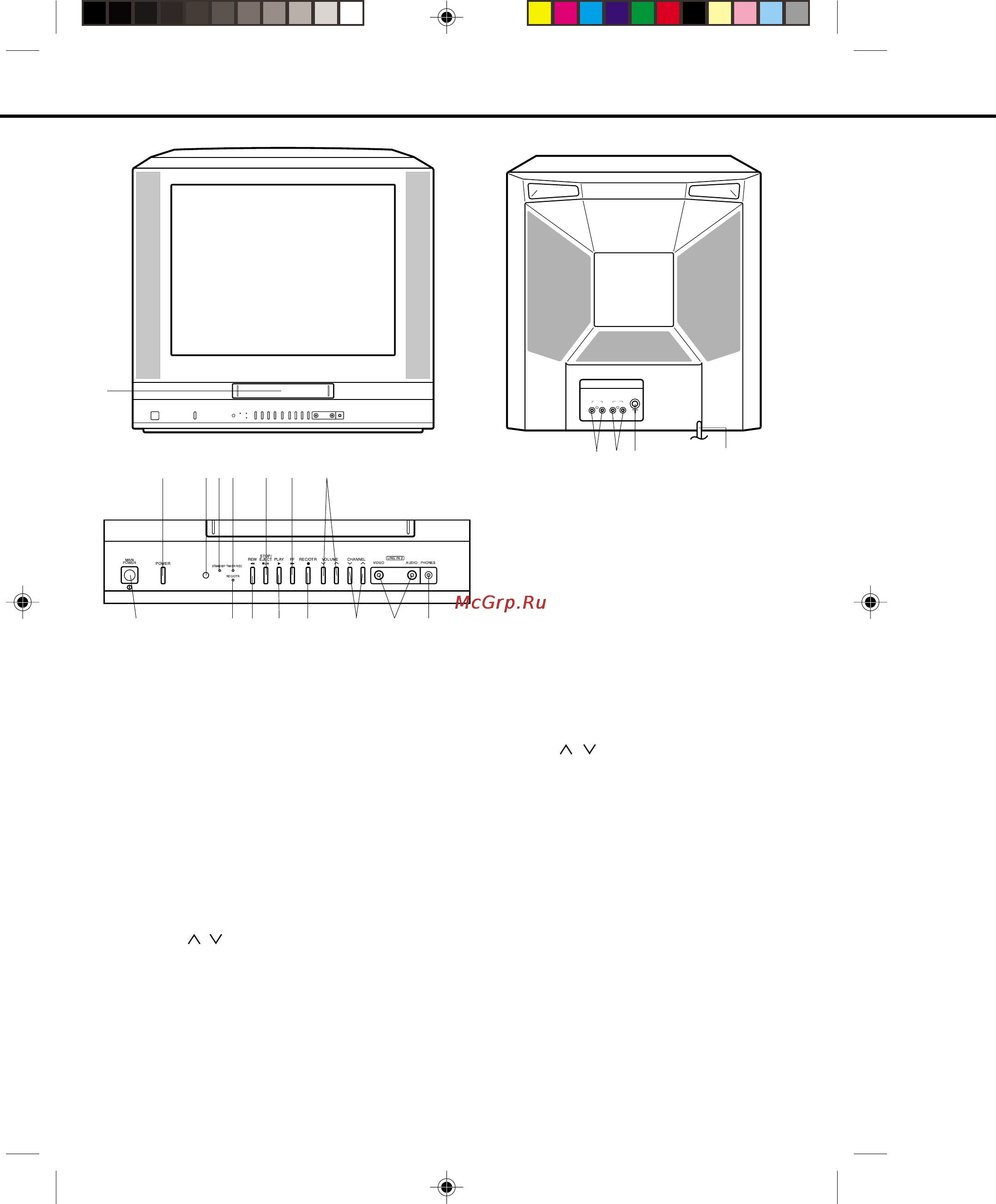

LOCATION OF CONTROLS
DESCRIPTION OF CONTROLS
REARFRONT
FRONT:
1. Cassette Loading Slot - To insert or remove a
video tape.
2. POWER Button - Press to turn the TV/VCR on or off.
3. Remote Sensor - Signals from the Remote Control
are received here.
4. STANDBY Indicator - Lights up when the Main
Power switch is turned on.
5. TIMER REC Indicator - Lights up when the TIMER
REC button is pressed.
6. STOP/EJECT Button - Press once to stop the tape
in any mode. Press again to eject the tape.
7. F.F (Fast Forward) Button - In the Stop mode, this
button rapidly winds the tape forward. In the Play
mode, this button activates forward search.
8. VOLUME
/ Buttons - Press to raise or lower the
volume of the sound.
9. Main Power switch - Turn the TV/VCR power on or
off completely.
10. REC/OTR Indicator - Lights up when the TV/VCR
is recording.
11. REW (Rewind) Button - In the Stop mode, this
button rapidly winds the tape backwards. In the Play
mode, this button activates reverse search.
12. PLAY Button - Press to play a prerecorded tape.
54 6
1
13. REC/OTR Button - Press once to start normal
recording. Additional presses activate One-Touch Timer
Recording.
14. CHANNEL
/ Buttons - Press to select a
channel for viewing or recording.
15. AUDIO/VIDEO IN Jack (LINE IN 2)- Audio and video
signal cables from an external source can be
connected here.
16. PHONES socket - Plug monaural headphones or
an earphone with a 3.5 mm miniplug into this
socket for private listening.
REAR:
17. AUDIO/VIDEO OUT Jacks - Used to output audio
and video signals to a TV, amplifier or VCR.
18. AUDIO/VIDEO IN Jacks - Audio and video signal
cables from an external source can be connected
here.
19. VHF/UHF Antenna Socket - Connect the 75 ohm
coaxial cable from the antenna or Cable TV service
to this jack.
20. AC Power Cord - Connect to AC outlet.
3
10 1211 13
7 8
149
2
15
17 18 19 20
16
5960101A/E/01-10 28/5/01, 12:34 PM4
