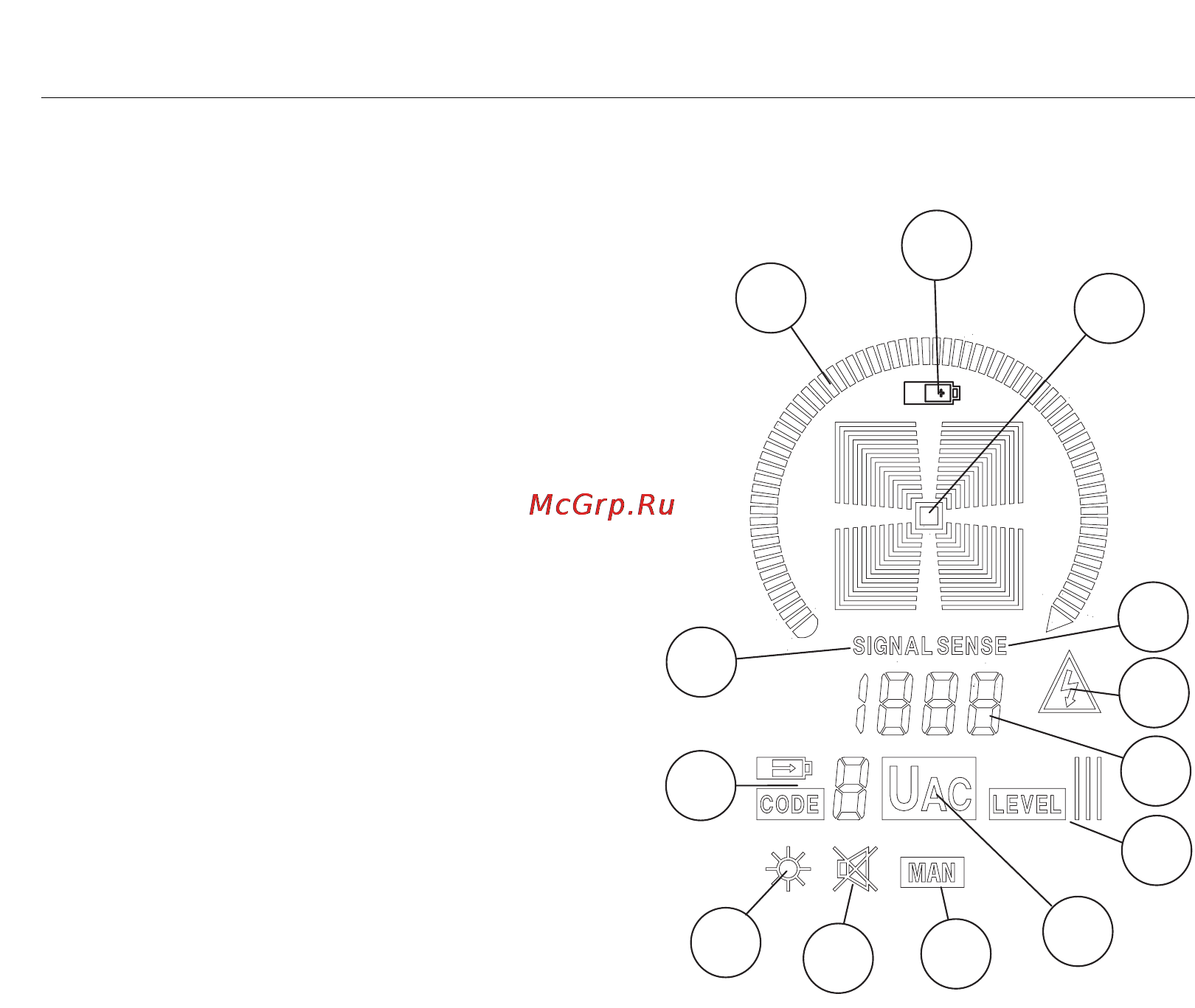

Receiver – Display

9 a) Display to indicate that the acoustic display is

switched off

9 b) Symbol to indicate the active LCD illumination

9 c) Information transmitted by the transmitter

(transmission code and battery charge conditi-

on)

9 d) Display to indicate that the automatic mode is

switched on

9 e) Bargraph display to indicate the signal intensity

9 f) Display for discharged battery

9 g) Manual mode:additional graphic display to indi-

cate the selected sensitivity Display of the sen-

sitivity within the selective mode.

Large magnifying glass => high sensitivity,

Small magnifying glass => low sensitivity

9 h) Display to indicate that the manual mode is

active

9 i) Display for mains voltage

9 j) Automatic mode; digital display for signal inten-

sity / manual mode, display of sensitivity/ SEL

for selecitve mode.

9 k) Transmission level transmitted by the transmit-

ter (LEVEL I, II, or III)

9 l) Display to indicate that the mains voltage detection is switched on

9 m) Display to indicate that the manual mode has been selected
