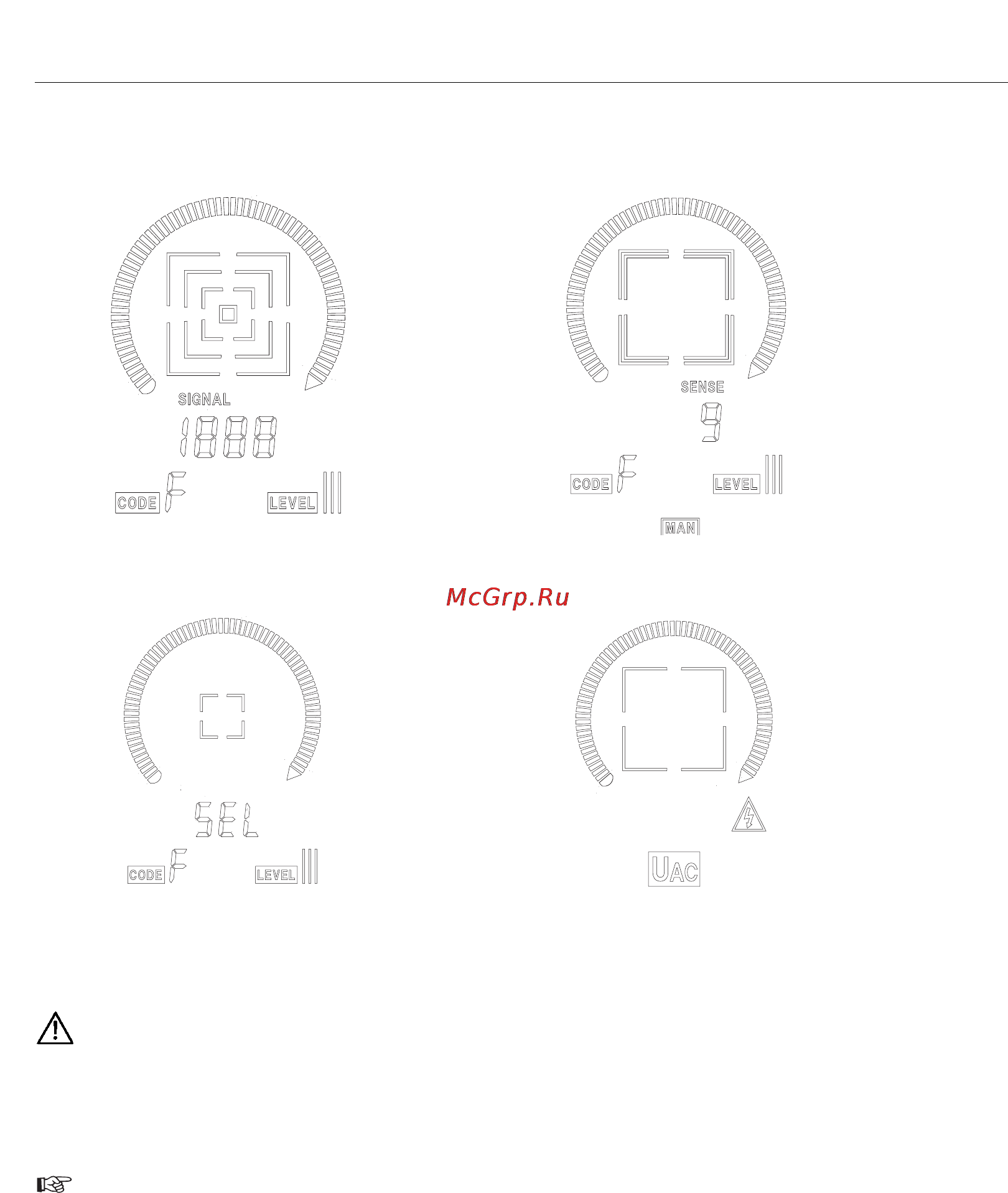

Cable Locator Mode

a) Automatic mode b) Manual mode

c) Selective Mode Mains Voltage Detection

Carrying out measurement

The transmitter should be connected between phase and neutral. First verify that the ground

wire is in compliance with the VDE 100 for, when connectiong the transmitter from phase to

ground, all parts being connected to ground could be live during failures (in cases where the

earth resistance does not comply with the regulations).

If the RCD trips when connecting the sender (with reference to the protective earth contact PE),

a fault current is already active within the installation which generates the RCD tripping when

cumulated to the additionally fed current

Fluke 2042

Users manual
