Should the short-circuit resistance amount to more than 20 Ohm, you can try the experiment to de-

tect the error location by means of the line interruption mehtode.You can try with sufficient energy

to determine the error location (low ohmic connection) or to burn it in a way ensuring a line interrup-

tion.

• Systematically circle round the interruption by changing the sensitivity

The switching with button 4 from »LEVEL I« to »LEVEL III« the sensitvity of Distance is increa-

sed up to a factor of 5.

Setup: manual mode, minimal sensitivity.Tracing depth max. 0,5 meters.

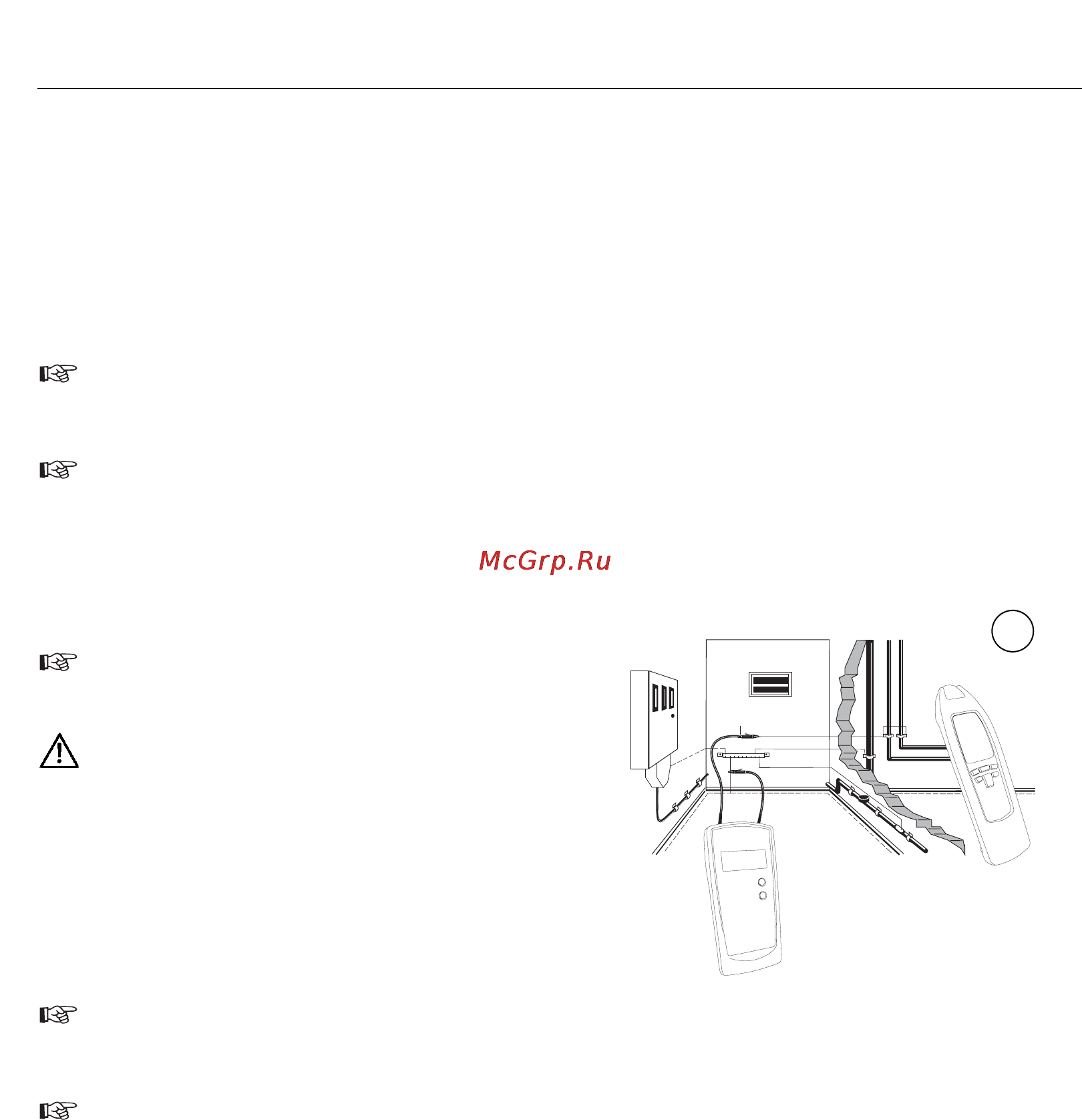

Tracing installed water and heating pipes (one-pole application)

The following has to be respected:

The line to be located must be separated from the

equipotential bonding.

For safety reasons the electrical system must not be

live!

Connect transmitter at foundation ground to the ground

socket. The second transmitter socket has to be con-

nected to the conductor to be located. Now the feed line

can be traced.

The switching with button 4 from »LEVEL I« to »LEVEL III« the sensitvity of Distance is increa-

sed up to a factor of 5.

Setup: manual mode, minimal sensitivity.Tracing depth max. 2 meters.
