Detedting the direction of water and heating pipes already installed

(one-pole application)

Requirements:

• The respective water and heating pipes must be

suitably grounded.

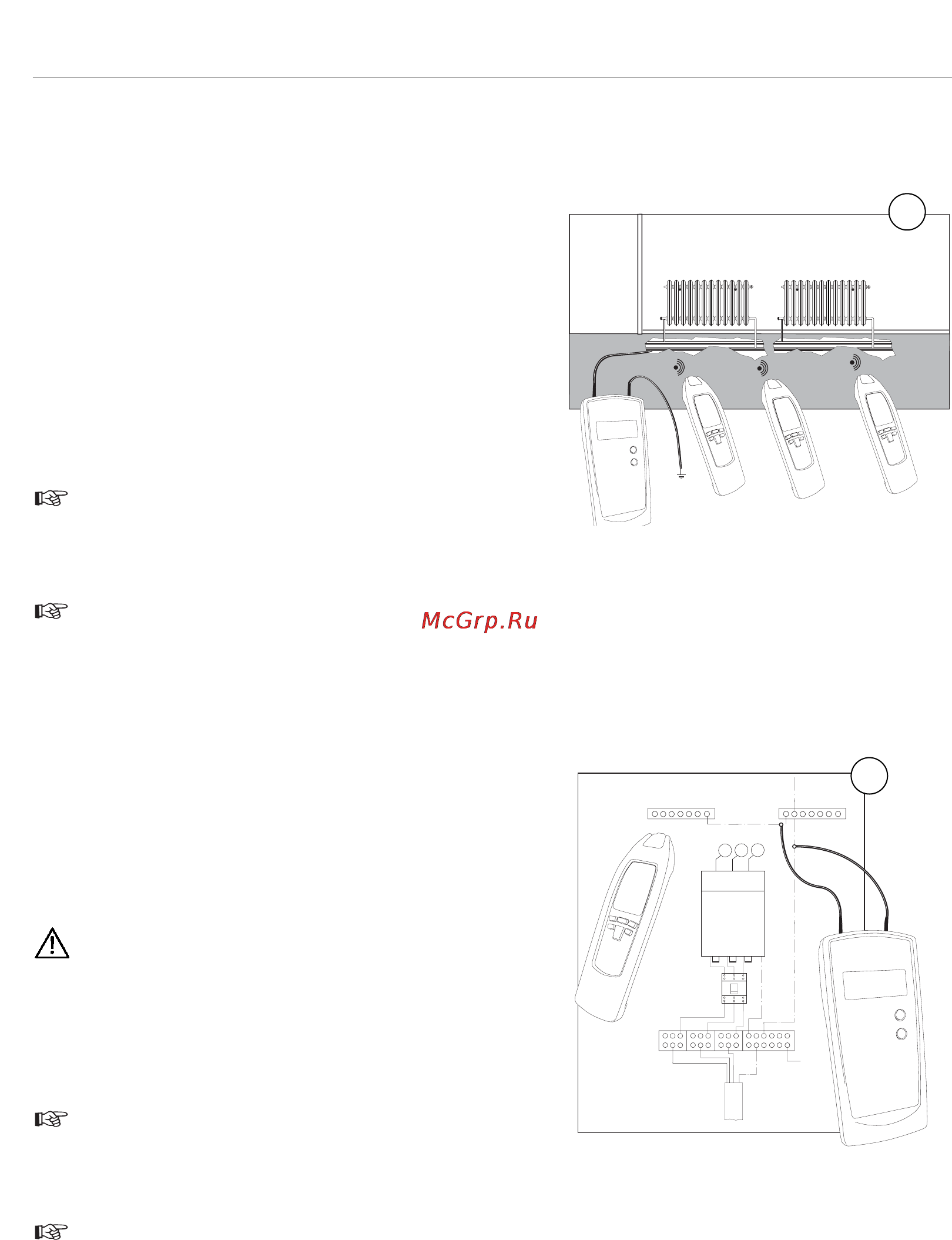

• Connect the transmitter according figure 13.

• Carry out this example as described in the application

example.

The earth of a properly earthed socket is a suitable

ground.

The switching with button 4 from »LEVEL I« to

»LEVEL III« the sensitvity of Distance is increased up

to a factor of 5.

Setup: manual mode, minimal sensitivity.Tracing depth max. 2,5 meters.

Locating a complete house wiring (one-pole application)

Practical application example

In order to determine all electrical lines of a house within

one working process, proceed as follevel is:

• Remove the bridge in the main distribution between

"PE" and "N".

For safety reasons, the system must not be live!

• Connect the transmitter to the system compliance with

the figure 14. Now, the neutral conductor, being present

within the total system, may be followed.

The switching with button 4 from »LEVEL I« to

»LEVEL III« the sensitvity of Distance is increased up

to a factor of 5.

Setup: manual mode, minimal sensitivity.Tracing depth max. 2 meters.
