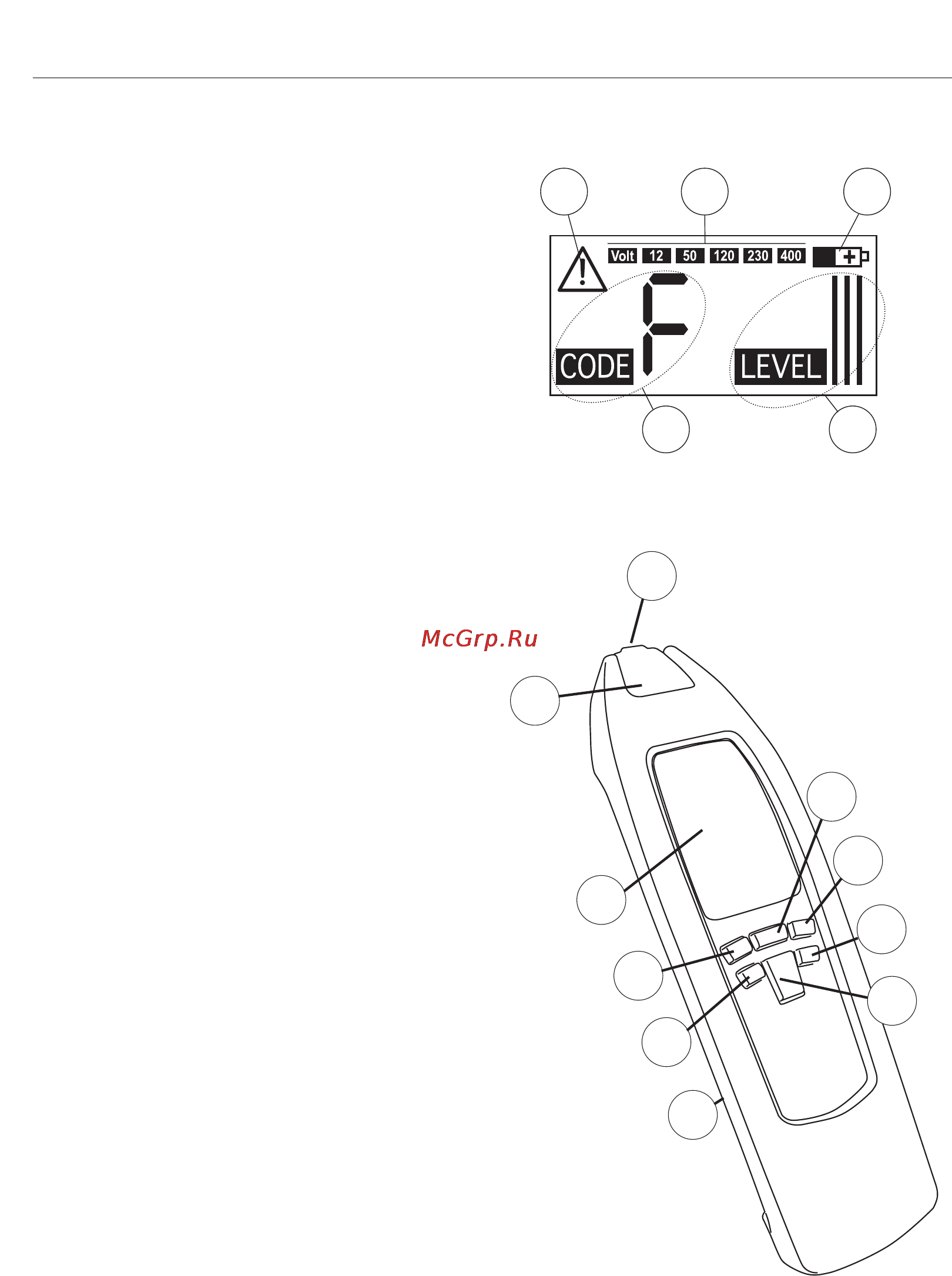

Transmitter – Display
3a) Transmitted Code
3b) Display for external voltage (i.e. 50 V)
3c) External voltage detection
The integrated foreign voltage detection fea-
ture is not appropriate to check (if the con-
nection is live) ! Tor check that the system is
live, use an appropriate voltage tester (e.g.
FLUKE T100).
3d) Display for battery status
3e) Display transmitted level (I, II or III)
Receiver
7) Button to switch the acoustic display on or off
8) ON/OFF button to switch the instrument on or
off / backlight. To switch off the instrument,
press the button during 2 s, approximately.
If no button is pressed during a certain pe-
riod, the instrument automatically switches off
after approximately 5 minutes.
Briefly press the respective LCD backlight
button to switch it on and off while the recei-
ver is switched on.
9) LCD
10) Light
11) Sensor head
Slowly move the sensor head across the lo-
cation to be searched. If the searching move-
ment is too fast, the signal cannot be
(recognized).
12) "UAC" button to select between cable locator
mode and mains voltage detection mode
13) "- " button, to switch the light function mode
on or off
This function is automatically switched off
after approximately 60 seconds.
14) SEL button to switxch on/of selective mode
11
12
13
14
15
7
8
9
10
16
3b
3c 3d
3e3a
8
Fluke 2042
Users manual
