If the appliance is to be fitted laterally to the kitchen
unit, it will be sufficient to loosen the screws of the
little plates (E), move them as shown in Fig. and
then fasten them up again.
After having reversed the opening direction of
the doors check that all the screws are properly
tightened and that the magnetic seal adheres to
the cabinet. If the ambient temperature is cold
(i.e. in Winter), the gasket may not fit perfectly to
the cabinet. In that case, wait for the natural
fitting of the gasket or accelerate this process by
heating up the part involved with a normal
hairdrier.
PR168
Hb
PR167/1
Hd
Hb
Place the small square on the guide again and fix it
with the screws supplied.
Should the lining up of the furniture door be
necessary, use the clearance of slots.
At the end of operations, it is necessary to check if
the door of the furniture closes properly.
Fix cover (Hd) on guide (Hb) until it clips into place.
Ha
8mm
K
Remove the brackets and mark a distance of 8 mm
from the outer edge of the door where the nail must
be fitted (K).
E
E
PR167
Ha
Hb
8mm

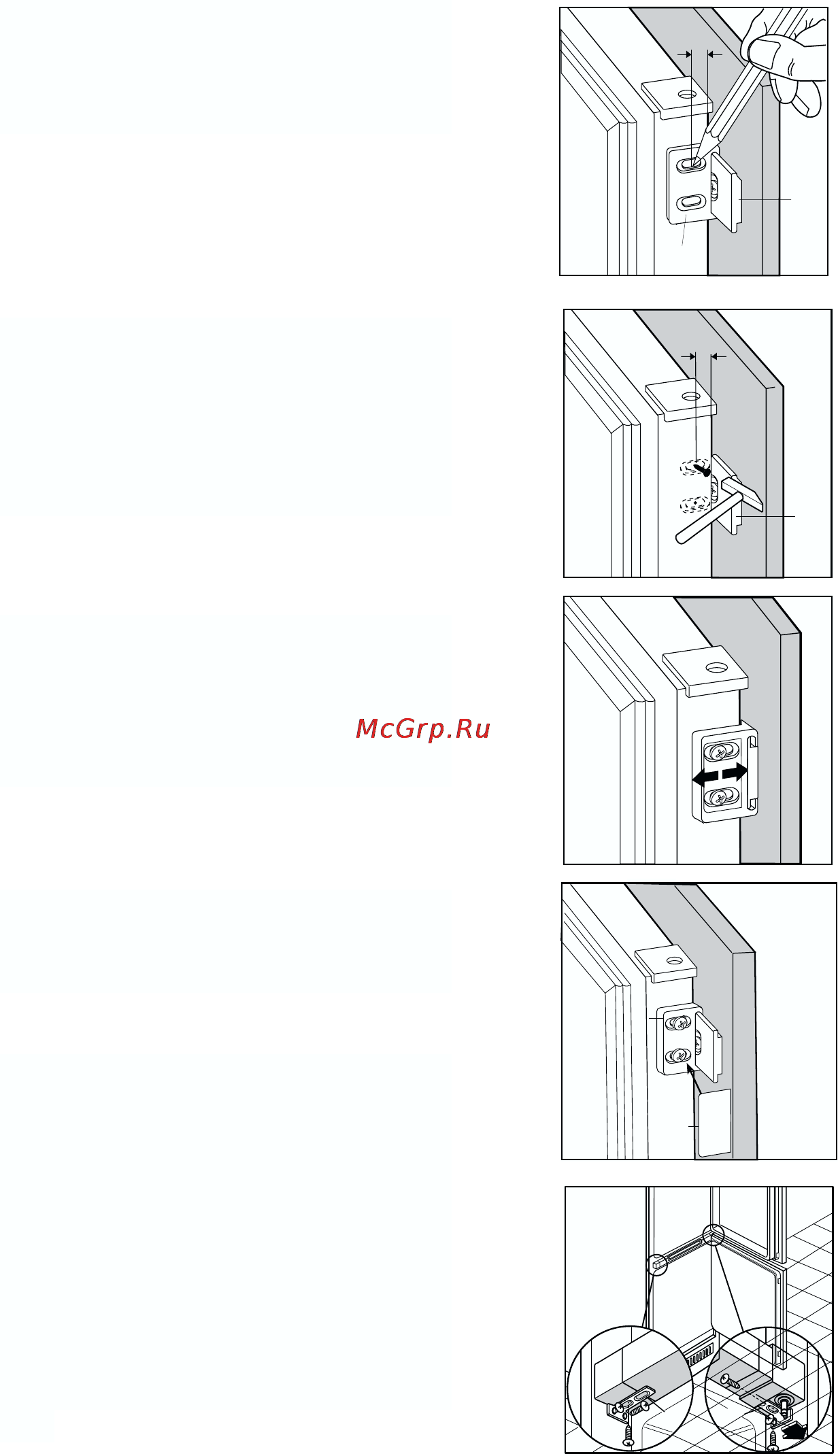

Open the appliance door and the furniture door at
90°. Insert the small square (Hb) into guide (Ha).
Put together the appliance door and the furniture
door and mark the holes as indicated in the figure. .
