Honda TRX 500 FPMC [202/258] If a fuse blows
![Honda TRX 500 FPMC [202/258] If a fuse blows](/views2/1512400/page202/bgca.png)

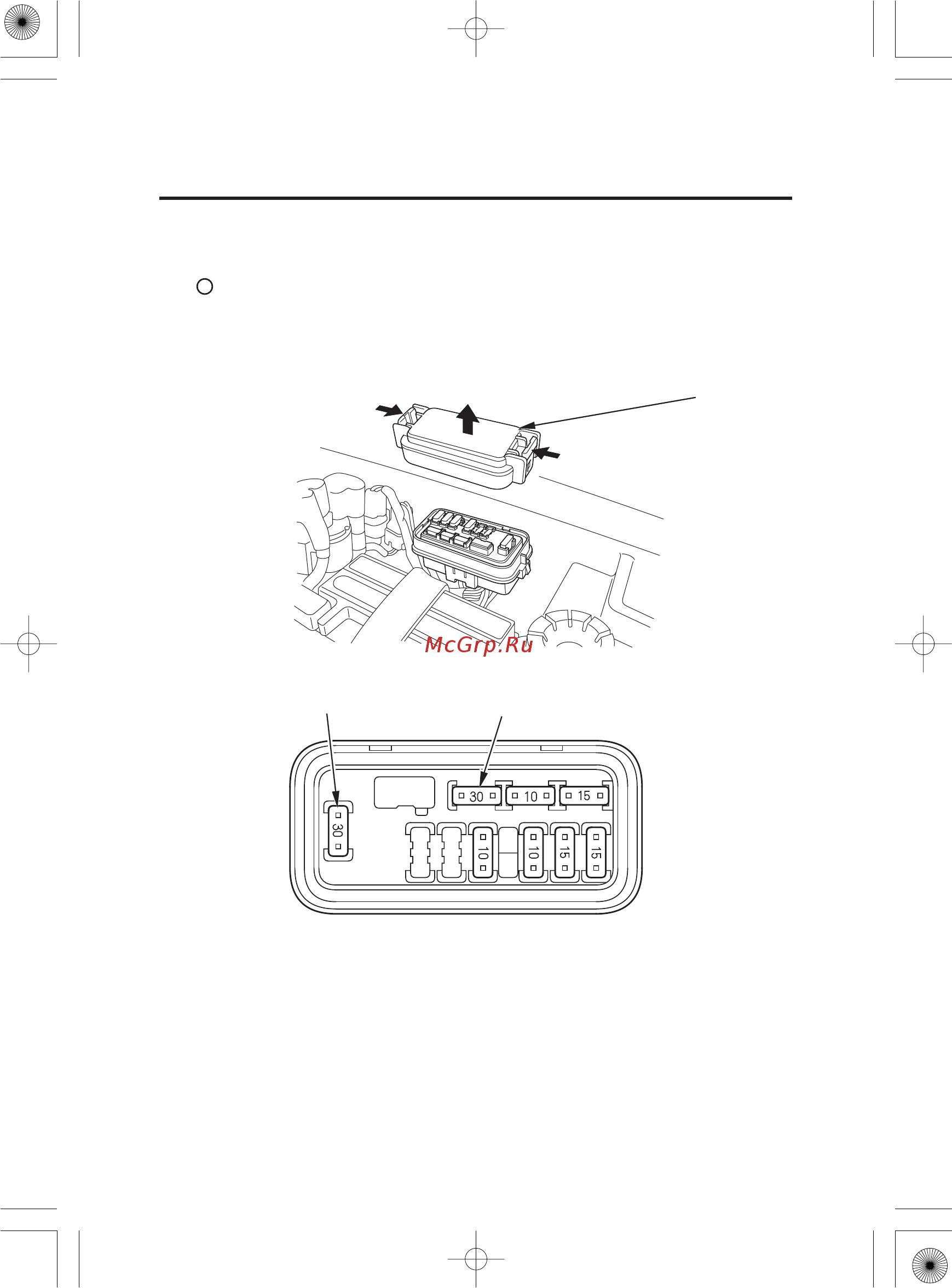

UNDER SEAT
(2)
(3)
(4)
(2) main fuse
(3) fuse box cover
(4) spare main fuse
193
If a Fuse Blows
Taking Care of the Unexpected
Main Fuse Access
Remove the seat (page ).
To prevent an accidental short circuit, turn the ignition switch OFF
( ) before checking or replacing the fuses.
To access the main fuse ( ), remove the fuse box cover ( ).
Pull the main fuse out.
If it is blown, install the spare main fuse ( ).
3
4.
1.
2.
3.
106
4
2
０９／０５／１４ １４：２０：０２ ３１ＨＰ０７５０ ０２０２
