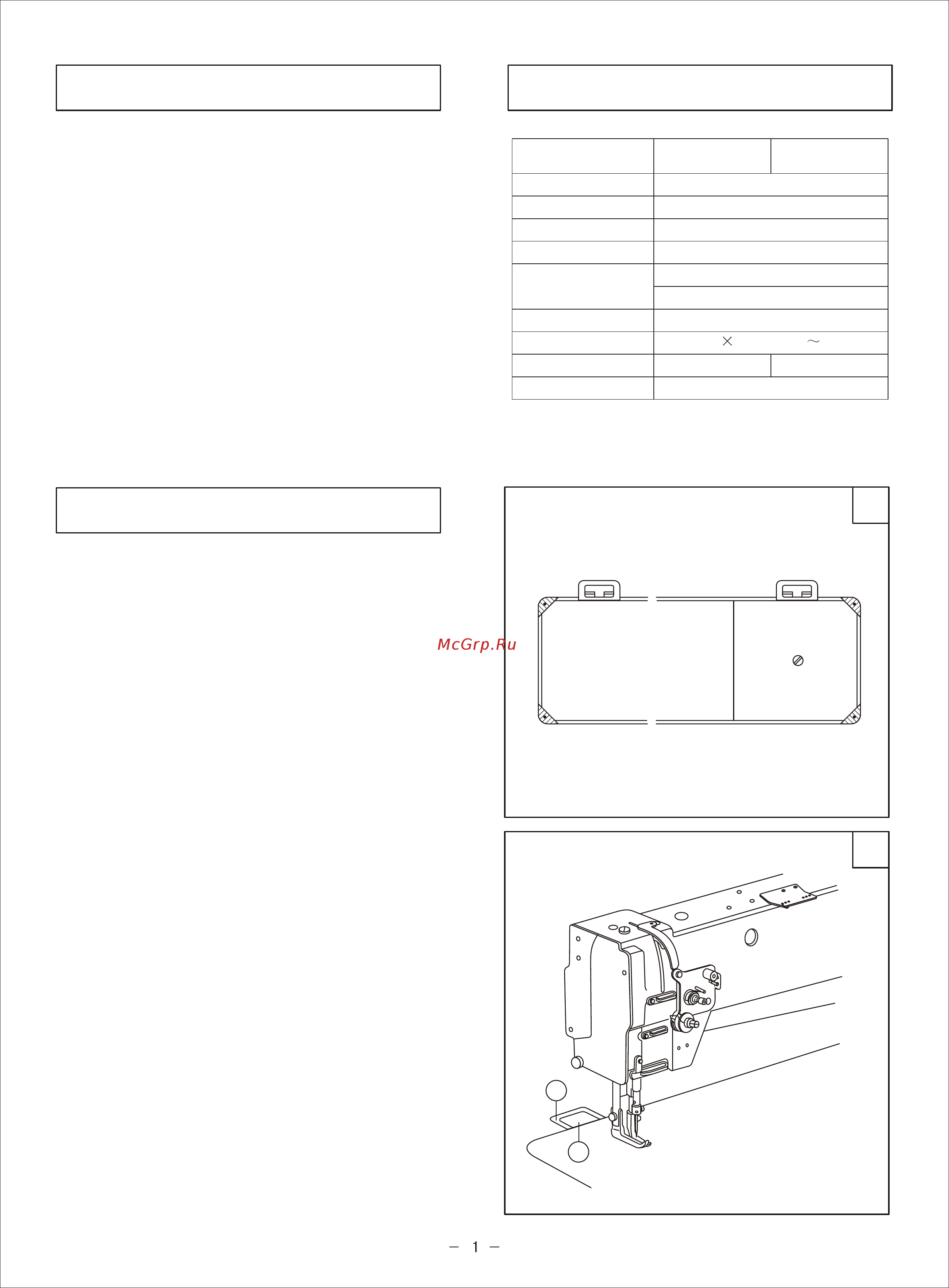

GC20606L18
3. Machine installation
1. Brief introduction 2. Main specifications
1
2
GC20606L18 machine adopts straight double needle
and two vertical auto-lubricating hooks for thread
looping, sliding lever for thread take up to form two
lines of lockstitch seam. The upper and lower shafts
are supported by needle bearing and driven by
toothed belt, plunger oil pump lubrication system,
compound feed mechanism of feed dog, walking
foot and needle, so even if for long stitch length or
sewing long materials, it can deal with them freely.
GC20606-1L18 sewing machine adopts single
straight needle and vertical auto-lubricating hook for
thread looping, it has all of the advantages of
GC20606L18.
Both of the models are widely used in the factories
of suitcase, tent, cushion, leather goods, apparel,
mat, etc.
.
.
.
GC20606-1L18
Medium and heavy weight materials
1200s.p.m
9mm
36mm
8mm by hand
More than 16mm by pedal
Large vertical auto-lubricating hook
DP 17 Nm125 180
6.4mm (standard)
Auto-lubricating
A
B
Special needle gauge available (mm):3.2,4,4.8,8,
9.5,12.7,16,19,25.4.
Applications
Max. Sewing speed
Max. Stitch length
Needle bar stroke
Presser foot lift height
Hook
Needle
Needle gauge
Lubrication
Model
1. Machine installation
1.1 Location of the machine
The machine must be located on the rigid and flat
floor for ensuring its smooth operation and reducing
its vibration. Meanwhile, a rubber mat should be
inserted between the machine stand and the floor for
further reducing the running noise. .
1.2 Install the oil pan (Fig. 1)
Put the oil pan into the table cutout and place the
four cushions on the four corners of the cutout,
finally fix the cushion and oil pan on the table by
nail. .
1.3 Install the machine head (Fig. 2)
Make the hinge A of machine head engaged with
hinge socket B on the table, then turn the machine
head till it is seated on the frame of table cutout,
please keep the turning freely. .
