27
ARMO 2D
MEASUREMENT FOUNDATION
To check the accuracy of line laser level
To check the accuracy of line laser level (slope plane)

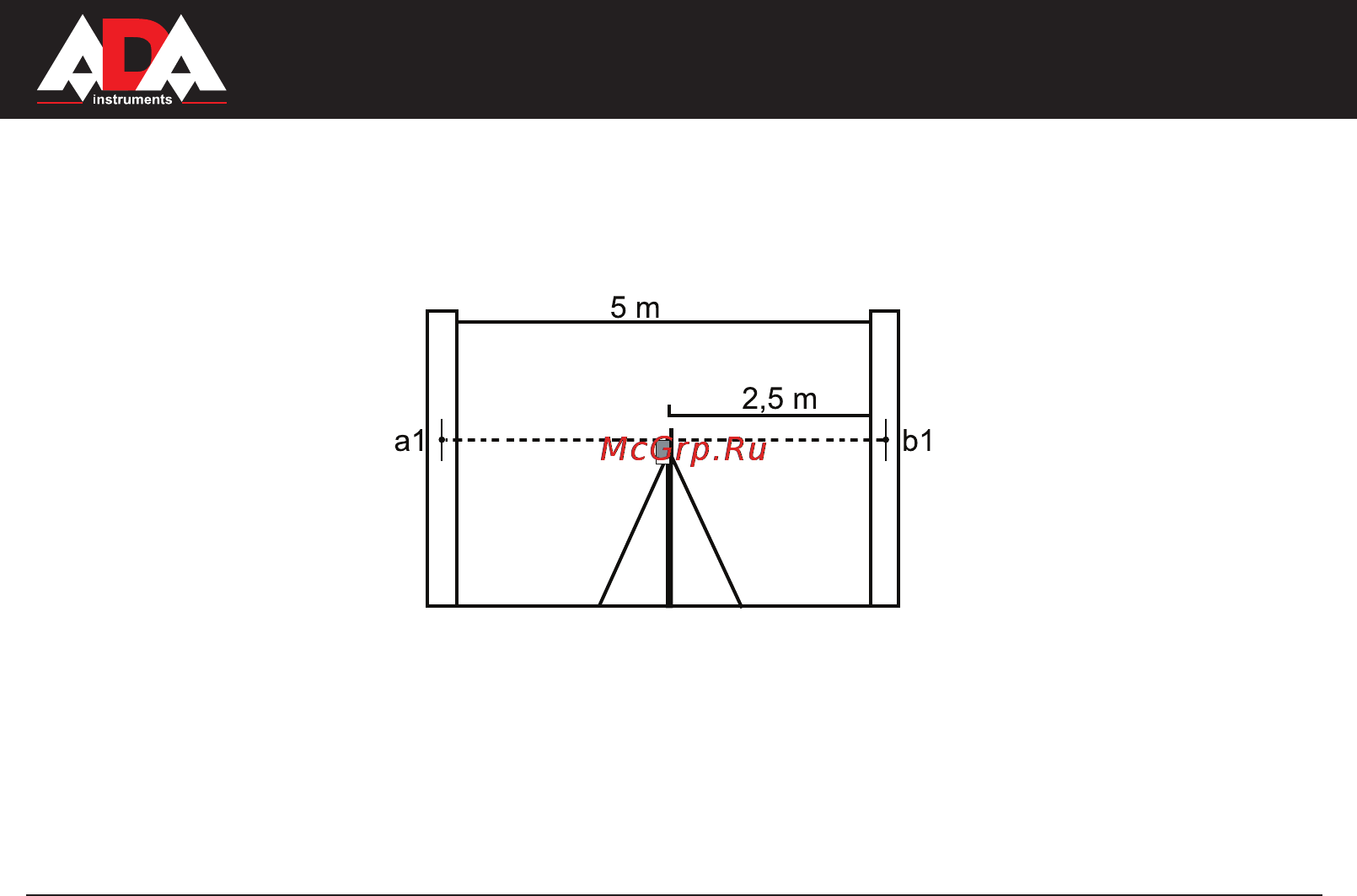

Set up the instrument between two walls the distance is 5 m.Turn on the Cross Line Laser and mark the point of cross
laser line on the wall.
Set up the instrument 05-07m away from the wall and make as described above the same marks. If the difference
{a1-b2} and {b1-b2} is less then the value of “accuracy” (see speсications) there is no need in calibration.
Example: when you check the accuracy of Cross Line Laser the difference is {a1-a2}=5 mm and {b1-b2}=7 mm. The
instrument’s error: {b1-b2}-{a1-a2}=7-5=2 mm. Now you can compare this error with standard error.
If the accuracy of Cross Line Laser isn’t corresponding with claimed accuracy contact the authorized service center.
