Samsung DSB-9401V [24/38] Connecting your stb

DSR 9401 FTA / DSB-9401F / DSB-9401V

CONNECTING YOUR "STB"

GB-5GB-4

DIGITAL SATELLITE RECEIVER

1. LOCATION OF THE RECEIVER

Your

STB

should be placed under proper ventilation.

Don’t put in completely enclosed cabinet that will restrict the flow of air,

resulting in overheating.

The location should be safeguarded from direct sunlight,

excess moisture, rough handling or household pets.

Avoid stacking other electronic components on the top of the receiver.

The location should be safely accessible by the cable from your

antenna system.

2. CONNECTING THE RECEIVER WITH DISH SYSTEM

After installing your antenna system, connect the coaxial cable from the

LNB of your antenna to "LNB" terminal marked at the rear

of the

STB

All cable connectors should be finger tightened; do not use any kind

of wrench while tightenning connectors. The cable should be 75ohm

impedance coaxial twisted at the end with an "F" type connector.

3. CONNECTING THE RECEIVER TO TV

To connect the receiver with your television, you can use Scart Cable.

In the case of connecting your TV through

SCART

cable, connect the

SCART

connector marked TV to the respective

SCART

port on the TV.

4. CONNECTING YOUR VCR

To connect a VCR, the

STB

has been provided with SCART at the rear

marked "VCR".

Using a SCART connector, the VCR can be connected to the receiver.

NNoottee : This is supported by standby.

5. CONNECTING YOUR DIGITAL AUDIO SYSTEM

If you have a DAC with S/PDIF optical cable input, you can connect the STB

with it to enjoy higher quality sound. Connect S/PDIF optical cable to a digital

amplifier.

6. INSERTING SMARTCARDS FOR VIACCESS SERVICES

(For model DSB-9401V)

In order to view a scrambled service, you need to have a valid Smartcard.

This DSB-9401V has the Viaccess CAS embedded to view Viaccess programmes.

NNoottee : Insert the Smartcard with the gold coloured chip facing downwards.

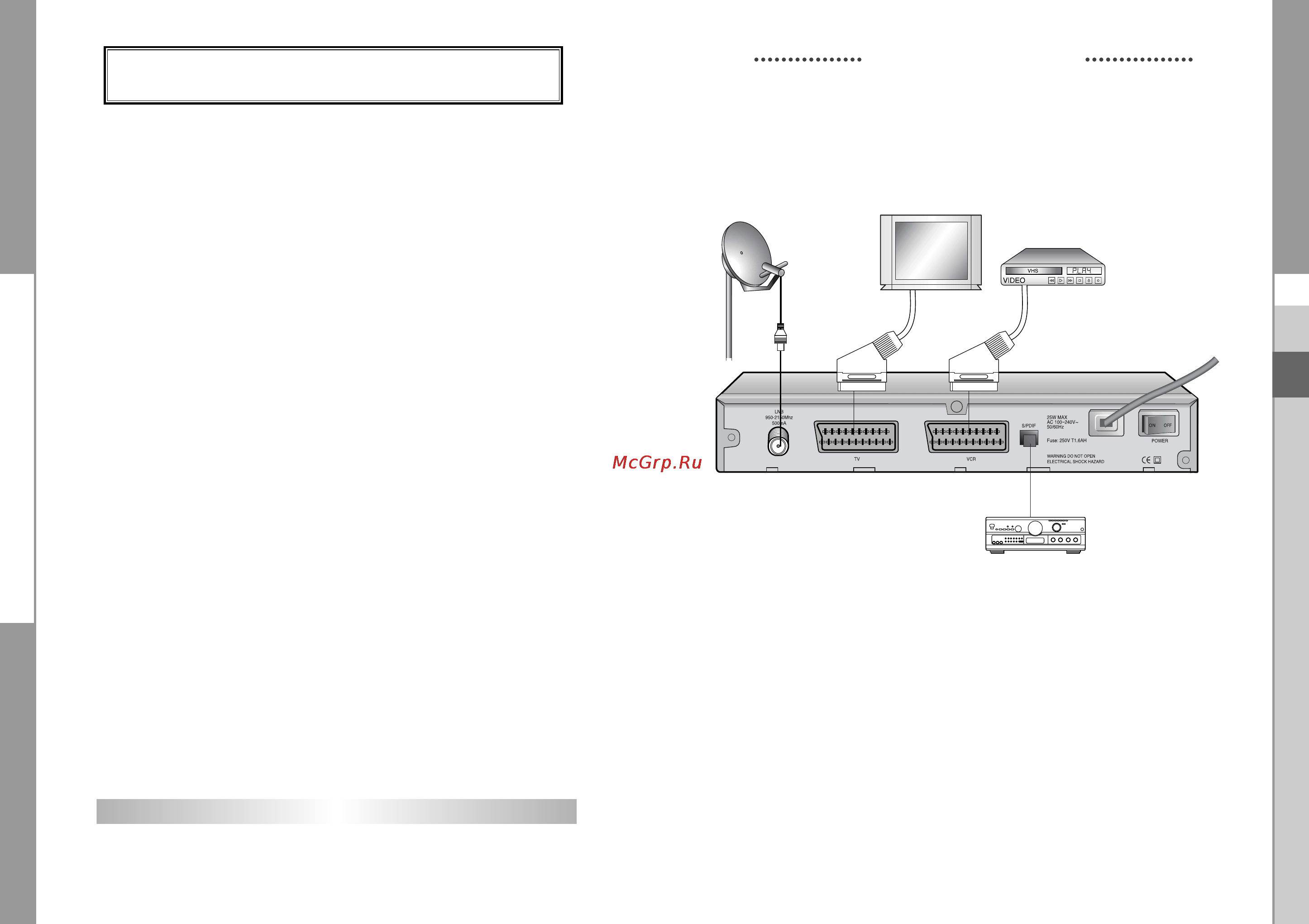

Connecting Figure

CONNECTING YOUR "STB"

MF68-00262C_GB 7/8/04 9:59 PM Page 4
