CLEANING AND MOUNTING OVEN DOOR

Reversely perform respectively what you did while opening door to

reinstall oven door back.

Soft Close Door:

The Soft-Closing Door gently, safely and silently closes. When the door

is pushed, the hinge automatically catches the door, causing it to move

smoothly through the nal few centimetres, so that it slowly and quietly

comes to a stop. Oven door opens slowly and prevents the crashing to

the ground.

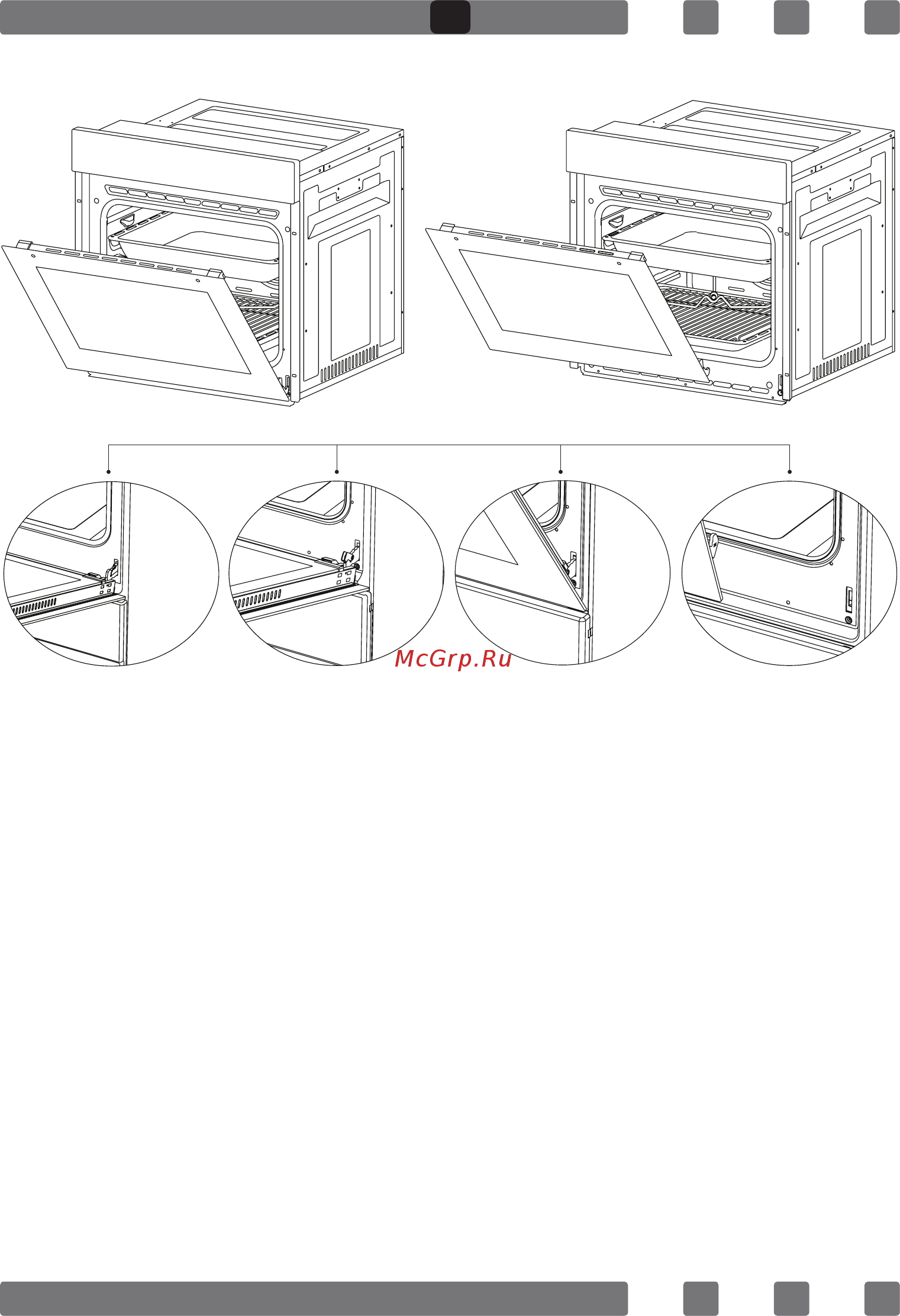

Figure 16

Figure 16.1 Figure 16.2 Figure 17.1 Figure 17.2

Figure 17

Open the door fully

by pulling the oven

door toward yourself.

Then perform unlock

operation by pull-

ing the hinge lock

upwards with the

aid of screwdriver as

indicated in

Figure 16.1.

Set the hinge lock to

the widest angle as

in Figure 16.2. Adjust

both hinges connect-

ing oven door to the

oven to the same

position.

Later, close the

opened oven door so

that it will be in a

position to contact

with hinge lock as

in Figure 17.1.

For easier removal

of oven door, when

it comes close to

closed position, hold

the cover with two

hands as in Figure

17.2 and pull

upwards.
