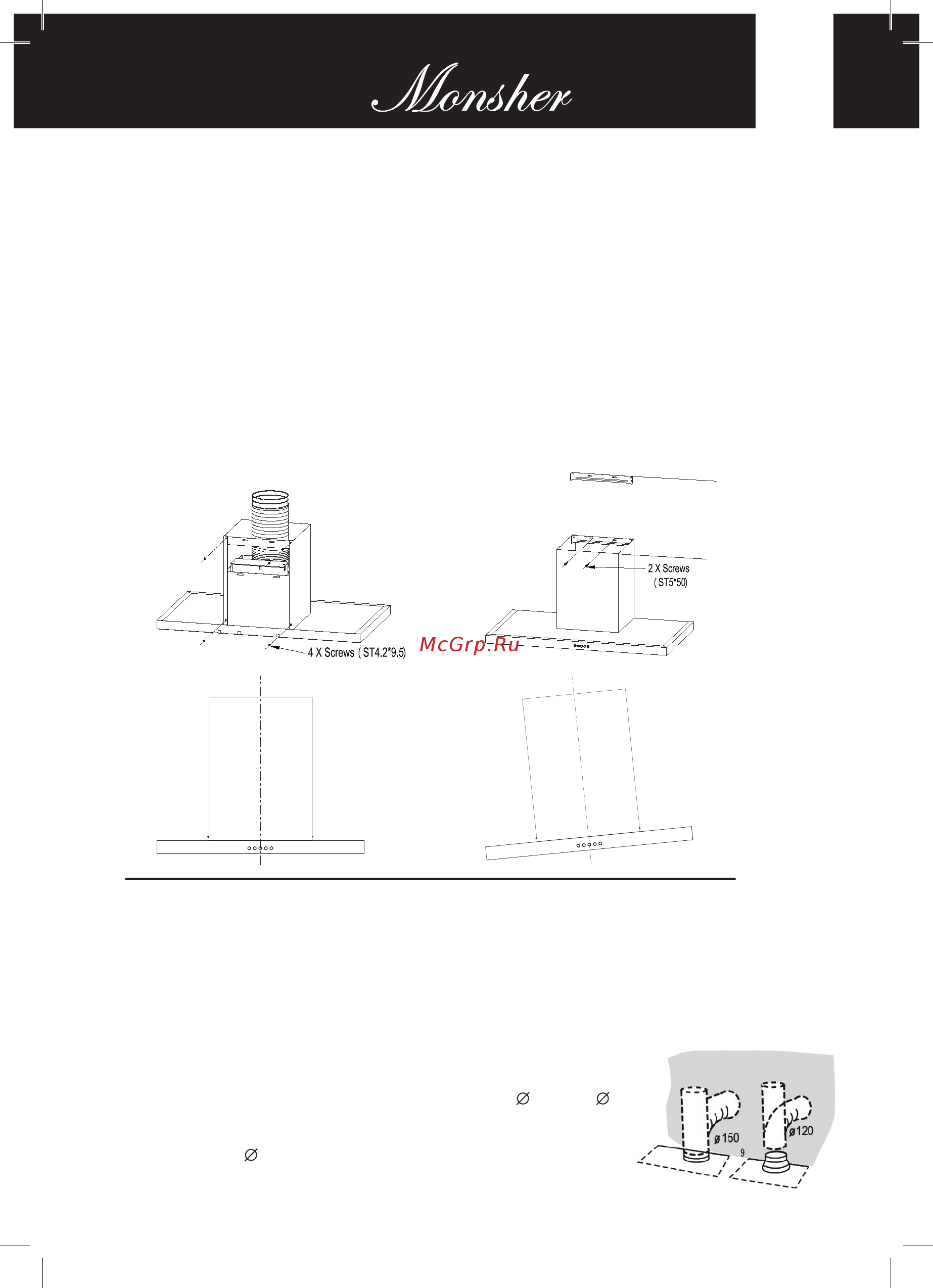

Monsher COCOS 60 X [7/32] Right wrong

English

• Insert the Wall Plugs 11 into the holes.

• Fix the hood fixing bracket 20 with 3 screws 10 (5 x 50) at the horizontal line A.

• Fix a Chimney fixing bracket 21 with 2 screws 10 (5 x 50) at the horizontal line C

Lower decorative chimney

• Fix the exhaust pipe on the hood body, connect chimney and hood body with 2

screws 12.

Hook the hood body

• Hook the hood body to the hood fixing bracket 20. Level the hood body itself.

• Fix a Chimney fixing bracket 21 with 2 screws 10 (5 x 50) at the horizontal line

B to prevent the hood body from accidently sliding off the hood fixing bracket.

CONNECTIONS

DUCTED VERSION AIR EXHAUST SYSTEM

When installing the ducted version, connect the hood to

the chimney using either a flexible or rigid pipe 1150 or 120

mm, the choice of which is left to the installer.

• If to install a 120 mm air exhaust connection, insert the

reducer flange 3 on the hood body outlet.

Right Wrong
