Fluke 434/435

Users Manual

20-6

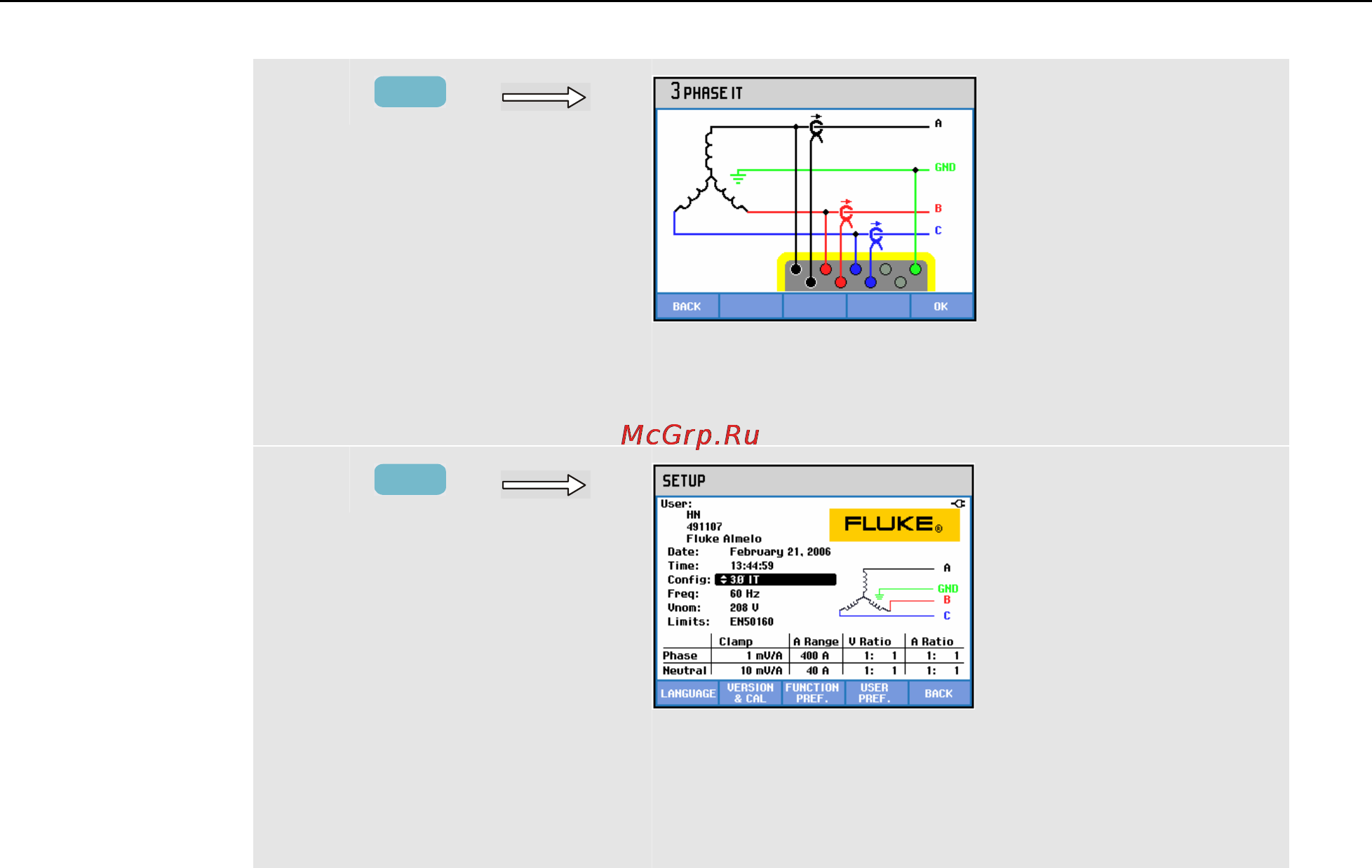

An information screen shows up that informs you

on how to connect the Analyzer to the power

system under test. When done press F5.

Return to Setup entry screen. The new

configuration is indicated behind Config. and the

belonging configuration symbol is shown on the

right side of the screen.
