Fluke 434 [59/140] Chapter 13

13-1

Chapter 13

Unbalance

Introduction

Unbalance displays phase relations between voltages and currents. Measuring results are

based upon the fundamental frequency component (60 or 50 Hz using method of

symmetrical components). In a 3-phase power system, the phase shift between voltages

and between currents should be close to 120°. Unbalance mode offers a Meter screen, a

related Trend display, and a Phasor display.

Meter screen

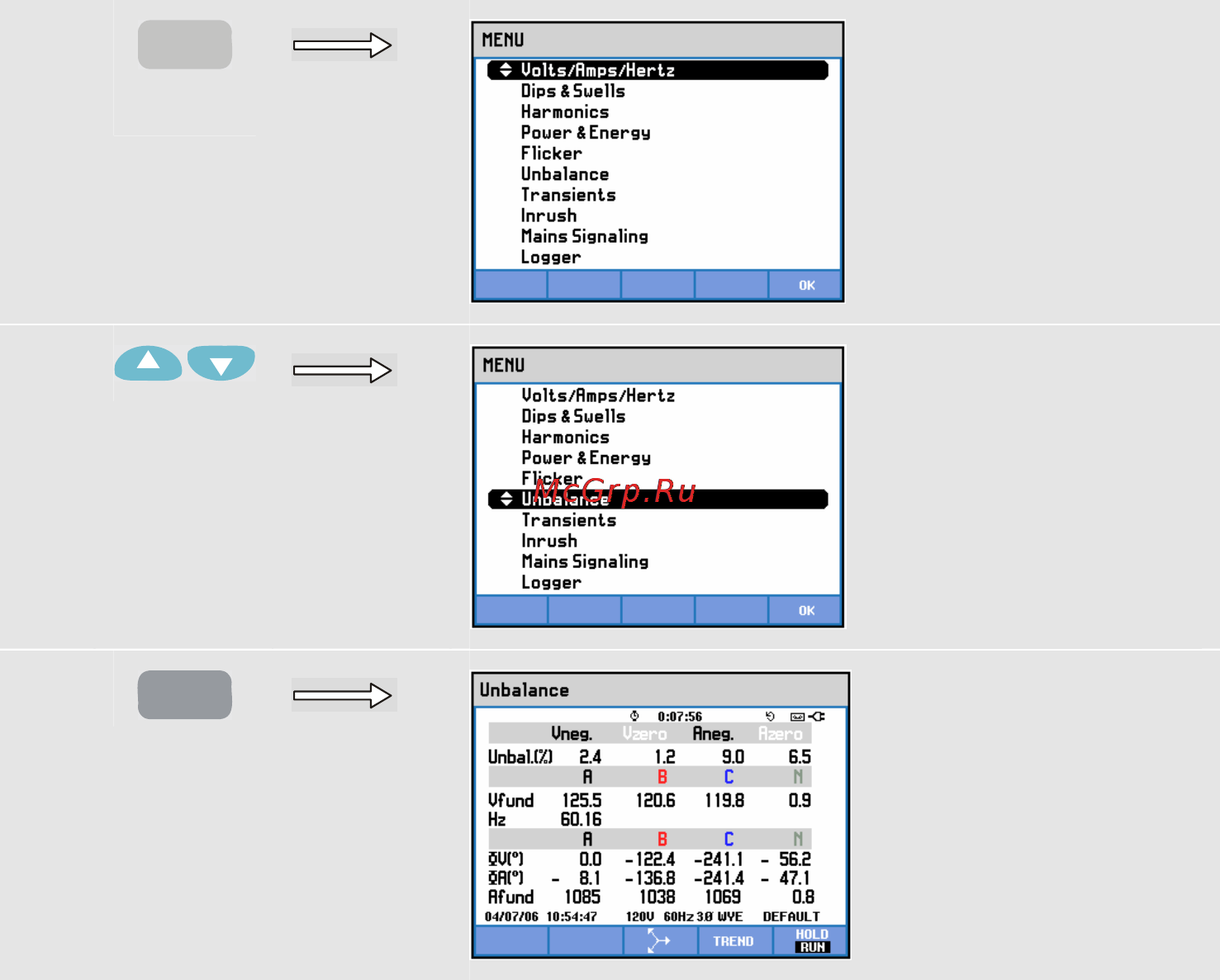

To access the Unbalance Meter screen:

ENTER
