Fluke 434/435

Users Manual

16-2

ENTER

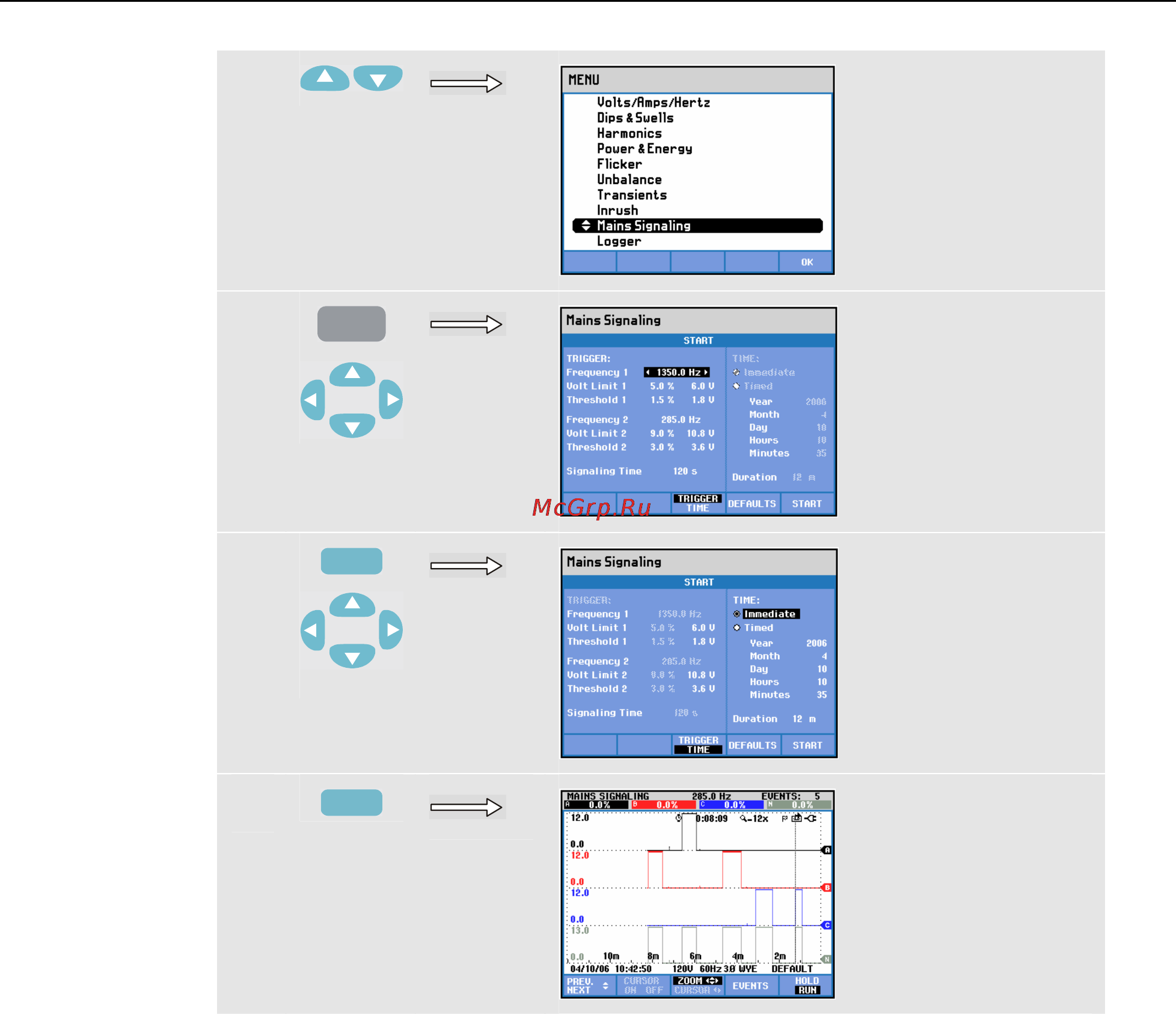

The traces build up from the right side. Readings in the header correspond to the most

recent values plotted on the right. With the up/down arrow keys you can select readout as

a percentage of nominal line voltage or as a 3 second average voltage (V3s).

The Neutral conductor is not used for Mains Signaling, but is shown for troubleshoot

purposes.
