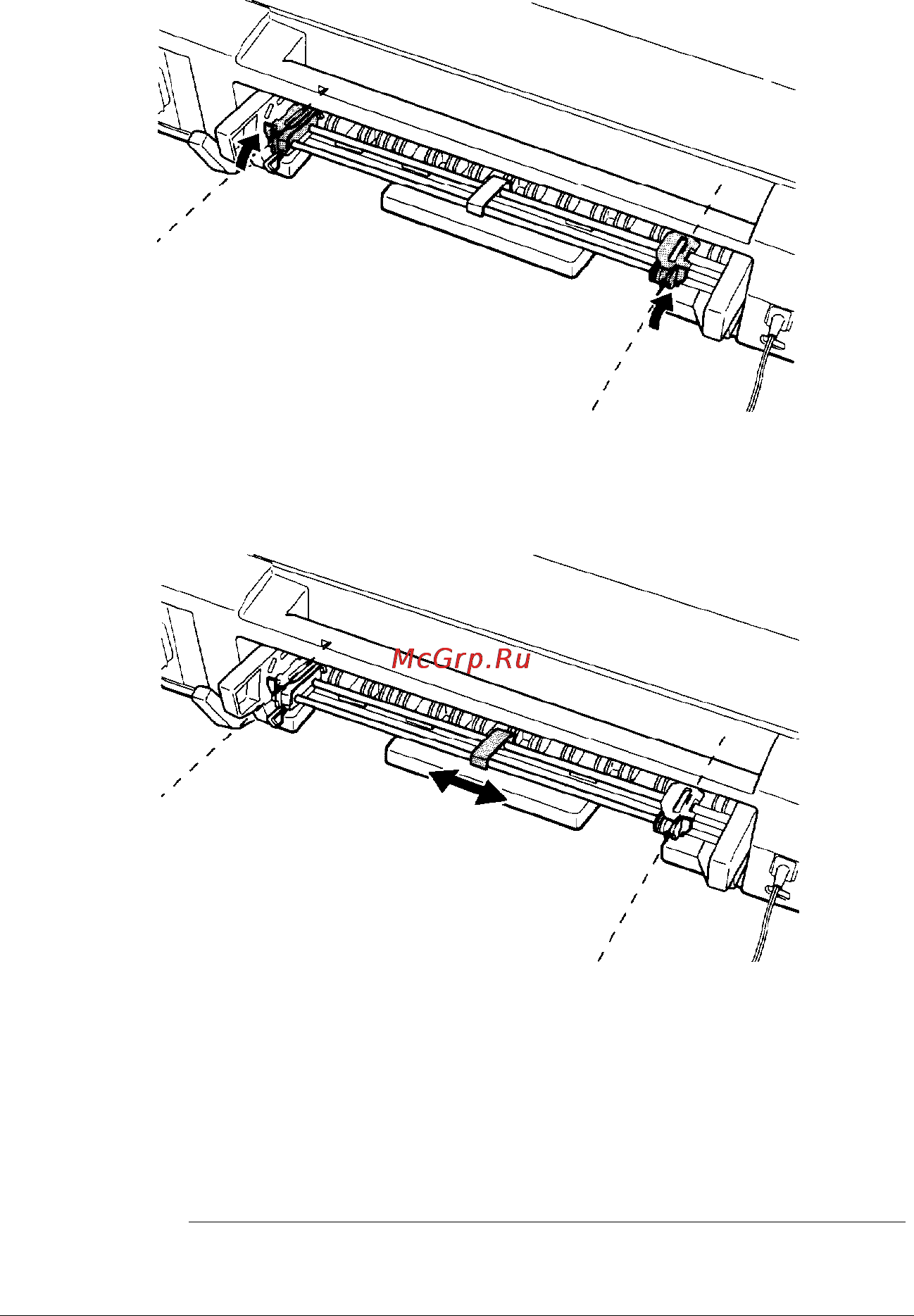

Release the sprocket units by raising the sprocket-lock levers.

Align one sprocket unit with the mark as shown below.

Slide the other sprocket unit to match the width of your

paper, but do not lock it.

Position the center support midway between the two

sprocket units.

Open both sprocket covers.

Paper Handling

2-9
