Ebara CVM A/10 [4/18] Performance range and selection chart

MULTISTAGE CENTRIFUGAL PUMPS CVM

SELECTION CHART 50Hz

201

EBARA PUMPS EUROPE S.p.A.

Rev. I

PERFORMANCE RANGE

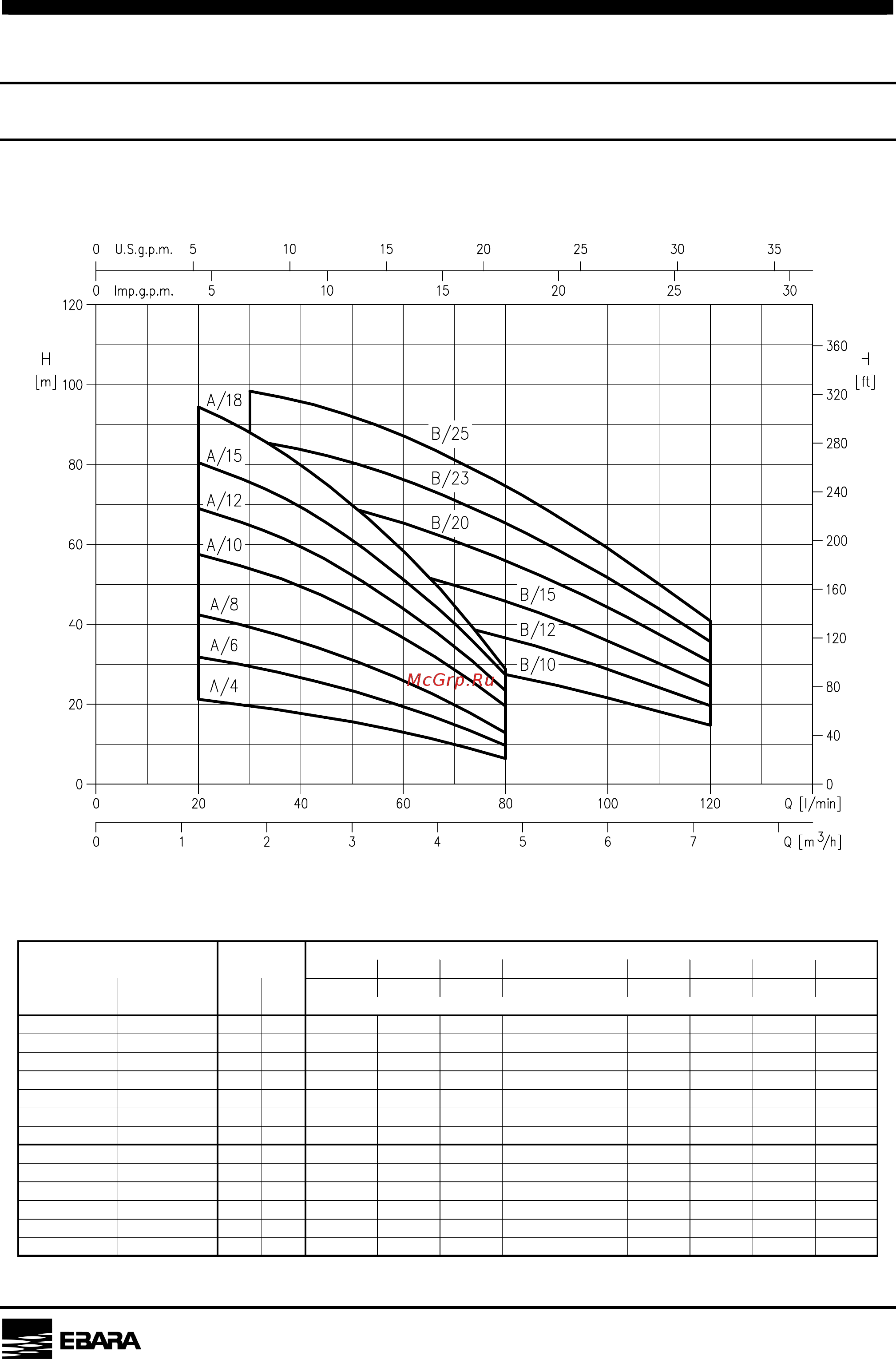

SELECTION CHART

l/min 0 20 30 40 50 60 80 100 120

m³/h 0 1.2 1.8 2.4 3 3.6 4.8 6 7.2

CVM AM/4 CVM A/4 0.3 0.4 23.8 21.2 19.7 17.8 15.6 13.0 6.4 - -

CVM AM/6 CVM A/6 0.44 0.6 35.7 31.8 29.5 26.7 23.3 19.4 9.6 - -

CVM AM/8 CVM A/8 0.6 0.8 47.5 42.5 39.4 35.6 31.1 25.9 12.8 - -

CVM AM/10 CVM A/10 0.75 1 62.5 57.5 54.0 49.5 43.5 36.6 19.5 - -

CVM AM/12 CVM A/12 0.9 1.2 75.0 69.0 65.0 59.5 52.5 44.0 23.4 - -

CVM AM/15 CVM A/15 1.1 1.5 87.5 80.5 75.5 69.5 61.0 51.0 27.3 - -

CVM AM/18 CVM A/18 1.3 1.8 103.0 94.5 88.0 80.0 70.0 58.5 28.8 - -

CVM BM/10 CVM B/10 0.75 1 38.1 - 36.2 35.1 33.7 32.0 27.5 21.6 14.7

CVM BM/12 CVM B/12 0.9 1.2 51.0 - 48.0 46.8 45.0 42.6 36.6 28.8 19.6

CVM BM/15 CVM B/15 1.1 1.5 63.5 - 60.5 58.5 56.2 53.3 45.8 36.0 24.5

CVM BM/20 CVM B/20 1.5 2 78.5 - 74.0 72.0 69.0 65.5 56.0 44.5 30.6

CVM BM/23 CVM B/23 1.7 2.3 91.5 - 86.0 84.0 80.5 76.5 65.5 51.5 35.7

- CVM B/25 1.85 2.5 105.0 - 98.5 96.0 92.0 87.0 74.5 59.0 41.0

Q=Capacity

H=Total manometric head in meters

Pump type

Three PhaseSingle Phase [kW] [HP]

Power
