Your Life, our Quality. Worldwide. Residential

The contents of this publication must not be regarded as binding. EBARA Pumps Europe S.p.A. reserves the right to effect any modification it deems necessary, without prior notice.

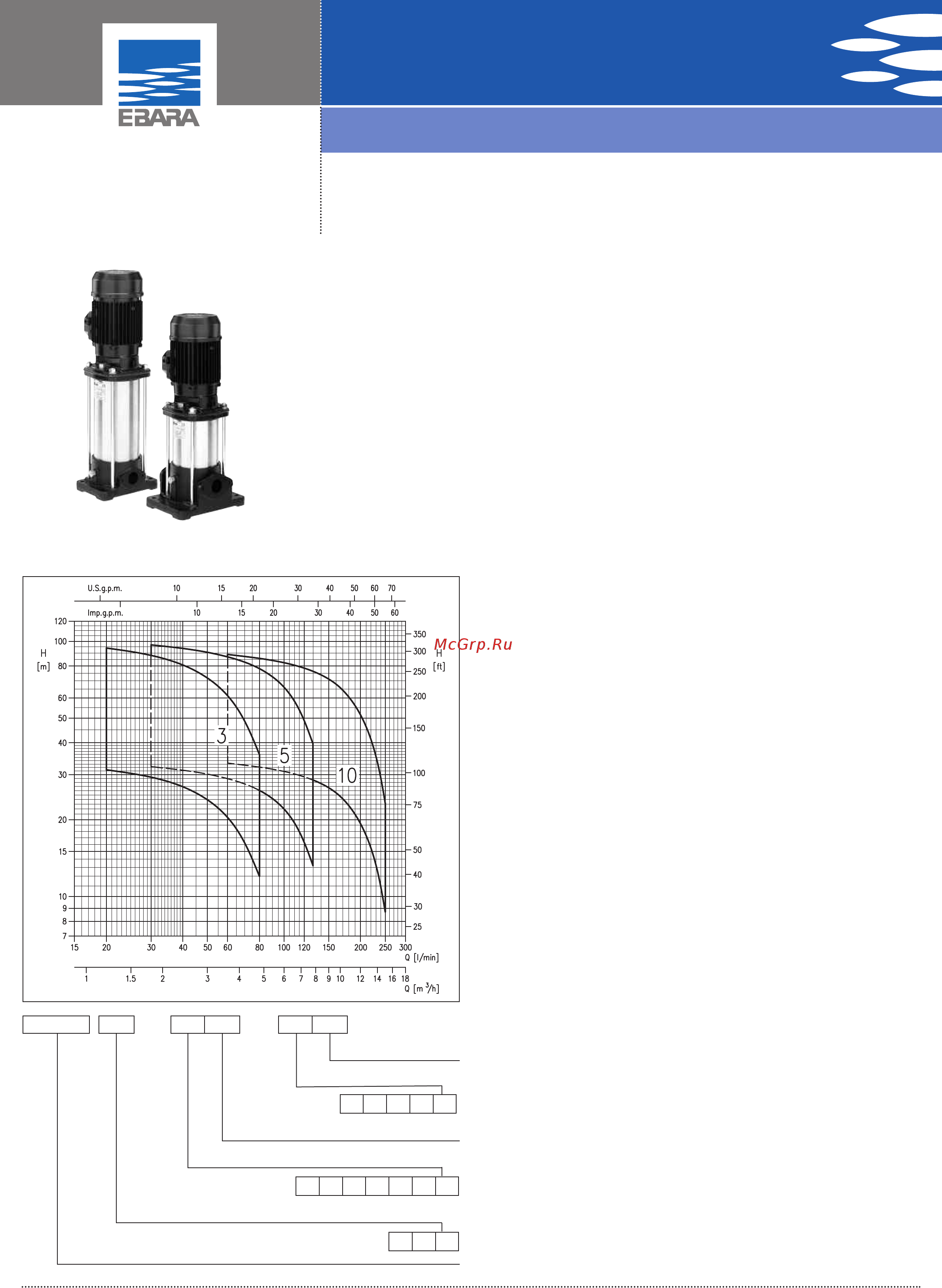

HVM

VERTICAL MULTISTAGE CENTRIFUGAL ELECTRIC PUMPS

in AISI 304

V

ertical multistage centrifugal electric pumps in AISI 304 stainless steel.

APPLICATIONS

• Treating water

TECHNICAL DETAILS

• Openings in-line

• Strong and compact construction

• Wide range of models available in different numbers of stages to

guarantee requested flow rate and head

• Supplied complete with standard counter-flanges (in compliance with ISO

228)

PUMP TECHNICAL DATA

• Maximum working pressure: 10 bar

• Maximum temperature of the liquid: 90°C

MOTOR TECHNICAL DATA

• High efficiency motors IE2 starting from 0,75kW

• T.E.F.C. 2 poles motor

• Class of insulation F

• IP55 Protection degree

• 230V ±10%, 50Hz single phase voltage,

230/400V ± 10%, 50Hz three phase voltage

• Permanent capacitor inserted and thermo-amperometric protection with

automatic rearm incorporated for the single phase motor

• Circuit breaker protection under user's responsibility for the three phase

CONTROL PANELS

• 1EPBH

ACCESSORIES (on request)

• 5 litre 10 bar ¾ EPDM vessel

• 24 litre 8 bar 1” EPDM vessel

• 24 litre 10 bar 1” EPDM vessel

• 24 litre 16 bar 1” EPDM vessel

• PVC 5m key float with counter-weight

• PVC 10m key float with counter-weight

• SQUARE-D FSG-2 1.4÷4.6 bar G¼ F pressure switch

• E-drive - Frequency converter

PERFORMANCE RANGE (

according to ISO 9906 Attachment A)

HVM 3

- N M
