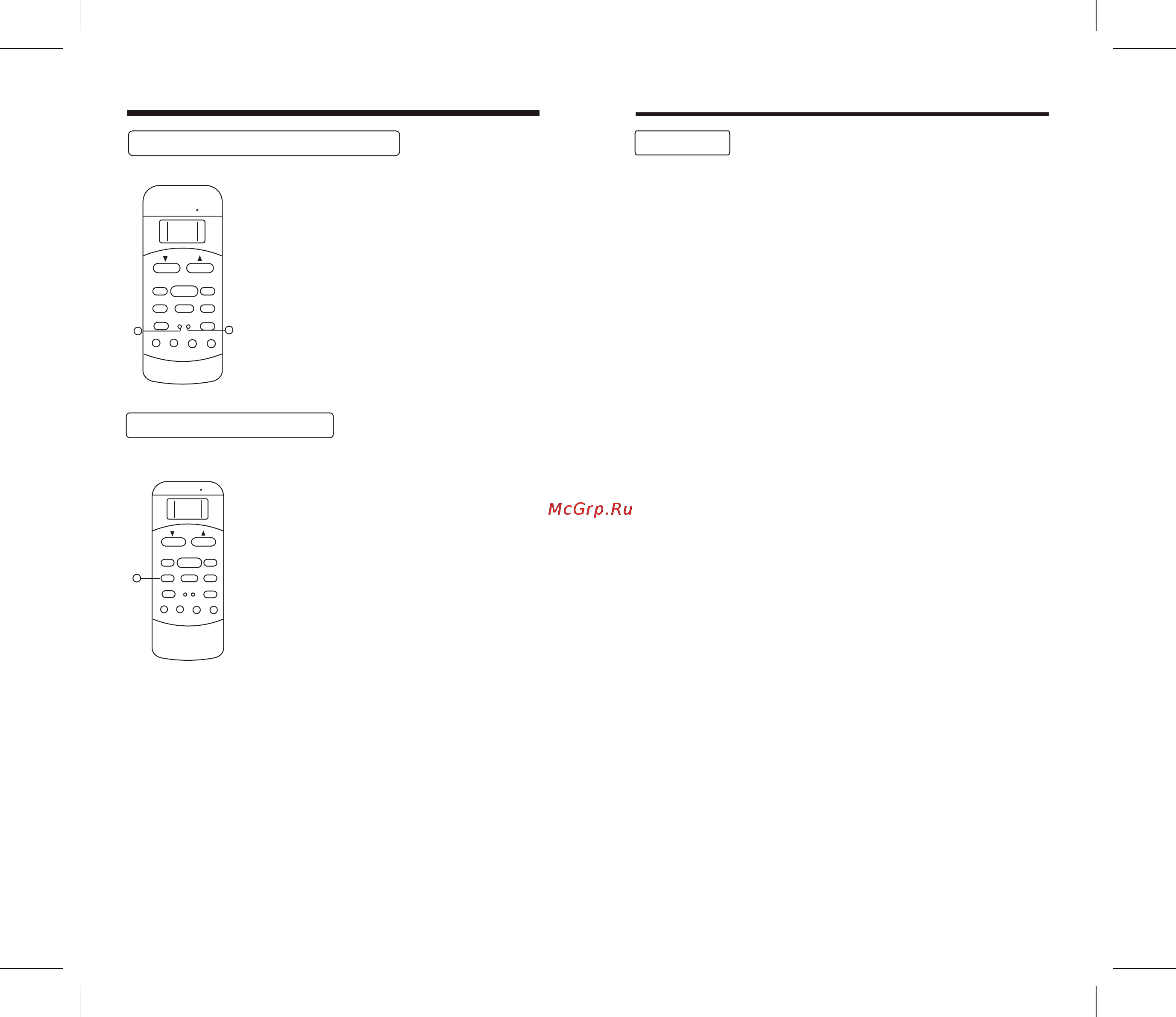

Reset and Lock buttons function
1
1. When you press the recessed LOCK button,
all current settings are locked in and remote
controller does not accept any operation
except that of the LOCK.
Use the LOCK mode when you want to pre-
vent settings from being changed accidentally.
Press the LOCK button again when you want
to cancel the LOCK mode.
A lock symbol will appear on the bottom right
hand side of the remote controller display
when the LOCK function is activated.
2. When you press the recessed RESET button,
all current settings are cancelled and return
to original factory settings.
2
Air direction button function
Use the SWING button to activate AUTO swing
function and lock louver in desired position.
1. When press this button once and quickly, the
air flow direction setting feature of the louver is
activated. The moving angle of the louver is
o
6 for each press. Keep pressing the SWING
button to move the louver to the desired position.
2. When press the button without releasing for 2
more seconds, the auto swing feature of the
louver is activated. The horizontal louver would
swing automatically. Press it again to stop.
NOTE: When the louver swing or move to a
position which would affect the cooling
and heating effect of the air conditioner,
it would automatically change the swing/
moving direction(upward or downward).
1
12
13
Cautions
1. When replacing batteries, do not use old batteries or different type
batteries. Otherwise it may cause the remote controller to malfunction.
2. If you do not use the remote controller for a few weeks or more, remove
the batteries. Otherwise, battery leakage may damage the remote
controller.
3. The average battery life during normal use is approximately half a year.
Replace the batteries when there is no receiving beep from the indoor
unit or if the transmission indicator on the remote controller fails to light.
4. Be sure there are no barriers between the remote controller and the receiver
of indoor unit otherwise the air conditioner will not work.
5. Keep the Remote Controller away from all liquids.
6. Protect the Remote Controller from high temperatures and exposure to
radiation.
7. Keep the indoor receiver out of direct sunlight or the Air Conditioner may
malfunction.
8. Keep controller away from EMI (Electro-Magnetic Interference) supplied by
other household appliances.
ADJUST
AUTO
COOL
DRY
HEAT
HEALTH
HIGH
MED
LOW
MODE
FAN SPEED
SWING
TIMER ON
SLEEP
ON/OFF
TIMER OFF
SELF
CLEAN
RESET LOCK
SET TEMPERATURE( C)
FOLLOW
ME
LED
DISPLAY
CLEAN
AIR
TURBO
ADJUST
AUTO
COOL
DRY
HEAT
HEALTH
HIGH
MED
LOW
MODE
FAN SPEED
SWING
TIMER ON
SLEEP
ON/OFF
TIMER OFF
SELF
CLEAN
RESET LOCK
SET TEMPERATURE( C)
FOLLOW
ME
LED
DISPLAY
CLEAN
AIR
TURBO
1. При замене батарей не устанавливайте
старые батареи или батареи разных видов. Это может вызвать
неисправность пульта ДУ.
2. Перед длительным (несколько недель) перерывом в использовании
пульта ДУ нужно вынуть батареи из пульта. Иначе батареи могут
протечь и повредить пульт.
3. В среднем батареи работают примерно полгода при нормальной
нагрузке. Замените батареи, когда внутренний блок перестанет
подавать ответные звуковые сигналы или перестанет загораться
индикатор передачи на пульте.
4. Между пультом дистанционного управления и приемником на
внутреннем блоке не должно быть препятствий, иначе кондиционер не
будет работать.
5. Берегите пульт ДУ от жидкостей.
6. Берегите пульт ДУ от воздействия высокой температуры и излучения.
7. Не допускайте попадания прямых солнечных лучей на пульт ДУ, иначе
кондиционер не будет работать.
8. Не допускайте воздействия на пульт ДУ электромагнитного излучения
от других бытовых электроприборов.
Кнопки Reset и Lock
Кнопка AIR DIRECTION
1. При нажатии углубленной кнопки LOCK
фиксируются все текущие настройки,
и пульт ДУ не реагирует на любые
команды, кроме нажатия кнопки LOCK.
Этот режим удобен для защиты от
случайного изменения настроек.
Повторным нажатием кнопки «замок»
выключается. Когда включен «замок», в
правом нижнем углу экрана на пульте
ДУ появляется соответствующий
индикатор.
2. При нажатии углубленной кнопки RESET
происходит сброс всех текущих настроек,
и восстанавливаются первоначальные
настройки системы.
Кнопка SWING включает автоматическое
перенаправление воздушного потока и
останавливает направляющую решетку в нужном
положении.
1. Чтобы включить настройку положения
решетки, нужно один раз быстро нажать
кнопку SWING. С каждым нажатием
кнопки угол наклона изменяется на 6º.
Нажимая кнопку SWING, поверните
решетку в нужное положение.
2. Если нажать кнопку SWING и удерживать
ее нажатой 2 секунды, включится функция
автоматического направления воздуха.
Горизонтальная решетка начнет качаться
Повторное нажатие кнопки выключает
движение.
ПРИМЕЧАНИЕ: Если угол изменится настолько, что
положение решетки будет уменьшать охлаждающее
или нагревающее действие кондиционера, то
направление движения решетки изменится
автоматически (вверх или вниз).
Осторожно
