Soundmax SM-LCD810 [7/24] Menu operation

Connection Method of AV Input

1.Insert the external video cord into the

yellow port of the AV exchange head,

the left sound track into the white port

and the right sound track into the red

port. Then plug the AV exchange head

in AV1/IN jack.

2.Insert the external video cord into the

yellow port of the AV exchange head,

the left sound track into the white port and the right sound track into the

red port. Then plug the AV exchange head in AV2/IN jack.

2. Basic operation methods of TV set

- Connect with power supply and turn on the power switch. While the

TV is in normal status, the power indicator is green. If it is red,

please press Power button on panel or control.

- Pull out telescopic antenna.

- Press CH-/CH+ to choose the desired channel.

- Adjust the sound volume of the TV signal.

Menu operation

1. Connect the power and turn on the power switch.

2. Extend the antenna.

3. Use the CH +/- buttons to find the necessary channel.

4. Use the VOL +/- button to regulate the volume level.

5. Press the MENU button on the unit or remote control to select among

different Menu pages, i. e. Picture, Option, Clock, System and

Preset.

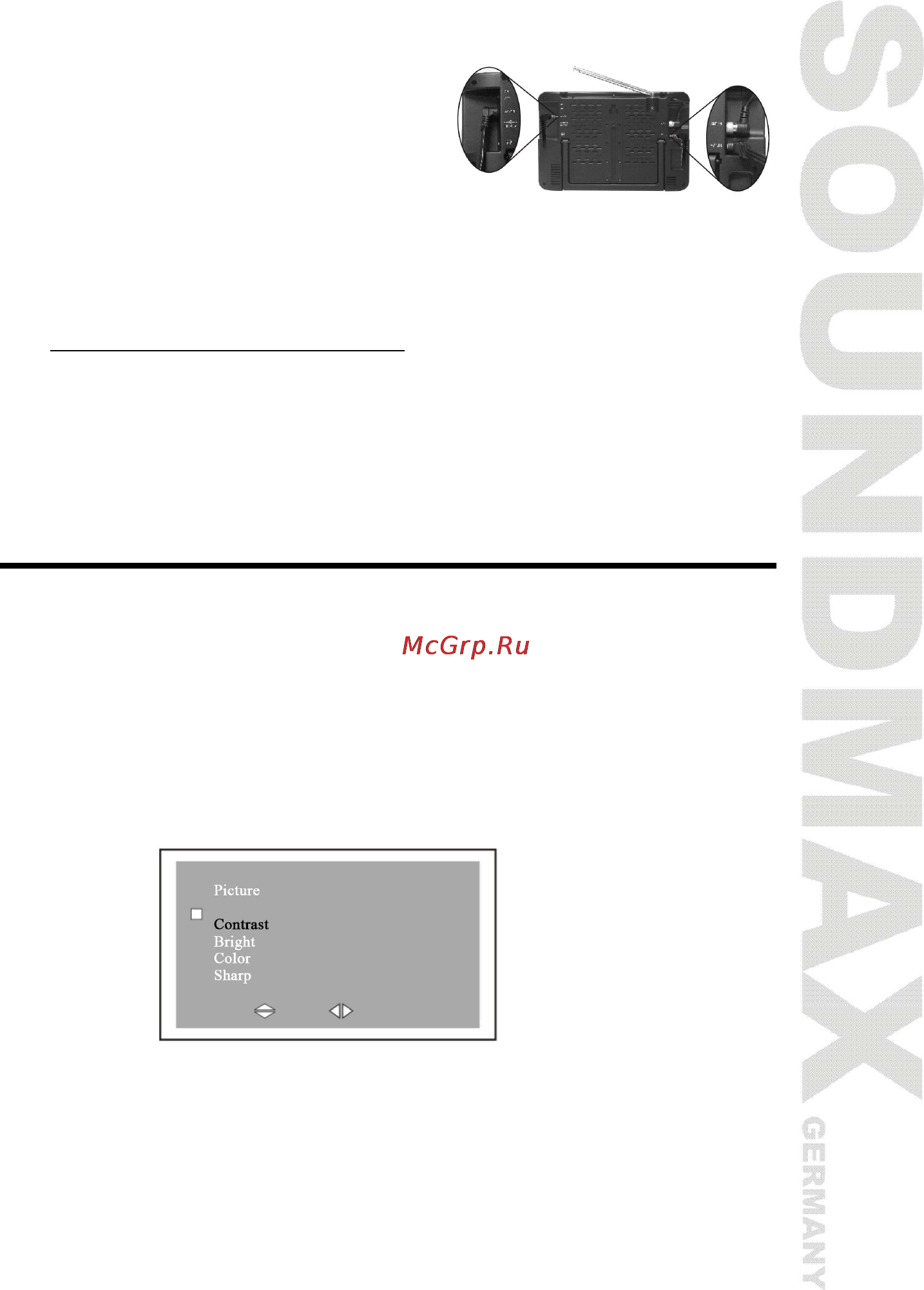

Menu Picture

Press MENU to enter into menu Picture. Press CH +/- to select and press

VOL +/- to change setting.

a. Contrast: Use CH +/- buttons to select this item, then press VOL

+/- to increase/decrease the contrast.

b. Brightness: Use CH +/- buttons to select this item, then press VOL

+/- to increase/decrease the brightness.

c. Color: Use CH +/- buttons to select this item, then press VOL +/- to

increase/decrease the color saturation.

d. Sharp: CH +/- buttons to select this item, then press VOL +/- to

increase/decrease the sharpness.

Note: Only when displaying the picture of NTSC system, it will show the

character of TINT in the Picture menu.
