Soundmax SM-LCD715 [6/22] Installation and connection

PICTURE button: Press to select picture mode Standard/Bright/Soft/

Gorgeous.

Cursor buttons (UP/DOWN/LEFT/RIGHT)

: Press to navigate in various menus.

While playing a picture file from USB/memory card, press to rotate the

picture.

Installation and connection

Stand installation:

 Release the metal washer on the top of the bracket but do not separate it

from the bracket.

 Insert the metal washer with the bracket into a hollow at the back of the

unit and move the bracket up to a suitable height.

 Tighten the front screw up on the bracket to fix the stand with the unit.

 Control the screen angle with the lateral screw.

 Screw the stand to the bracket.

Connection of the antenna:

Plug the antenna into the Antenna in slot situated on the rear panel of the unit.

Connection of earphone:

Connect the headphone to the earphone jack for private listening. The

speakers will not operate when headphones are connected.

Connection to power source:

Connect one round end of attached AC/DC adaptor or car adaptor to the

power source input socket and the other end to the wall outlet at the suitable

voltage. When in house, use the AC/DC adaptor; for car use, connect with the

car adaptor (adaptors included should be only used). Press POWER button to

turn on the unit.

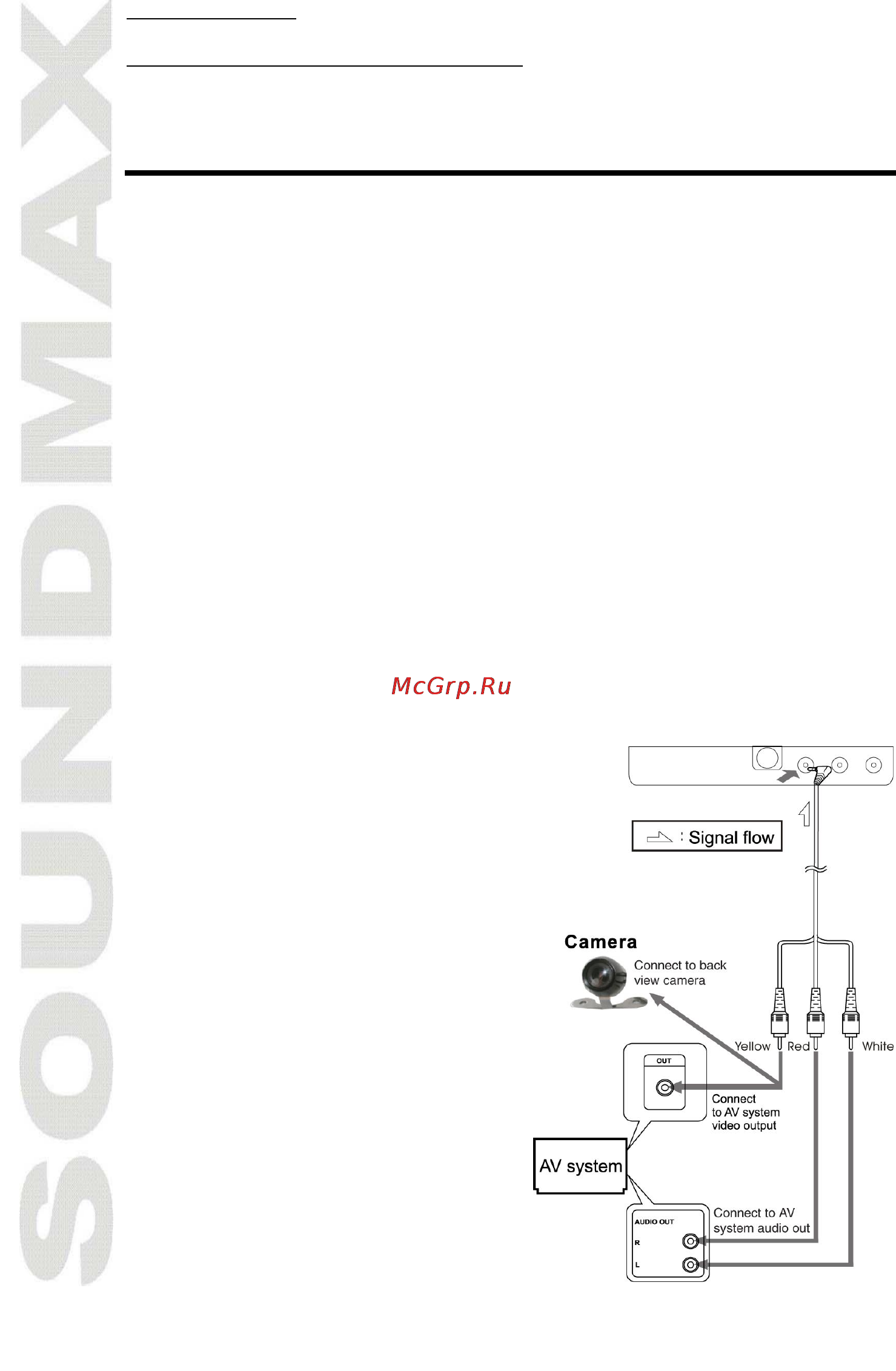

AV input connection

Connect the AV cable as showed in the

picture below. After connection, switch the

unit to the AV mode.
