Installation and connection
Stand installation:
Release the front plastic nut on the top of the bracket but do not
separate it from the stand.
Insert the metal washer with the bracket into a hollow at the back
of the unit and move the bracket up to a suitable height.
Tighten the front plastic nut on the bracket to fix the bracket with
the unit.
Control the screen angle with the lateral screw.
Screw the stand to the bracket.
Connection of the antenna:
Plug the antenna into the Antenna jack situated on the rear panel of the
unit.
Connection of headphone:
Connect the headphone to the headphone jack for private listening. The
speakers will not operate when headphones are connected.
Connection to power source:
Connect one round end of attached AC/DC adaptor or car adaptor to the
power source input jack and the other end to the wall outlet at the
suitable voltage. When in house, use the AC/DC adaptor; for car use,
connect with the car adaptor (adaptors included should be only used).
Press POWER button to turn on the unit.
AV input connection

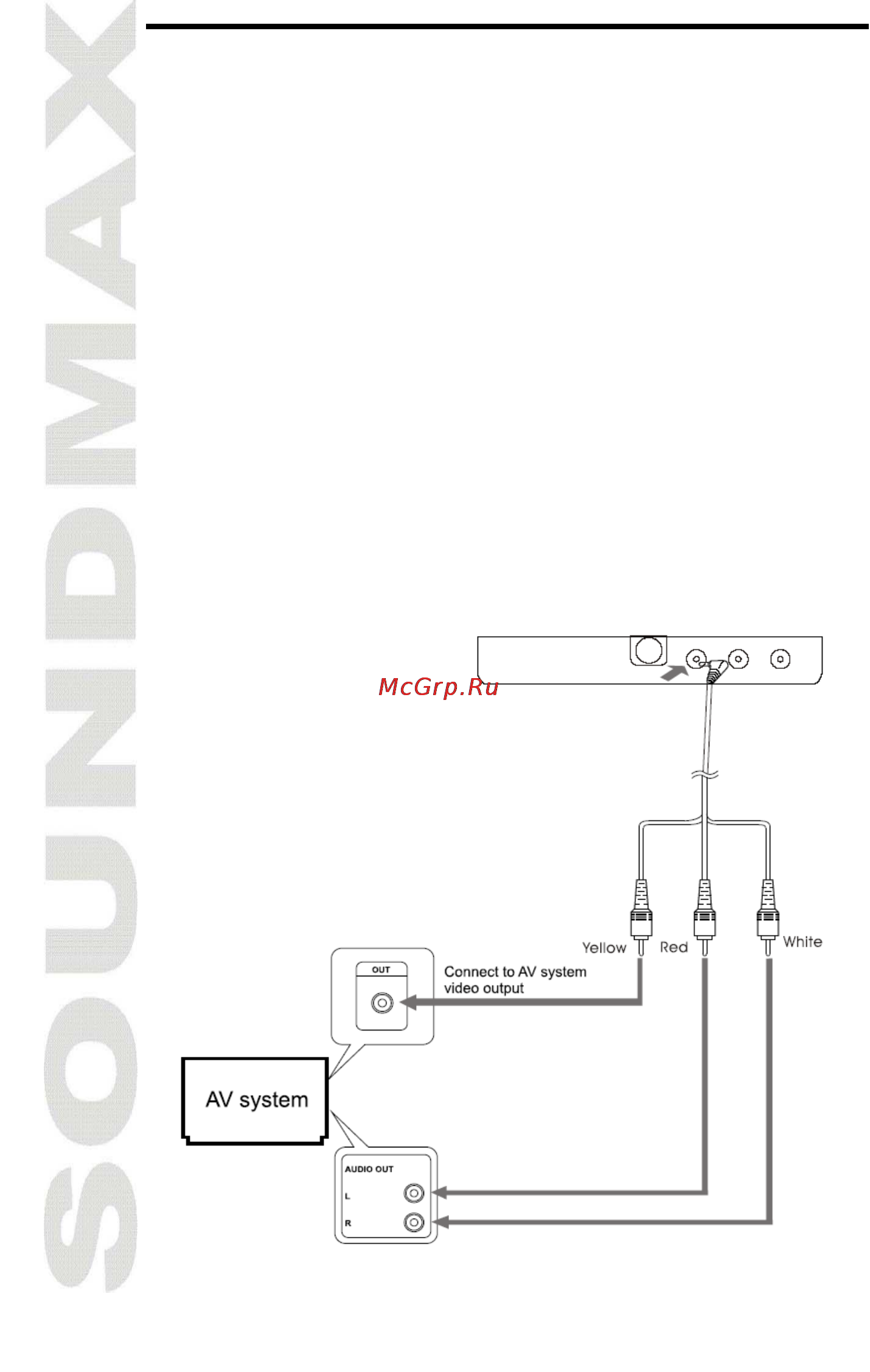

Connect the AV cable as showed in the picture below. After connection,
switch the unit to the AV mode.
