Soundmax SM-LCD711 [7/26] Installation and connection

Power Selection

1. 220V AC adapter

AC adapter (refer to product tag attached to the AC adapter) supplies

power to the television from 220V alternating current.

2. Automobile storage battery with 12V DC

Use automobile adapter (suitable for vehicles with negative grounding)

to supply power to the television from the automobile's storage battery.

3. Car Adaptor (DC 12V):

The car adaptor (apply to the car with "-" polarity connected to the

ground) allows the TV to be powered by a car battery through the

vehicle' s cigarette lighter.

Installation and connection

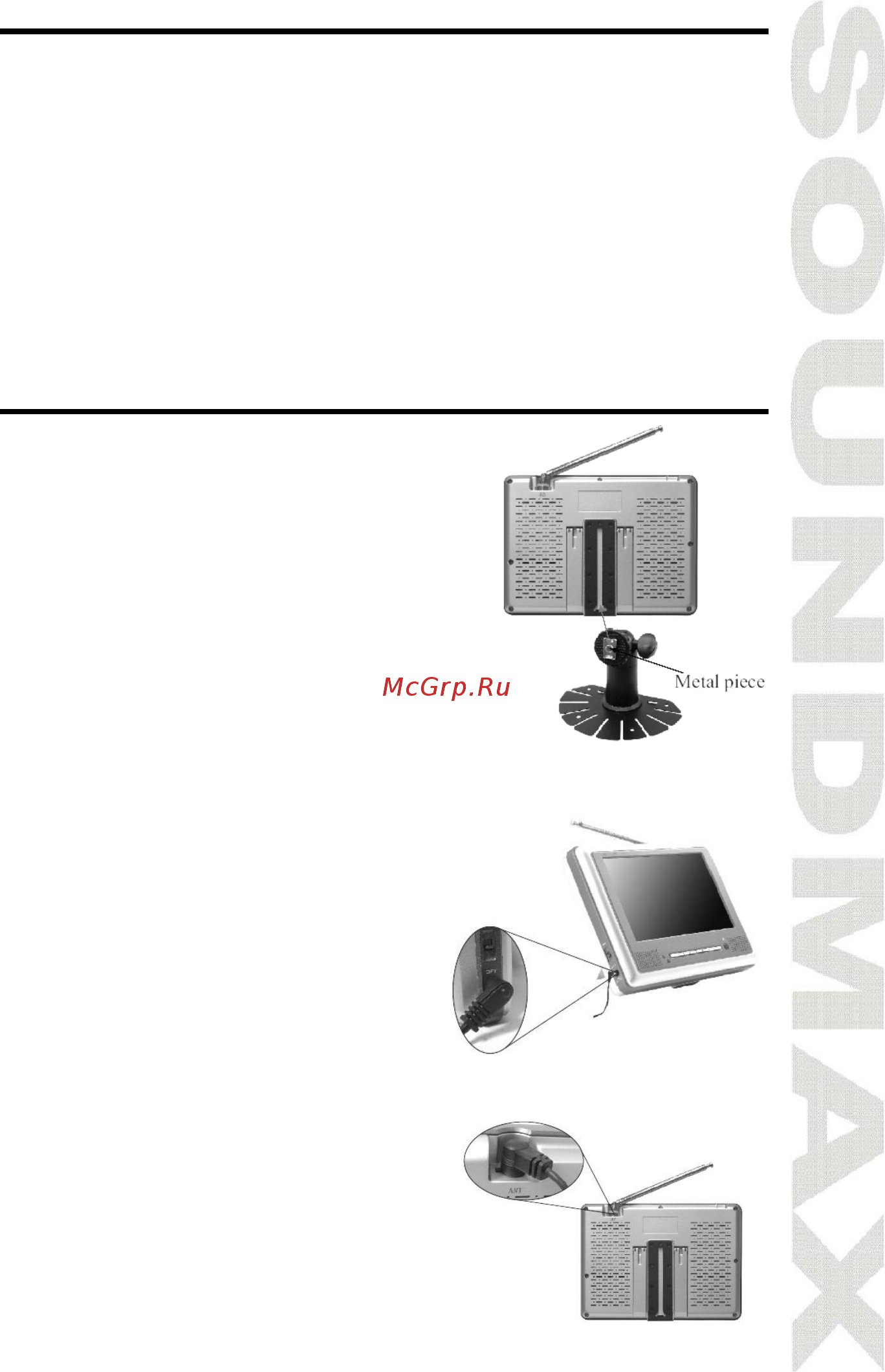

Installation of Base Support:

Align the screw bolt on the base support

with the bottom groove on hardware piece

of the rear TV cover before moving upward

and rotating the fixation button till fix the TV

set onto the support.

Connection of power supply:

Align the power supply plug on AC adapter

with the jack on the machine rear cover

marked with DC12V.

Connection of external antenna:

Align one end of the external antenna cord

plug with the external antenna jack on TV

set and the other end to connect the

external antenna head.
