Ebara CDXM 90/10 [4/5] Materials table

Your Life, our Quality. Worldwide. 10 Commercial

CDX

SINGLE IMPELLER CENTRIFUGAL ELECTRIC PUMPS

in AISI 304

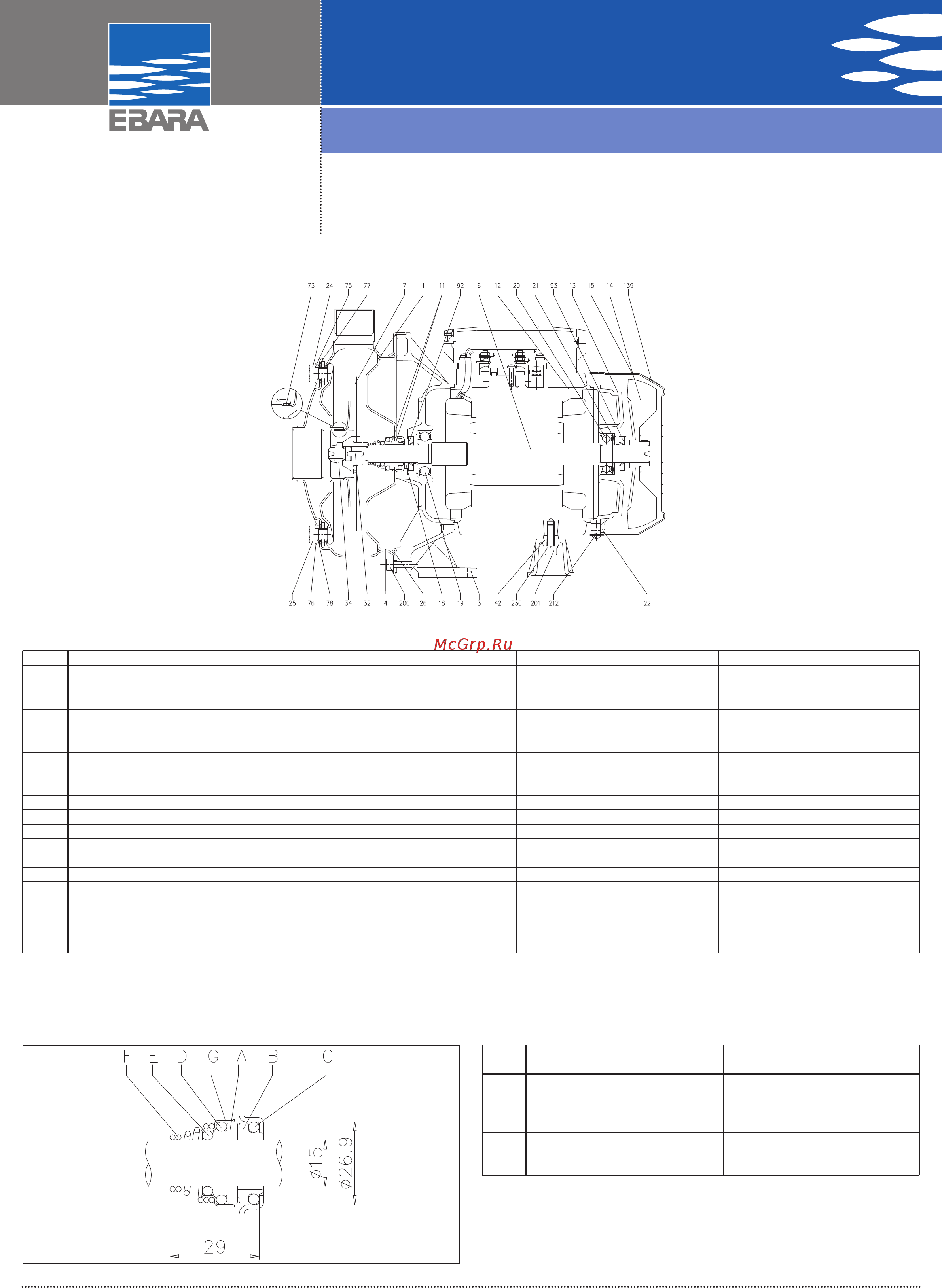

MATERIALS TABLE

Ref. Name Material Ref. Name Material

1 Pump body EN 1.4301 (AISI 304) 25 Drain plug AISI 303

3 Motor support Aluminium 26 O-Ring [3] NBR

4 Seal housing disc EN 1.4301 (AISI 304) 32 Key EN 1.4301 (AISI 304)

6 Rotor shaft

AISI 303

Part in contact with the liquid

34 Impeller nut EN 1.4301 (AISI 304)

7 Impeller EN 1.4301 (AISI 304) 42 Foot Aluminium

11 Mechanical seal [3] Carbon/Ceramic/NBR 52 Terminal box [2] Polypropylene

12 Motor case - 53 Terminal box cover [2] Polypropylene

13 Motor cover Aluminium 56 Terminal box cover gasket NBR

14 Fan Polypropylene 73 Wear ring [4] EN 1.4301 (AISI 304)

15 Fan cover Galvanised Fe P04 75 Washer EN 1.4301 (AISI 304)

16 Terminal box - 76 Washer EN 1.4301 (AISI 304)

17 Terminal box cover [1] Aluminium 77 O-Ring [3] NBR

18 Spray protector ring NBR 78 O-Ring [3] NBR

19 Bearing (pump side) - 90 Gasket NBR

20 Bearing (motor side) - 92 Sealing ring -

21 Adjusting ring Steel C70 93 Sealing ring -

22 Tie-rod Galvanised Fe 42 110 Motorprotector [2] -

23 Capacitor [2] - 200 Screw (pump body) A2 UNI7323 stainless steel

24 Filler cap AISI 303

ECTIONAL VIEW

[1]= For three-phase only

[2]= For single phase only

[3]= FPM for CDXH and CDXHS

[4]= NBR for: CDX 70/05, 70/07, 90/10, FPM for CDXH 70/05, 70/07, 90/10 and CDXHS 70/05, 70/07, 90/10

MECHANICAL SEAL CDX standard MATERIALS TABLE

Ref. Name Material

A Rotating part Ceramic

B Fixed part Carbon

C O-Ring NBR

D O-Ring NBR

E O-Ring NBR

F Spring AISI 316

G Structure/frame AISI 304
