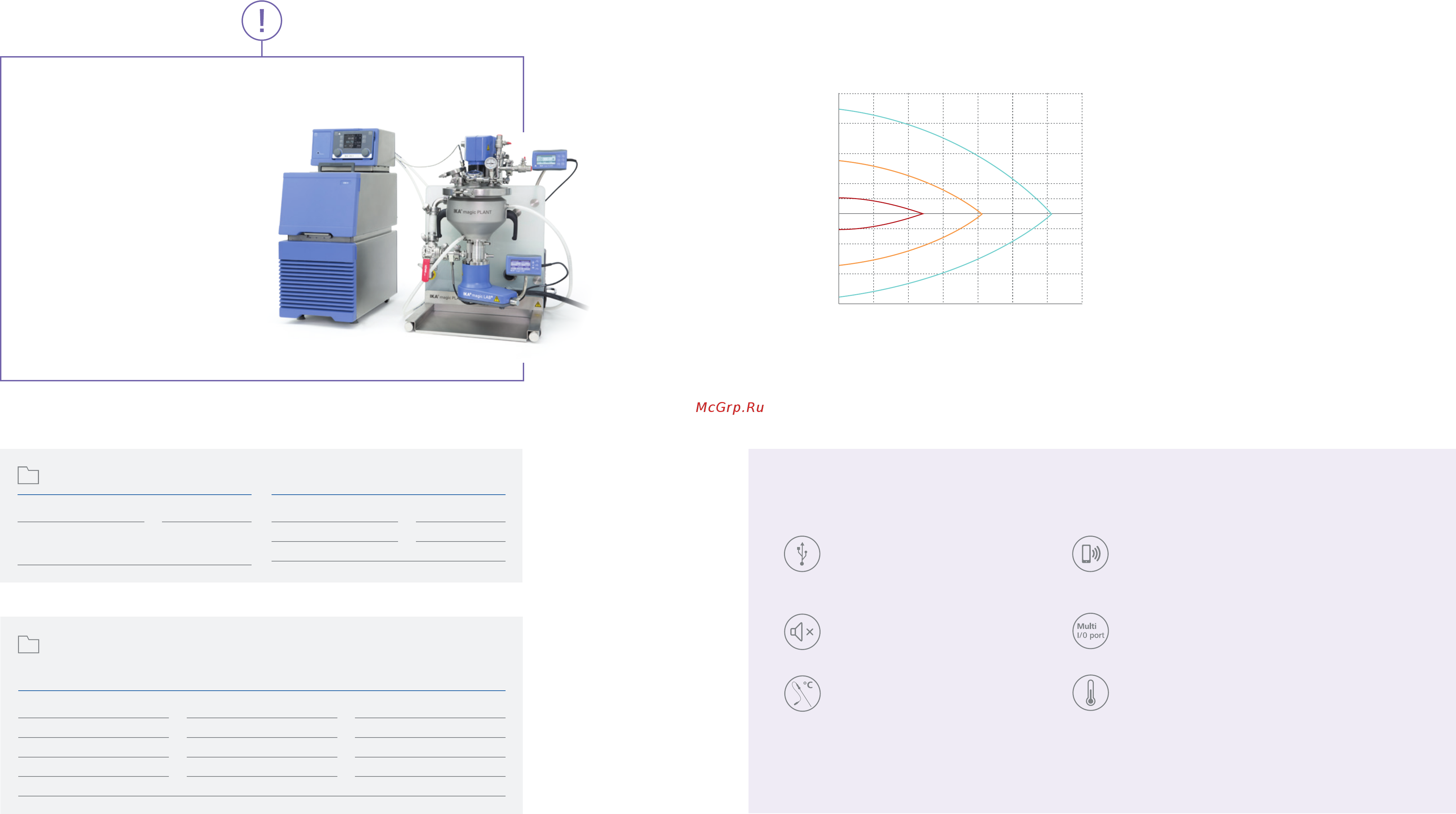

APPLICATION EXAMPLE
A typical field of application of the
combined heating and cooling circulators is
tempering process systems on laboratory or
pilot scales. In our example, the IKA magic
PLANT is combined with the inline disperser,
IKA magic LAB. First, the product is being
heated by the CBC 5 using the double-
walled IKA magic PLANT, then held at the
set temperature in the subsequent disperser
process with cooling function. The product
is then cooled to room temperature. The
external temperature sensor directly impacts
the temperature of the final product.
Pump curve: CBC 5 control & basic
Measurement in accordance with DIN 12876-2
with water at + 20 °C, closed pump circuit.
USB/RS 232 interfaces for connecting a
PC, using labworldsoft and enabling online
updates of device software.
Silent mode –
the fan only runs as needed.
CBC control – connection option of external
solenoid valves via multi-IO port.
CBC control – control accuracy. The
speed-regulated compressor provides a
temperature stability of up to ± 0.01 K.
Connector for external
PT 100 temperature probe.
CBC control – detachable WiCo
(wireless controller) for simple and safe
remote access from up to 10 m (30 ft.).
TECHNICAL DATA
/// CBC 5 basic, Ident. No. 0004165000 | CBC 5 control, Ident. No. 0004167000
Heat output (230 V) 2,500 W
Working temperature range
- 25 °C to + 200 °C
(- 30 °C possible
at 2,000 rpm)
Max. flow rate (at 0 bar) 31 l/m
Pump power (pressure) 0.61 bar
Pump power (suction) 0.45 bar
Temperature Cooling power at max. speed Cooling power at 3,200 rpm
+ 20 °C 350 W 400 W
+ 10 °C 320 W 370 W
0 °C 270 W 320 W
- 10 °C 190 W 240 W
- 20 °C 80 W 130 W
COOLING POWER
/// CBC 5 basic, Ident. No. 0004165000 | CBC 5 control, Ident. No. 0004167000
Flow rate [l/min]
Pressure/suction [bar]
0.5
0.7
0.3
0.1
- 0.1
- 0.3
- 0.5
0 5 10
2015 25
30 35
0
2,000 rpm
4,600 rpm3,200 rpm
32
33
