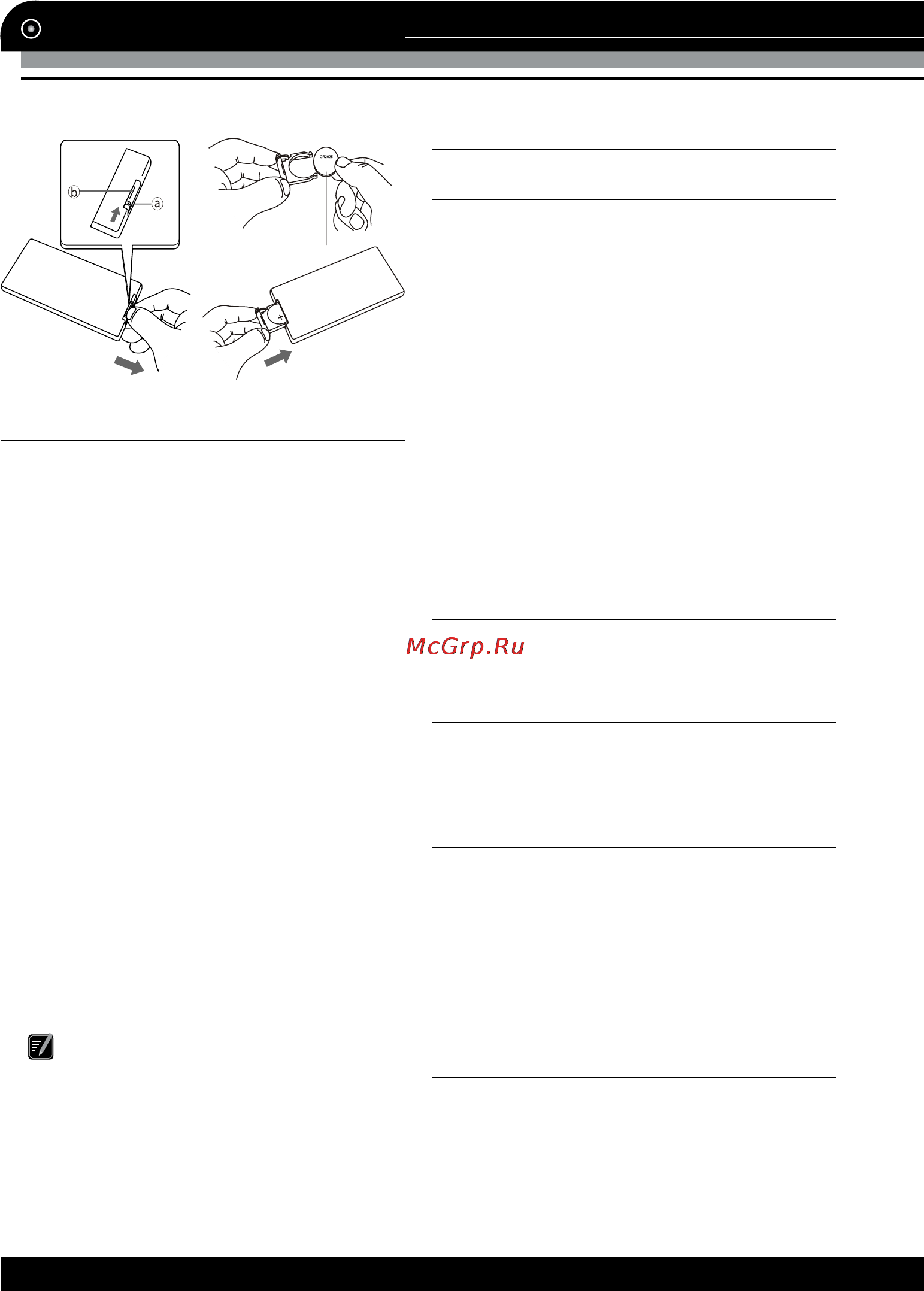

![Varta V-TV701 [4/13] Av input connection](/views2/1054693/page4/bg4.png)
4
Instruction Manual
www.varta-electronics.ru
Button functions
POWER button: Press this button to turn on
or off the unit.
MENU button: Press this button to display
the on-screen menu.
AV/TV button: Press this button to switch
between video sources TV and AV.
MUTE button: Press this button, sound
disappears; press it again or press V+/V-
buttons to resume a normal sound.
V-/V+ buttons on the RC (VOL+/VOL-
buttons on the unit): Press V- button to
decrease the volume. Press V+ button to
increase the volume. Press these buttons to
nabigate in the setup menu.
CH+/CH- buttons: Press CH+ button to
increase the number of TV channel. Press
CH- button to decrease the number of TV
channel. Press these buttons to nabigate in
the setup menu.
Number buttons: When the channel is a
one-digit figure, just press the corresponding
number button. If the channel is a two-digit
figure, you should press [-/--] button first to
show - - on the display screen before further
pressing the corresponding number buttons.
MODE button: Press this button to select
picture mode Standard/Light/Vivid/Soft/
Choice.
For proper operation of touch buttons
of the front panel, the contact area of your
finger with buttons sohuld be large enough.
INSTALLATION AND CONNECTION
Stand installation
• Connect the upper part of the stand
with the bottom of the stand by using long
bolt. Screw the lower washer to the long bolt
to fix the parts of the stand.
• Connect the threading hole on the rear
of the unit to the threading pin on the upper
part of the stand by rotating the fastening
washer counter-clockwise.
• Press the suction cup to a surface in the
car, then push the pressure valve down. Make
sure the stand is fixed properly to the surface.
• You can adjust the angle of the stand by
loosening the upper and loswer washers and
bending the assembly knots.
• To unmount the stand, lift the pressure
valve, then lift the plastic ear on the suction
cap.
Connection of the antenna
Plug the antenna into the Antenna in slot
situated on the rear panel of the unit.
Connection of earphone
Connect the headphone to the earphone
jack for private listening. The speakers will not
operate when headphones are connected.
Connection of power source
Connect one round end of attached AC/
DC adaptor or car adaptor to the power
source input socket and the other end to
the wall outlet at the suitable voltage. When
in house, use the AC/DC adaptor; for car
use, connect with the car adaptor (adaptors
included should be only used). Press POWER
button to turn on the unit.
AV input connection
Connect the AV cable as shown in the
picture below. After connection, switch the
unit to the AV mode.
