![Devilbiss AG362 AG362-C1-10 — удлинители для распылительных пистолетов: характеристики и применение [2/2]](/img/pdf.png)
Devilbiss AG362 AG362-C1-10 — удлинители для распылительных пистолетов: характеристики и применение [2/2]
Превью страниц
Страница 2 /
2
![Devilbiss AG362 AG362-C1-10 [2/2] Www carlisleft com](/views2/1547977/page2/bg2.png)
DEVILBISS SPRAY GUN EXTENSIONS
© DeVilbiss, Ransburg, MS, BGK and Binks are registered trademarks of Carlisle Fluid Technologies.
Models and specifications subject to change without notice. All rights reserved.
ARB - 06.16 - UK
3534
Sales and Service through our
Global Network of Distributors
Carlisle Fluid Technologies Locations
Americas: USA Mexico Brazil
Europe/Asia/Africa: United Kingdom France Germany Switzerland India
Pacific Rim: China Japan Australia
www.CarlisleFT.com
email: marketing@CarlisleFT.eu

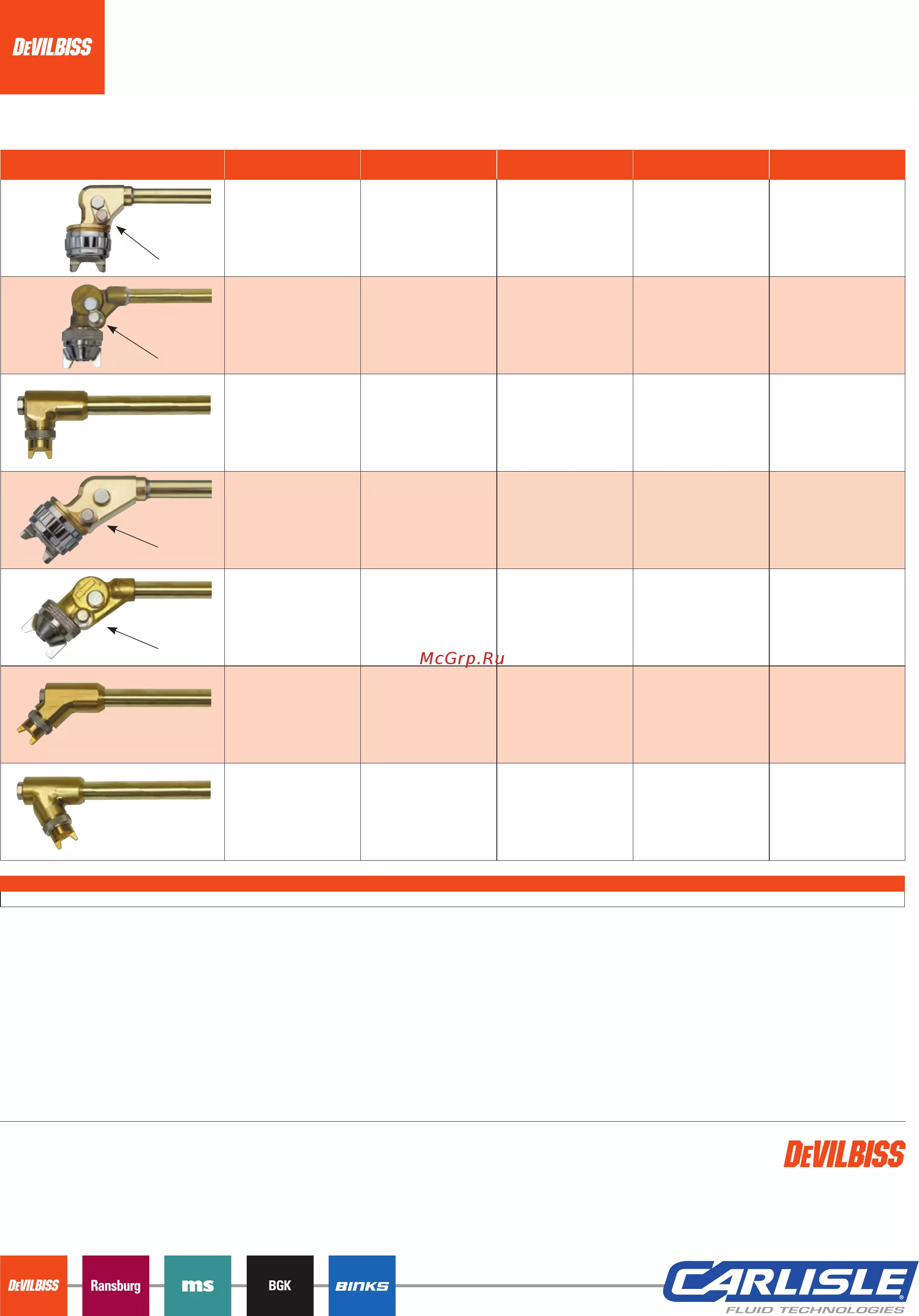

EXTENSION Type of spray
To fit Advance HD
part number
To fit AG-362
part number
Clearance diameter Comments
EB
90 degree fan spray
EXT362-EB-XX
XX = add length needed
in inches to complete part
number.
3
1
/2” (89mm) Supplied with PRO C2
conventional air cap
and 1.2 mm fluid tip.
To fit AG-362
automatic gun.*
EB
90 degree fan spray
EXTADV-EB-XX
XX = add length needed
in inches to complete part
number.
3” (76mm) Supplied with
63BSSx63PB set up.
Fluid tip 0.046” (1.2mm).
To fit Advance
conventional gun.*
EBX
90 degree fan spray
EXTADV-EBX-XX
XX = add length needed
in inches to complete part
number.
EXT362-EBX-XX
XX = add length needed
in inches to complete part
number.
1
7
/8” (48mm) Supplied with J2SS x
AA1 fan spray set up.
Fluid tip 0.043” (1.1 mm)
46-1042 round spray cap
(optional).
EN
45 degree fan spray
EXT362-EN-XX
XX = add length needed
in inches to complete part
number.
3” (76.2mm) Supplied with PRO C2
conventional air cap
and 1.2 mm fluid tip.
To fit AG-362
automatic gun.*
EN
45 degree fan spray
EXTADV-EN-XX
XX = add length needed
in inches to complete part
number.
2
5
/8” (67mm) Supplied with
63BSSx63PB set up.
Fluid tip 0.046” (1.2mm).
To fit Advance
conventional gun.*
ENX
45 degree fan spray
EXTADV-ENX-XX
XX = add length needed
in inches to complete part
number.
EXT362-ENX-XX
XX = add length needed
in inches to complete part
number.
1
3
/4” (44mm) Supplied with J2SS x
AA1 fan spray set up.
Fluid tip 0.043” (1.1 mm)
46-1042 round spray cap
(optional).
ERX
30 degree reverse
fan spray
EXTADV-ERX-XX
XX = add length needed
in inches to complete part
number.
EXT362-ERX-XX
XX = add length needed
in inches to complete part
number.
2” (51mm) Supplied with J2SS x
AA1 fan spray set up.
Fluid tip 0.046” (1.2 mm).
46-1042 round spray cap
(optional).
Extensions are for use on pressure feed applications only.
Length options 6” (15cm), 9” (23cm), 12” (31cm), 15” (38cm), 18” (46cm), 24” (61cm), 30” (76cm), 36” (91cm), 48” (122cm), 60” (152cm), 72” (183cm), 84” (213cm)
Length measurement (approximate) is taken from the gun fluid inlet to the tip of
the extension.
Extensions are complete with air cap, fluid tip, needle and air cap retaining ring.
Extensions do not include the spray gun.
All fluid tips are stainless steel except type SC which are chrome plated brass
and SA are plated steel.
To order a spray gun for the extension use the part numbers below.
Bare Spray gun’s exclude needle, air cap, fluid tip and retaining ring.
– Advance conventional gun ADV-P000-00
– AG-362 conventional gun 362-000-00
Note: Extensions are “made to order” and therefore cannot be returned for credit.
Fan adjuster
Fan adjuster
Fan adjuster
Fan adjuster
Содержание
- The devilbiss extension range is manufactured from brass with stainless steel needles as standard they are available for advance hd manual and ag 362 automatic pressure spray guns when ordering ensure the part number for the model is completed with the required length in inches other lengths and flexible extensions are available upon request p.1
- Devilbiss spray gun extensions p.1
- Carlisleft com p.1
- A wide range of devilbiss extensions are available for those difficult to reach applications p.1
- Www carlisleft com p.2
- To order a spray gun for the extension use the part numbers below bare spray gun s exclude needle air cap fluid tip and retaining ring advance conventional gun adv p000 00 p.2
- Sales and service through our global network of distributors p.2
- Pacific rim china japan australia p.2
- Length measurement approximate is taken from the gun fluid inlet to the tip of the extension extensions are complete with air cap fluid tip needle and air cap retaining ring extensions do not include the spray gun all fluid tips are stainless steel except type sc which are chrome plated brass and sa are plated steel p.2
- Europe asia africa united kingdom france germany switzerland india p.2
- Email marketing carlisleft eu p.2
- Devilbiss spray gun extensions p.2
- Carlisle fluid technologies locations p.2
- Americas usa mexico brazil p.2
- Ag 362 conventional gun ag 362 conventional gun 362 000 00 p.2
Похожие устройства
-
Devilbiss AG362 AG362-C1-10Руководство по техническому обслуживанию -
Devilbiss AG362 AG362-C1-10Информационный буклет -
Devilbiss Cobra 2 CBA2-430-10Инструкция по эксплуатации -
Binks Mach 1A HVLP 6203-1204-4Инструкция по эксплуатации -
Carver PPG-8000Инструкция к устройству -
Carver PPG-6500Инструкция по работе
-
Sturm RH2512MРуководство по работе с устройством -
CEM DT-156Инструкция по работе -
Ada tempro 300Инструкция по применению -
Milwaukee WCE 65Руководство по работе с устройством -
Milwaukee WCE 30Инструкция к устройству -
WWQ NB-1500GMИнструкция по применению
Изучите разнообразие удлинителей для распылительных пистолетов, их характеристики и применение. Идеально подходят для различных распылительных задач и давления.
