Your Life, our Quality. Worldwide. 21 3D SERIES
The contents of this publication must not be regarded as binding. EBARA Pumps Europe S.p.A. reserves the right to effect any modification it deems necessary, without prior notice.
3D SERIES
centrifugal pumps close coupled and standardized en 733

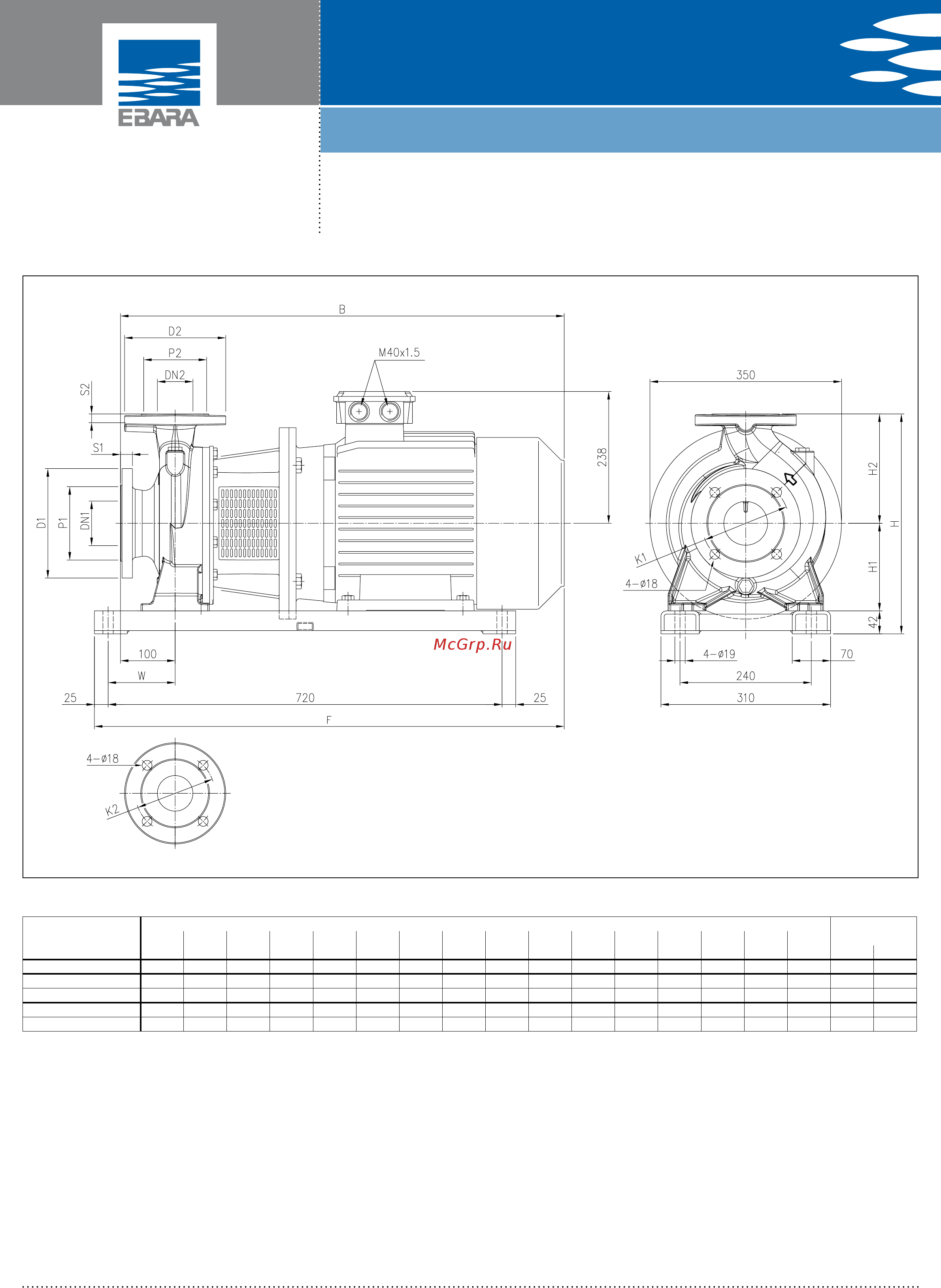

DIMENSIONS 3DS SERIES 40, 50, 65 2 Poles
DIMENSIONAL TABLE
Model Dimensions [mm]
Weight
[kg]
DN1 P1 K1 D1 S1 DN2 P2 K2 D2 S2 H H1 H2 W B F
Ø
Ø Ø Ø
Ø
Ø Ø Ø [*]
3DS40-200/11 65 122 145 185 20 40 88 110 150 18 382 160 180 110 796 833 120,0 130,8
3DS50-200/11 65 122 145 185 20 50 102 125 165 20 402 160 200 110 796 833 120,0 130,8
3DS50-200/15 65 122 145 185 20 50 102 125 165 20 402 160 200 110 796 833 150,0 166,9
3DS65-160/11 80 138 160 200 22 65 115 145 185 20 402 160 200 123 806 846 96,0 106,8
3DS65-160/15 80 138 160 200 22 65 115 145 185 20 402 160 200 123 806 846 126,0 142,9
[*]=IE3motorsonly
