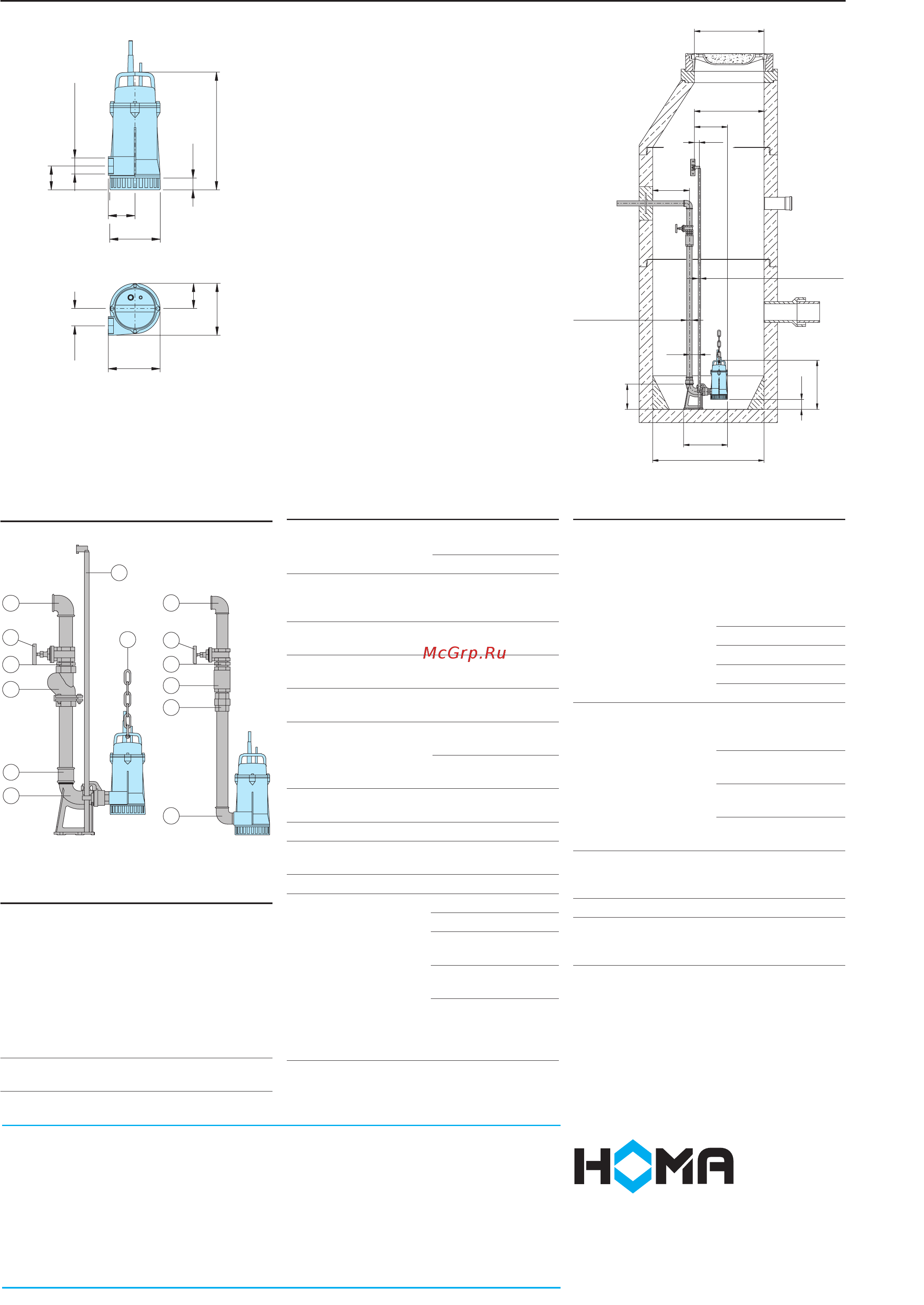

Dimensions and Installations
394
Ø1000
89
441
225
90
330
Pipe
1
/
2
" ISO
45
296
625
Ø625
Pipe
1
/
2
" ISO
35
352
71
BSP 1
1
/
2
" F
Ø151
155
75
155
80
52
9
10
5
6
8
1
4
5
6
7
7
8
2
3
Part Description Dimension Part No.
Steel galvanized 5 mm dia. 2800350
lifting chain
Steel galvanized shackle Size. 1 2801380
Galvanized double BSP 2“ F 2109102
socket BSP 2“ Fx 2102210
BSP 1
1
/ 2
“ F
Cast iron swing check BSP 1
1
/ 2“ F 2212902
valve BSP 2“ F 2212903
Galvanized double BSP 1
1
/ 2“ M 2009020
nipple BSP 2“ M 2009018
Bronze gate valve BSP 1
1
/ 2“ F 2216015
BSP 2“ F 2216020
90° galvanized elbow BSP 1
1
/ 2“ F 2113605
BSP 2“ F 2113606
T-piece for twin pump BSP 1
1
/ 2“ F 2114302
arrangement BSP 2“ F 2114306
90° galvanized elbow BSP1
1
/ 2“F/M 2111505
BSP 2”F/M 2111506
Galvanized pipe union BSP 1
1
/2“F/M2114305
Brass STA hose BSP 1
1
/ 2“ M 2001513
coupling
STORZ-fixed coupling C-BSP 1
1
/ 2
“M2010003
PVC-hose, per m 1
1
/ 2“ 2621500
Reinforced hose, per m 50 mm dia. 2632050
STORZ-hose coupling C-38 dia. 2013002
with spigot C-52 dia. 2013003
Hose bands 1
1
/ 2“ 2304854
2“ 2306009
Synthetic pressure hose 10 m 2611310
with rubber lining 15 m 2611315
and couplings, C-52 dia. 20 m 2611320
30 m 2611330
Part Description Dimension Part No.
Auto-coupling system
type KK 50/R 1
1
/2“
with: 8604000
– Cast iron auto-
coupling with DN 50
flange and thread BSP 1
1
/ 2“F
– Cast iron flanged
pump coupling BSP 1
1
/ 2“ M
– Cast iron upper slide BSP
1
/ 2“
rail bracket
Steel galvanized
1
/ 2“ 2190085
guide rail, pair, per m
Accessories
Wet well installation
with auto-coupling system.
Permanent installation utilising a submerged
auto-coupling guide rail system for automatic
connection and disconnection of the pump from
the pipework from outside the sump. Applicable
for single or multi pump stations.
Advantages: Little space requirement, easy
pump service and maintenance.
CH 406, CH 412
Part Description Type Part No.
Level device for auto-
matic operation (replace
the standard control box),
with overload protection,
manual-off-auto switch
without floatswitch
(see below) for types:
– CH 406 W WZ 19-04 1924130
– CH 412 W WZ 19-06 1924135
– CH 406 D DZ 12-R02DR 1924100
– CH 412 D DZ 12-R03DR 1924105
Floatswitch for level
device type WZ/DZ
(respectively 2 floatswitches)
– standard model MB 1465710
length 10 m
– oil resistant model BO 1466545
length 10 m
– acid resistant model BS 1466548
length 10 m
Counterweight
for floatswitch
(2 for each floatswitch) 1466600
Floatswitch bracket 7321405
Control panels for single On request
or twin pump stations
for automatic operation
