Clarion CZ100ER [20/25] Cautions on installation

English

4) Cautions on Installation

1. Prepare all articles necessary for

installing the source unit before

starting.

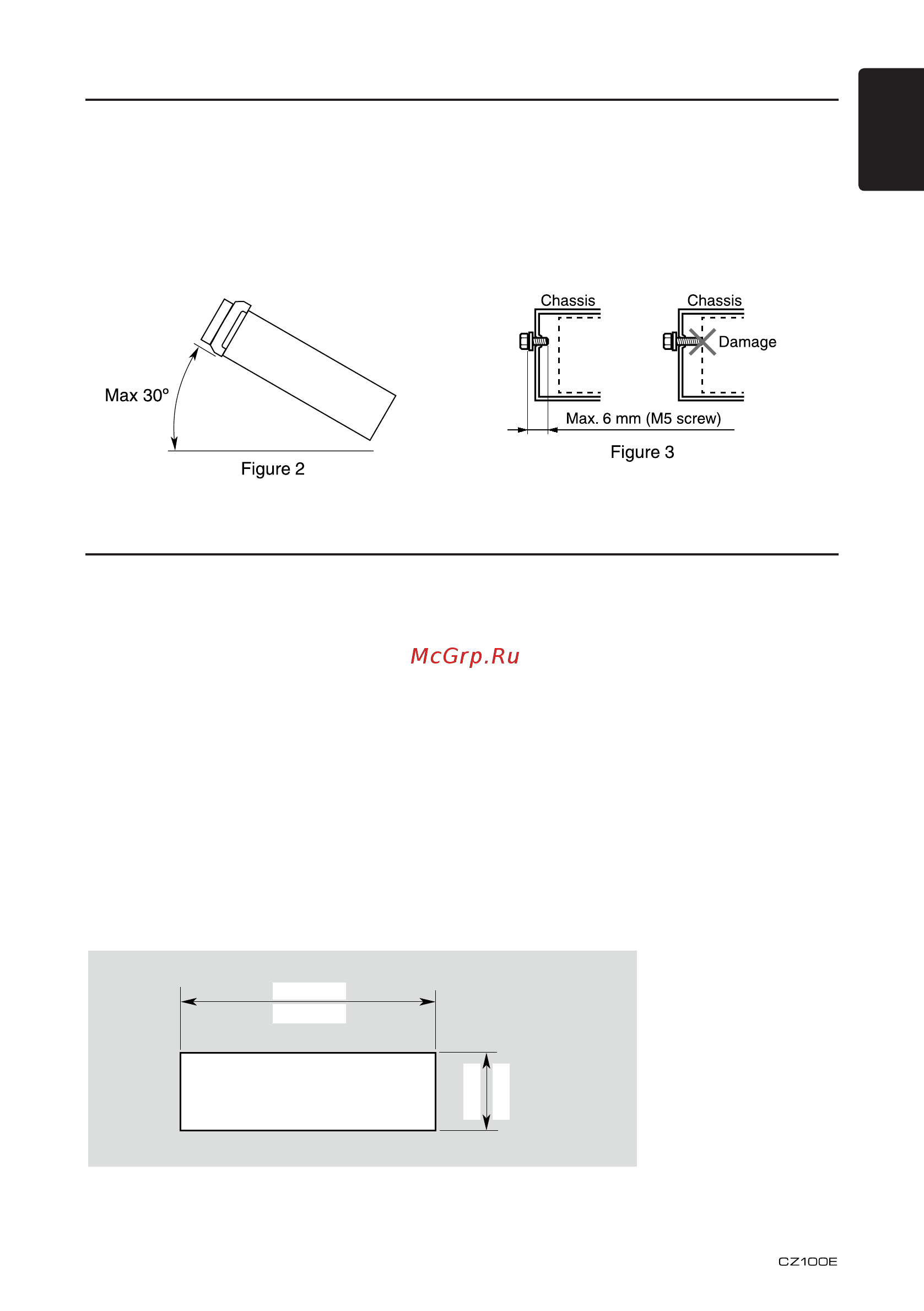

2. Install the unit within 30° of the

horizontal plane. (Figure 2)

3. If you have to do any work on the car

body, such as drilling holes, consult

your car dealer beforehand.

4. Use the enclosed screws for

installation.

Using other screws can cause

damage.

(Figure 3)

5) Installing the Source Unit

1. Place the mounting bracket into the instrument panel, use a screwdriver to bend

each stopper of the universal mounting bracket inward, then secure the stopper.

2. Wire as shown in Section 7) .

3. Insert the source unit into the mounting bracket until it locks.

4. Take care of the top and bottom of the outer escutcheon and mount it so that all

the hooks are locked.

Notes:

1. Some car models require special mounting kits for proper installation.

Consult your Clarion dealer for details.

2. Fasten the front stopper securely to prevent the source unit from coming loose.

•Consoleopeningdimensions

(182 mm)

7-3/16"

2-1/8"

Hole

53 mm
