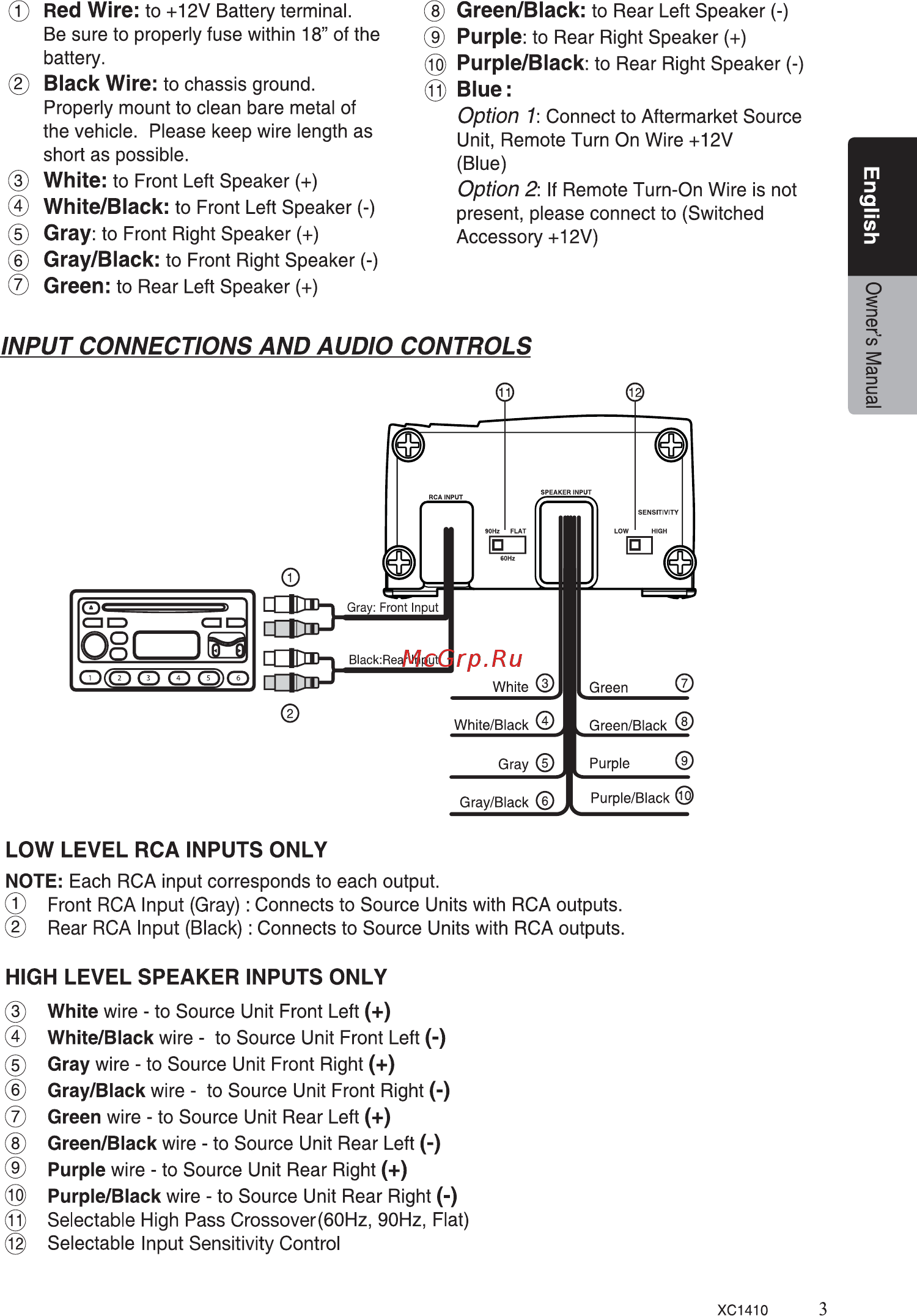

T Red Wire to 12V Battery terminal Be sure to properly fuse within 18 of the battery g Black Wire to chassis ground Properly mount to clean bare metal of the vehicle Please keep wire length as short as possible 3 White to Front Left Speaker Ci White Black to Front Left Speaker Option 1 Connect to Aftermarket Source Unit Remote Turn On Wire 12V Blue Option 2 If Remote Turn On Wire is not present please connect to Switched Accessory 12V Owner s Manual 5 Gray to Front Right Speaker Gray Black to Front Right Speaker 7 Green to Rear Left Speaker 8 Green Black to Rear Left Speaker 9 Purple to Rear Right Speaker ig Purple Black to Rear Right Speaker Hi Blue INPUT CONNECTIONS AND AUDIO CONTROLS LOW LEVEL RCA INPUTS ONLY NOTE Each RCA input corresponds to each output i ij Front RCA Input Gray Connects to Source Units with RCA outputs Rear RCA Input Black Connects to Source Units with RCA outputs HIGH LEVEL SPEAKER INPUTS ONLY 3 White wire to Source Unit Front Left White Black wire to Source Unit Front Left 5 Gray wire to Source Unit Front Right 6 Gray Black wire to Source Unit Front Right 7 Green wire to Source Unit Rear Left Green Black wire to Source Unit Rear Left Purple wire to Source Unit Rear Right 10 Purple Black wire to Source Unit Rear Right H Selectable High Pass Crossover 60Hz 90Hz Flat J2 Selectable Input Sensitivity Control XC1410 3
