Clarion CJ7100E [12/16] Connections
![Clarion CJ7100E [12/16] Connections](/views2/1552028/page12/bgc.png)
12
English

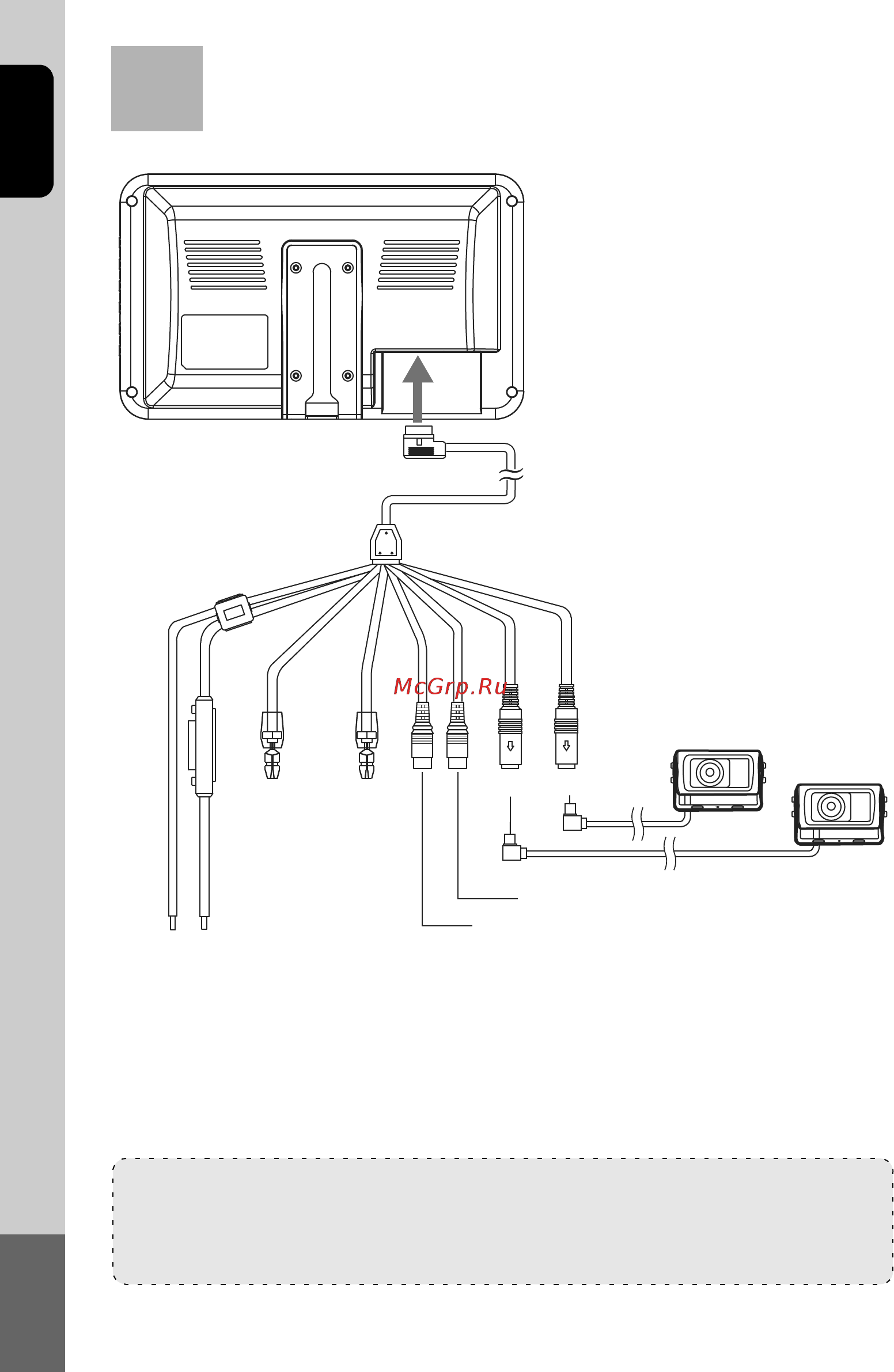

7. Connections
*3 *3
*2
*2
*1
*1
GREEN
(CAMERA2)
ORANGE
(CAMERA1)
BLACK
GROUND
RED
ACCESSORY(ACC)
DC12V
/24V
CAMERA1
CAMERA1
(Sold Separately)
CAMERA2
(Sold Separately)
*1
Use a Clarion camera.
*2
A relay cable, sold separately, is required
for connecting the camera.
*3
Use tape to keep the connection between
the monitor cable and the camera relay
cable secure.
MONITOR CABLE
CAMERA2
RELAY CABLE
YELLOW
VIDEO INPUT
WHITE
AUDIO INPUT
Please be sure to connect when you connect the camera.
ORANGE (CAMERA-1, priority) Standby + (for rear-view)
Connect this cable to “+” of back gear lamp.
GREEN (CAMERA-2) Standby + (for side-view)
Connect this cable to “+” of turn signal lamp.
CJ-7100E-A.book 12 ページ ２０１２年９月１８日 火曜日 午後１時５５分
