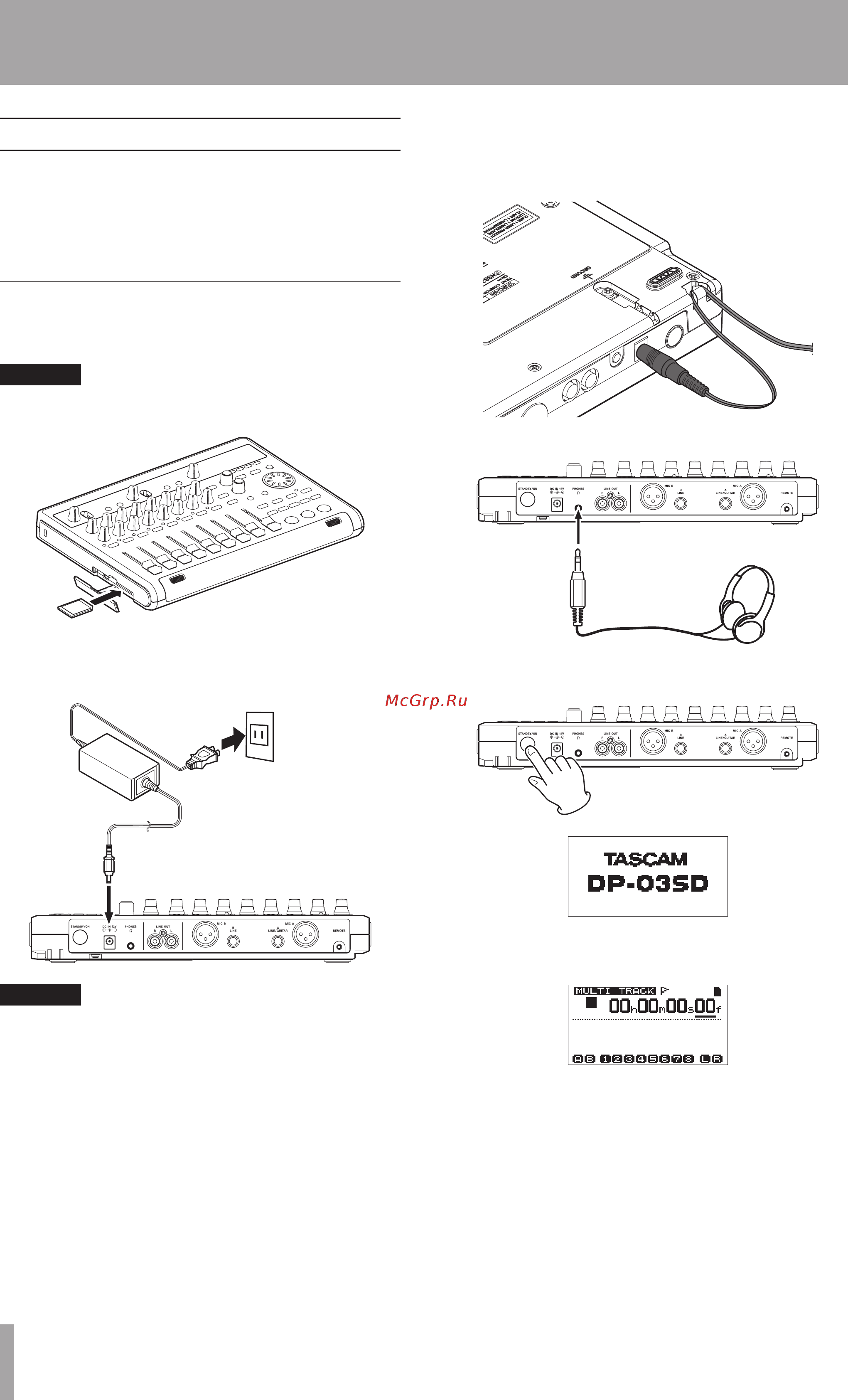

8 TASCAM DP-03SD
2 – Quick Start Guides
Playback and mixing
In this section, we will play back the demo song on the included
SD card.
When this unit is purchased new, the SD card with the demo
song on it is already installed in the unit, but we will start by
explaining how to insert an SD card using the procedures below.
Preparations
1 Open the SD card slot cover on the left side panel and insert
the included SD card into the slot.
CAUTION
Be careful not to forcibly insert the card in the wrong
direction. Doing so could damage the slot or the card.
2 After inserting the SD card, close the card slot cover.
3 Connect the included AC adaptor (TASCAM PS-1225L) to the
DC IN 12V connector on the rear panel.
AC outlet
TASCAM
PS-1225L
DC plug
CAUTION
Never use any adaptor other than the TASCAM PS-1225L
AC adaptor (included), because it is designed for the power
requirements of this unit. Use of a different adaptor could
cause malfunction, fire or electric shock.
There is a hook for holding the AC adaptor cord in place
(cord holder) on the bottom panel. When using the adaptor,
wrap the cord around this hook to prevent it from being
disconnected during use.
4 Connect headphones to the PHONES jack on the rear panel.
Headphones
5 Press the STANDBY/ON button on the rear panel to turn the
power ON.
Startup Screen
After the unit starts the Home Screen appears on the display.
Home Screen
