Tascam RC-SS20 [4/8] Names and functions of parts
![Tascam RC-SS20 [4/8] Names and functions of parts](/views2/1553292/page4/bg4.png)

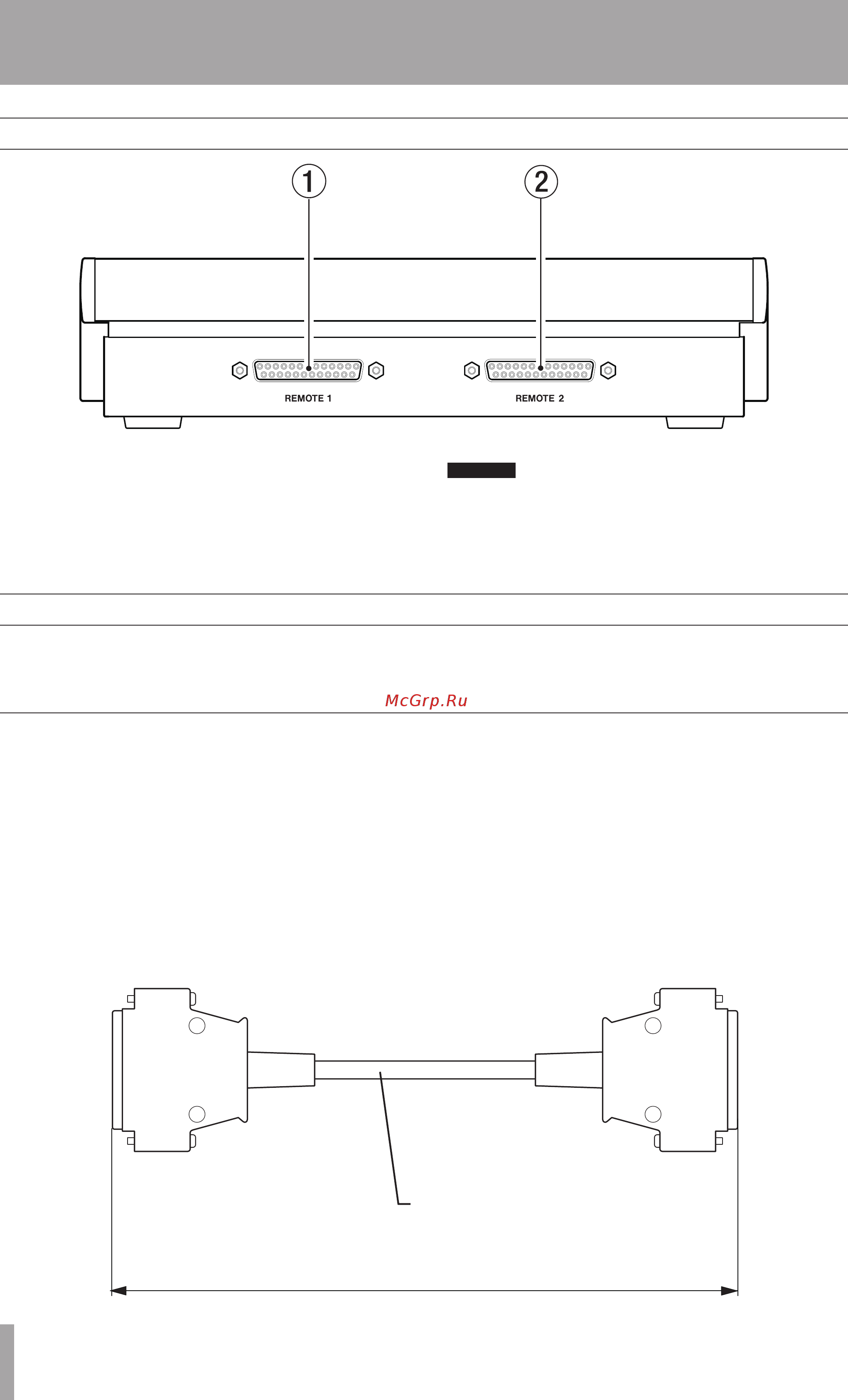

4 TASCAM RC-SS20
2–Names and Functions of Parts
Rear panel
Connection cables
Cable specifications
D-SUB25
Male (Plug)
D-SUB25 Male (Plug)
UL2464 AWG24
Screw
：
#4-40 (inch)
Screw
：
#4-40 (inch)
Ground Shield
(Connect to Connector Frame)
L = 10 m or less
1 REMOTE 1 connector
Connect an SS-R1 or SS-CDR1..
2
REMOTE 2 connector
Connect an HD-R1.
CAUTION
Do not connect devices to both the REMOTE 1 connec-•
tor and the REMOTE 2 connector at the same time.
Turn OFF the power of the SS-R1, SS-CDR1 or HD-R1 •
unit before connecting or disconnecting the connection
cable. Connecting or disconnecting the cable while the
power is ON could cause malfunction.
The PW-SS20 connection cable designed for this unit
is available for purchase separately. Please inquire at a
retailshoporTASCAMsalesofce.
If you choose to make your own cable, please make
it with straight wiring between D-SUB 25-pin
connectorsbasedonthefollowingspecications.
D-SUB connector
Case: Hirose Electric HDB-CTH1 (4-40) or equivalent
Plug: Hirose Electric HDBB-25P (05) or equivalent
Cable UL2464 AWG24
Hitachi Cable UL2464-SB 25P x 24AWG(7/0.203) LF
or equivalent
Length
10 m or less
Wiring
Straight connections for all pins 1–25
