12
TASCAM US-20x20
r Channel faders
t Channel level meters
y Fader level display areas
u LINK buttons
i Channel notes
o REVERB button
p RETURN knob and indicator
a AUX MASTER 1/REVERB knob and indicator
s AUX MASTER 2–4 knobs and indicators
d STEREO MASTER fader
f STEREO MASTER level meters
g STEREO MASTER fader level display areas
For details about other settings, see “MIXER page” in “6 – Using
the Settings Panel” of the Reference Manual.
Making settings on the INTERFACE screen

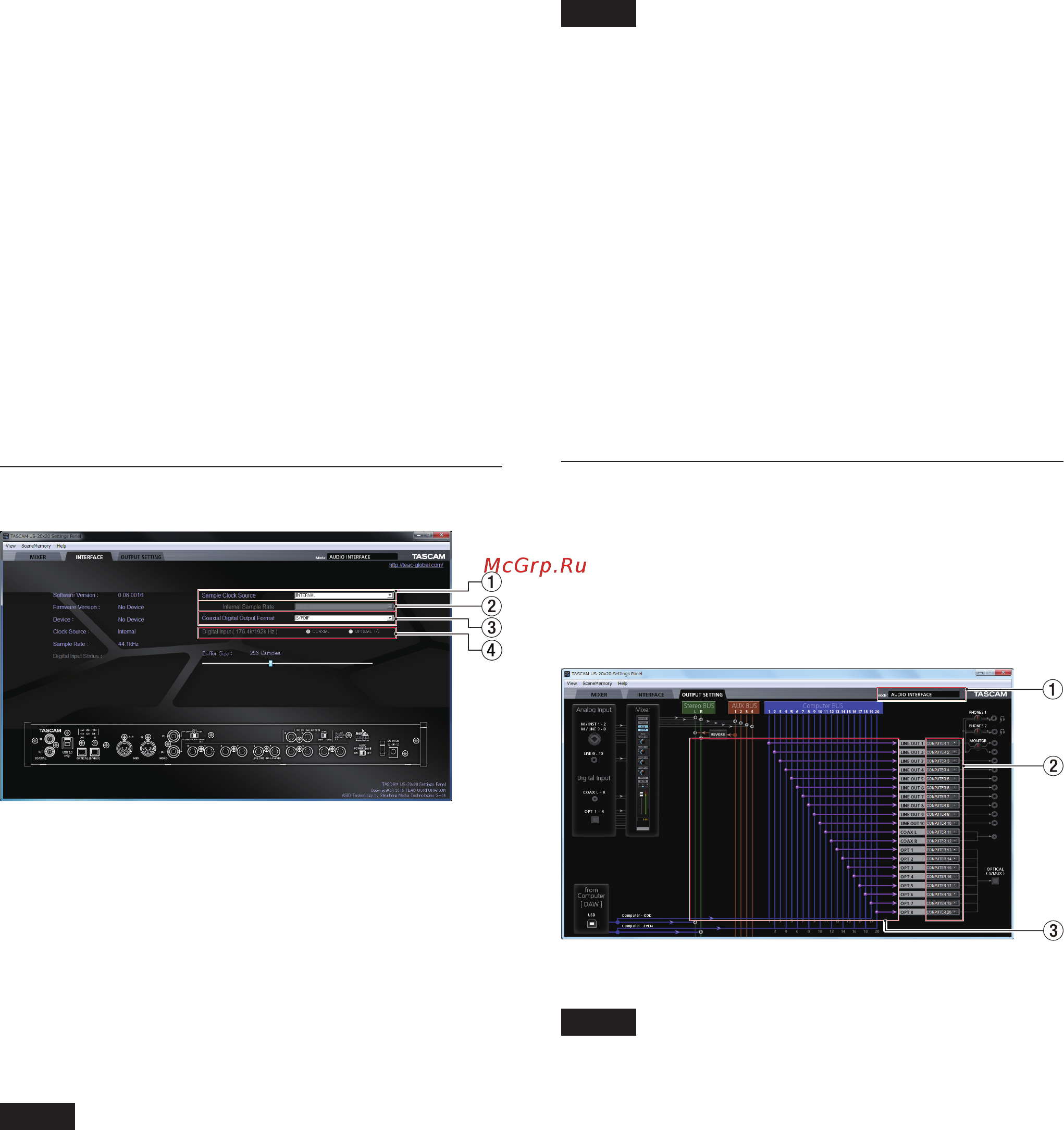

Windows Settings Panel “INTERFACE” page
For details about other settings, see “INTERFACE page” in “6 –
Using the Settings Panel” of the Reference Manual. (See “Note
about the Reference Manual” on page 5.)
8
Setting the sample clock source
1. Click the “INTERFACE” tab on the Settings Panel to open the
“INTERFACE” page.
2. Click Sample Clock Source (1) on the “INTERFACE” page to
set the sample clock source.
Options: COAXIAL, OPTICAL, WORD, INTERNAL
NOTE
When set to “COAXIAL”, “OPTICAL” or “WORD”, if no signal is
input into the corresponding input jack or the unit becomes
unable to synchronize, “unlock” will appear as the “Digital
Input Status” in the status display area and the unit’s MODE
indicator will blink.
8
Setting the sampling frequency used when set to
INTERNAL
Set the Internal Sample Rate item (2) to the sampling
frequency to be used when the Sample Clock Source (1) is set
to INTERNAL.
1. Click the “INTERFACE” tab on the Settings Panel to open the
“INTERFACE” page.
2. Click the Internal Sample Rate item (2) on the “INTERFACE”
page and set the sampling frequency of the unit’s internal
clock.
Options: 44.1kHz, 48kHz, 88.2kHz, 96kHz, 176.4kHz,
192kHz
NOTE
When the unit is in MIC PRE or AUDIO I/F operation mode,
you cannot set the Internal Sample Rate.
8
Setting the digital output format
1. Click the “INTERFACE” tab on the Settings Panel to open the
“INTERFACE” page.
2. Click Coaxial Digital Output Format (2) on the “INTERFACE”
page to set the digital output format.
Options: S/PDIF, AES/EBU
8
Setting the digital input destination (only when
176.4kHz/192kHz)
1. Click the “INTERFACE” tab on the Settings Panel to open the
“INTERFACE” page.
2. Click the Digital Input (176.4k/192kHz) item (4) on the
“INTERFACE” page and set the digital input destination.
Options: COAXIAL, OPTICAL 1/2
Making settings on the OUTPUT SETTING
screen
When the unit is in “AUDIO I/F” or “MIXER” mode, you can set the
signals output to each output jack on the “OUTPUT SETTING”
page.
For details about each operation mode, see (See “Overview of
operation modes” on page 14.)
“AUDIO I/F” mode example
NOTE
•
When the unit is in MIC PRE mode, you cannot change
settings in the output selection area on the “OUTPUT
SETTING” page.
•
For details about other settings, see “OUTPUT SETTING
page” in “6 – Using the Settings Panel” of the Reference
Manual. (See “Note about the Reference Manual” on page
5.)
