Cooler Master Stryker SE (SGC-5000W-KWN2) [15/22] I o function panel installation guide

14

I/O Function panel installation guide

Please refer to the illustrations in the motherboard user manual that describe USB 3.0, USB 2.0 and

audio connector support. The motherboard connectors must match the included front panel cables in this case.

Attempting to install anything other than matching connectors may result in damage and loss of function.

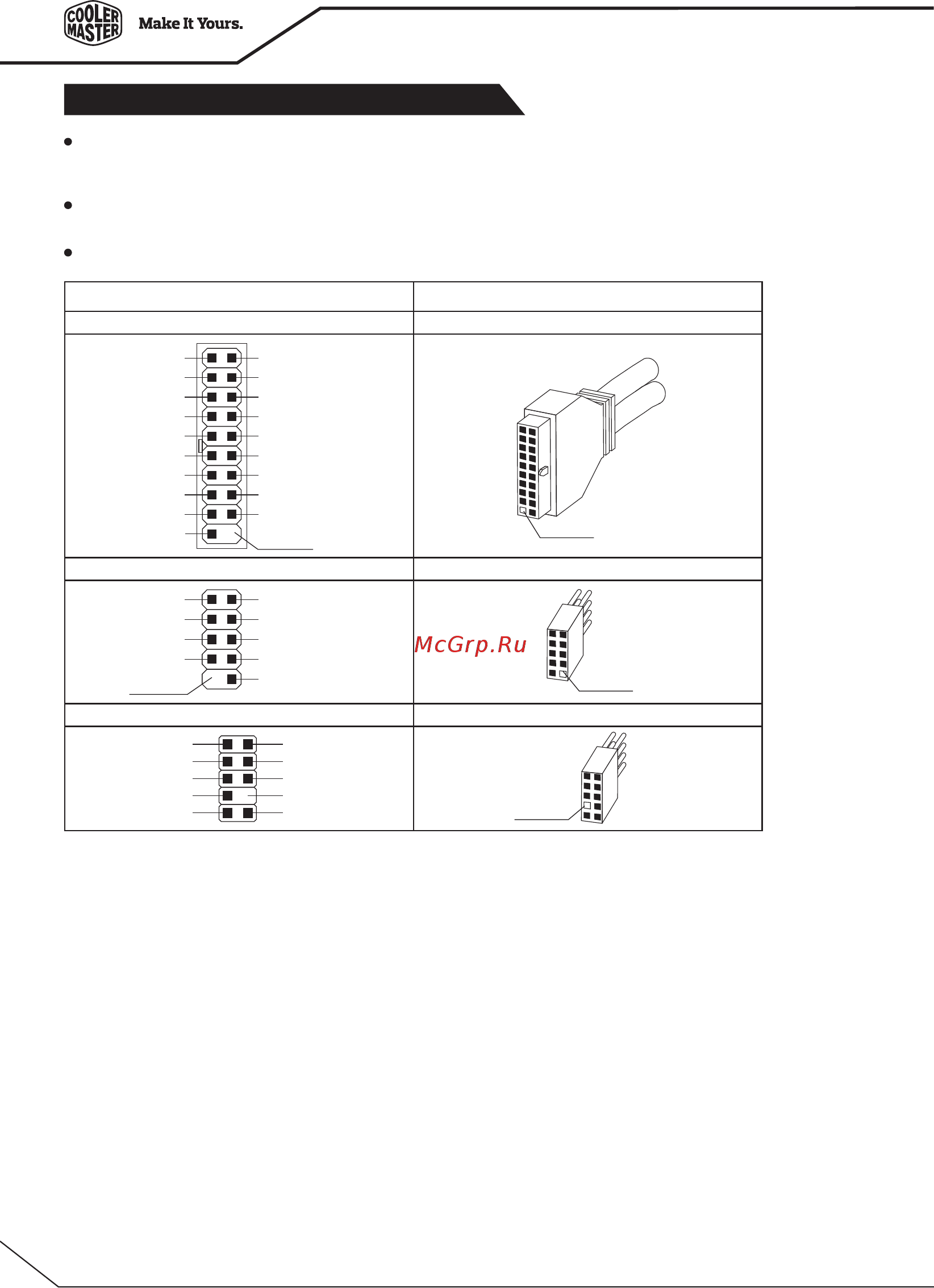

The following illustration is a diagram showing the I/O connectors.

On some motherboards, the connectors forUSB 3.0, USB 2.0, Audio are not the same as the drawing below.

Please check with your motherboard manual before installing.

Azalia (Intel High Definition Audio) HD Connector

PORT1L

PORT1R

PORT2R

SENSE_SEND

PORT2L

No Pin

No Pin

USB 3.0 connector USB 3.0 connector

IntA_P2_D+

IntA_P2_D-

GND

IntA_P2_SSTX+

IntA_P2_SSTX-

GND

IntA_P2_SSRX+

IntA_P2_SSRX-

Vbus

IntA_P1_SSTX-

IntA_P1_SSRX+

IntA_P1_SSRX-

Vbus

Case ConnectorMotherboard

No Pin
